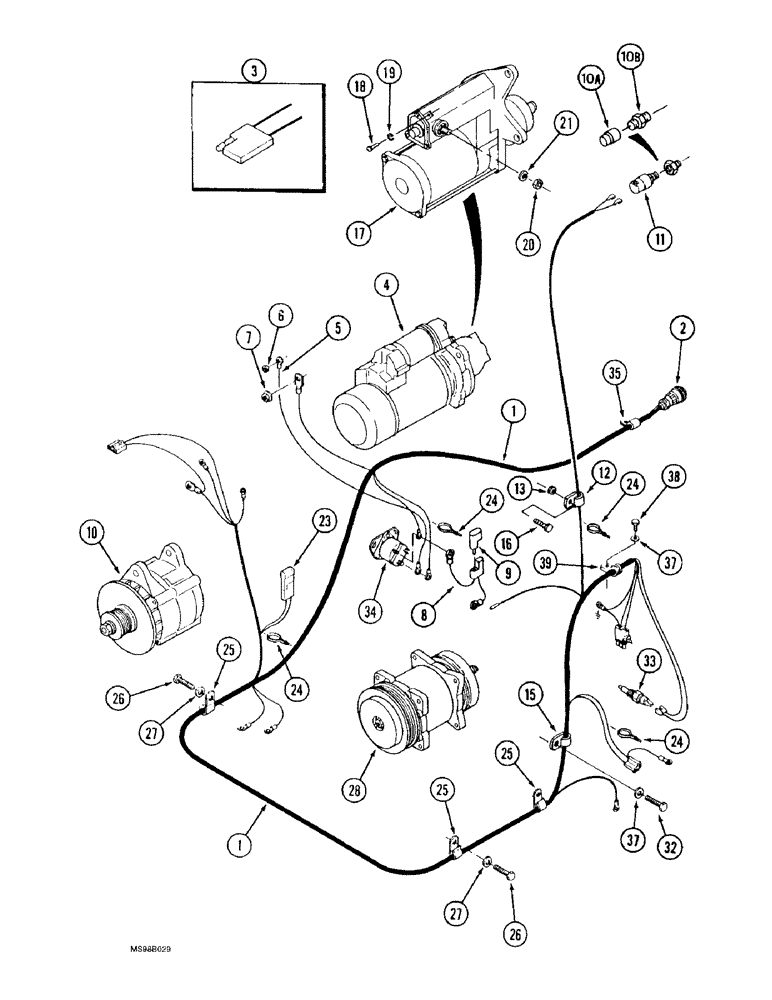

Запчасти Case IH 9330 (4-014) - ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

1

60-7164T2

HARNESS

HARNESS ASSEMBLY - engine, Includes: Ref. 2 and 3

1шт.

2

60-6128T2

RING, SNAP

RING SNAP RING - coupling, socket

1шт.

3

60-6639T1

DIODE ELEMENT

RECEPTACLE - diode, alternator connector

1шт.

4

A187728

STARTING MOTOR

STARTER ASSEMBLY - engine, parts list Figures 4-32 and 4-34, Serial Range: -JEE0069097

1шт.

4

AR187728

REMAN-STARTER

Remanufactured Starter

1шт.

4

AC187728

CORE-STARTER

Return Part Number

1шт.

4

A187728GV

STARTER MOTOR

Value

1шт.

5

20-2242T1

ELECTRICAL WIRE

Solenoid to switch

1шт.

6

193-1000

NUT,Keps, w/LW,#10-32

NUT - hex, with external tooth lock washer, No. 10 NF, use with Ref. 4 A187728 starter

1шт.

7

131-943

FLANGE NUT,Flg, 1/2"-13, G5

NUT, Flg, 1/2"-13, G5

1шт.

8

60-7238T1

HARNESS

HARNESS - diode

1шт.

9

22-738

DIODE

DIODE - electrical

1шт.

10

1987560C1

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, 125 amp, parts list Figure 4-40

1шт.

10

1987560C1GV

ALTERNATOR

Value, 12V, 125A

1шт.

10

1987560C1R

REMAN-ALTERNATOR

12 volt 125 ampere

1шт.

10

1987560C1C

CORE-ALTERNATOR

Return Part Number

1шт.

10a

292950A1

SWITCH

SWITCH - restriction, air cleaner, replaces 1983233C1 switch, Ref. 11, Includes: Ref. 10B

1шт.

10b

D36264

FITTING

ADAPTER - air restriction indicator

1шт.

11

1983233C1

RESTRICTION SWITCH

SWITCH - restriction, air cleaner, replaced by 292950A1 switch, Ref. 10A

1шт.

12

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

CLAMP, , P-type 1/2", Insul, 3/8" Bolt

1шт.

13

425-105

NUT,5/16"-18, G5

NUT - hex, 5/16 inch NC

1шт.

14

221-1335

COUPLING,Pipe, 1/8" NPT

COUPLING, , if used Pipe, 1/8" NPT

1шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

CLAMP, , P-type 3/4", Insul, 3/8" Bolt

1шт.

16

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

BOLT - hex, 5/16 NC x 1 inch, grade 8

1шт.

17

193432A1

STARTING MOTOR

STARTER ASSEMBLY - engine, parts list Figure 4-36, Start Serial: JEE0069097

1шт.

17

193432A2R

REMAN-STARTER,12V, 4.8kW

Remanufactured Starter 12 volt, 4.0 KW

1шт.

17

193432A2C

CORE-STARTER,12V, 4.8kW

Return Part Number, Starter 12 volt, 4.0KW

1шт.

18

258820A1

SCREW

SCREW - special, 5 x 8 mm

1шт.

19

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

1шт.

20

829-1412

NUT,M12, Cl 10.9

NUT - hex, 12 mm - 1.75, class 10

1шт.

21

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

23

60-6251T1

DIODE

DIODE - electrical

1шт.

24

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP STRAP - tie, 7 inch

1шт.

25

358986R1

CABLE CLIP

CLAMP - P-type, harness

3шт.

26

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 12 - 1.75 x 25 mm

2шт.

27

495-21050

WASHER,7/16"

WASHER - flat, 1/2 x 1-1/4 x 5/64 inch

2шт.

28

1999755C2

COMPRESSOR

COMPRESSOR ASSEMBLY - air conditioning, parts list Figure 9-98

1шт.

28

86993462R

REMAN-COMPRESSOR

9310, 9330 both (6/95-8/00); Reman For New P/N 1999755C2

1шт.

28

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

28

48017123R

REMAN-A/C COMP KIT

Reman A/C Compressor, Receiver-Dryer, Valve Kit

1шт.

28

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

28

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

28

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

32

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

BOLT - hex, 5/16 NC x 3/4 inch, grade 8

1шт.

33

20-1676T2

TEMPERATURE SENDER

SWITCH - temperature, sender

1шт.

178149A1

SOLENOID SWITCH

KIT - solenoid switch, with barrier and cover, see Figure 4-20 for complete kit, Includes: Ref. 34

1шт.

34

183038A1

SOLENOID

SWITCH - solenoid with cover, magnetic relay, order 178149A1 switch kit

1шт.

35

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

CLAMP, 3/8", Insul, 3/8" Bolt

1шт.

37

495-11034

WASHER,5/16", SAE

WASHER, 5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

38

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 8 - 1.25 x 16 mm

1шт.

39

362126R1

CLIP

CLAMP - engine harness

1шт.
