(3-004) - FUEL INJECTION SYSTEM, 6TA-830 EMISSIONS CERTIFIED ENGINE, 9330 TRACTOR ONLY, S/N JEE0036501 & AFTER

Запчасти Case IH 9330 (3-004) - FUEL INJECTION SYSTEM, 6TA-830 EMISSIONS CERTIFIED ENGINE, 9330 TRACTOR ONLY, S/N JEE0036501 & AFTER (03) - FUEL SYSTEM

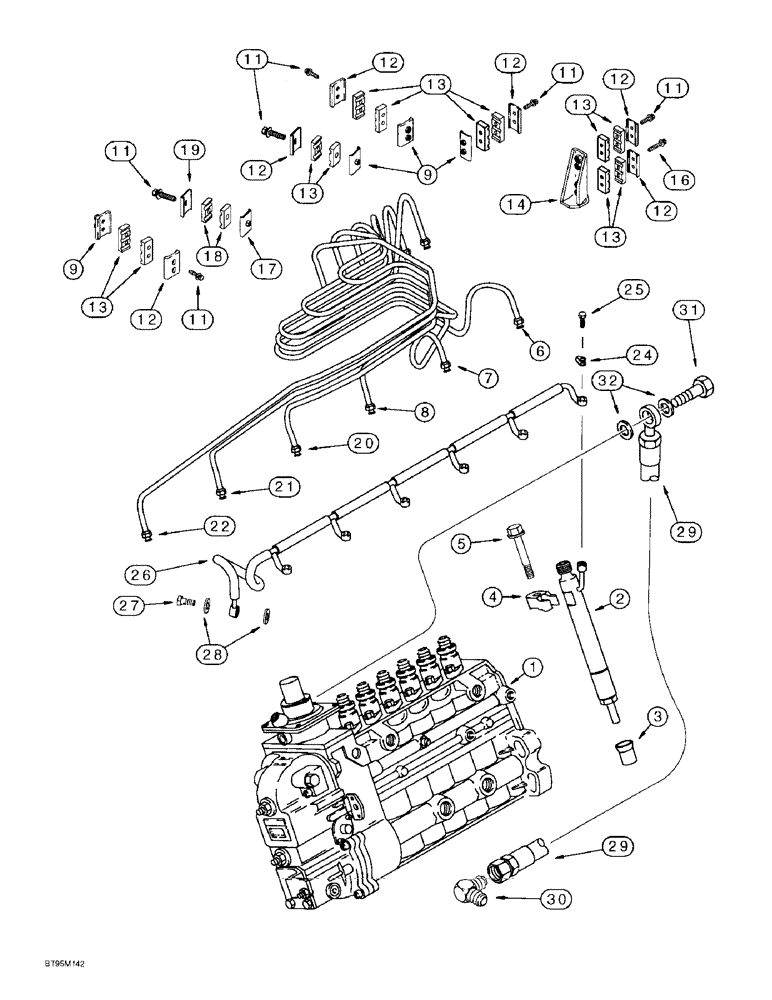

Схема запчастей Case IH 9330 - (3-004) - FUEL INJECTION SYSTEM, 6TA-830 EMISSIONS CERTIFIED ENGINE, 9330 TRACTOR ONLY, S/N JEE0036501 & AFTER (03) - FUEL SYSTEM
21
2
11
18
3
11
14
13
11
7
29
11
16
5
11
12
17
12
22
32
12
20
13
9
12
12
12
1
31
13
27
9
13
24
19
26
30
28
8
13
4
29
6
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J926885

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, parts list Figure 3-20

1шт.

2

J930525

INJECTOR ASSY.

INJECTOR ASSEMBLY - fuel, parts list Figure 3-28

6шт.

2

JR930525

REMAN-FUEL INJECTOR

Remanufactured Injection Nozzle

6шт.

2

JC930525

CORE-FUEL INJECTOR

Return Part Number, Injection Nozzle

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector, sealing

6шт.

4

J910279

CLAMP

- fuel injector

6шт.

5

J922018

FLANGE BOLT

BOLT - heavy hex flange, 8 - 1.25 x 80 mm, class 12.9

6шт.

6

J935074

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE - Fuel Injector, No. 1 Cylinder

1шт.

6

J930355

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

Tube, Fuel Injector, No. 1 Cylinder

1шт.

7

J935076

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

Tube, Fuel Injector, No. 2 Cylinder, 14mm Nuts, Both Ends

1шт.

7

J930356

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

8

J935078

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

Tube, Fuel Injector, No. 3 Cylinder, 14mm Nuts, Both Ends

1шт.

8

J930357

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE - Fuel Injector, No. 3 Cylinder

1шт.

9

J917716

BRACE

BRACKET - fuel tube, supply

3шт.

11

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

10шт.

12

J904519

SUPPORT

BRACE - tube retaining

5шт.

13

J917747

CLAMP

- fuel tube

10шт.

14

J917776

BRACE

BRACKET - fuel tube

1шт.

16

J920855

CAPTIVE WASHER SCREW

BOLT - hex, captive washer, special, 5 - 0.8 x 35 mm

2шт.

17

J917717

BRACE

BRACKET - fuel tube

2шт.

18

J917746

CLAMP

- fuel tube

4шт.

19

J904711

SUPPORT

BRACKET - fuel tube

2шт.

20

J930358

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

21

J930359

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE - fuel injector, No. 5 cylinder, M12 x 1.5 AND M14 X 1.5

1шт.

21

J935082

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE - Fuel Injector, No. 5 Cylinder, M14 x 1.5 On Both Ends

1шт.

22

J930360

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE - fuel injector, No. 6 cylinder

1шт.

Line has M12 connector at pump and M14 at injector. If snubber valve upgrade was performed on the pump (NEN MP 01 98) the injector line required is J935084. This line has a M14 connector on both ends.

1шт.

24

J903380

SEAL

- connector

6шт.

25

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

26

J920595

TUBE ASSY.

MANIFOLD - fuel drain

1шт.

27

J924726

BANJO BOLT

VALVE - check

1шт.

28

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

- sealing, banjo fitting

2шт.

29

J916779

FUEL HOSE,508.00 mm

Cylinder Block To Injection Pump 508.00 mm

1шт.

30

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

90º, 7/16-20 45 degree flare x 1/8 inch PT

1шт.

31

J918002

BANJO BOLT

SCREW - banjo, hose to injection pump

1шт.

32

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

WASHER - sealing, special, 10 x 15.5 x 1 mm

2шт.
