(3-002) - FUEL INJECTION SYSTEM, 6TA-830 ENGINE, 9330 TRACTOR ONLY, PRIOR TO S/N JEE0036501

Запчасти Case IH 9330 (3-002) - FUEL INJECTION SYSTEM, 6TA-830 ENGINE, 9330 TRACTOR ONLY, PRIOR TO S/N JEE0036501 (03) - FUEL SYSTEM

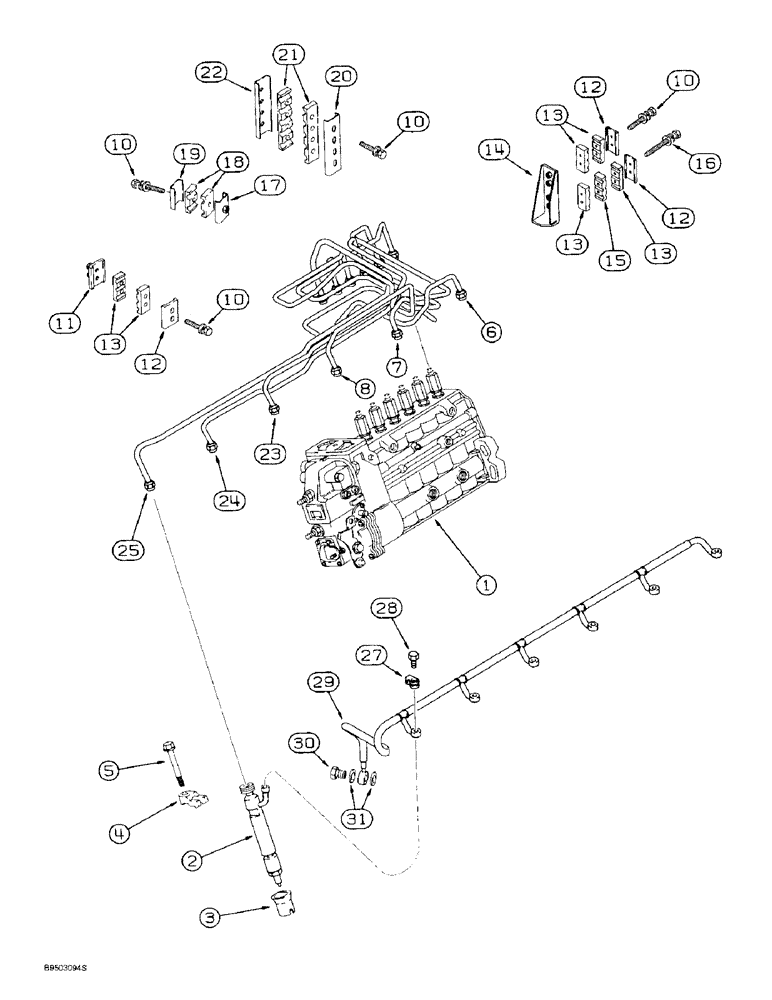

Схема запчастей Case IH 9330 - (3-002) - FUEL INJECTION SYSTEM, 6TA-830 ENGINE, 9330 TRACTOR ONLY, PRIOR TO S/N JEE0036501 (03) - FUEL SYSTEM
19
17
14
3
10
12
24
31
7
10
21
6
25
28
22
18
29
5
27
13
11
16
2
13
4
20
10
30
12
15
23
12
10
13
8
1
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J926218

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, parts list Figure 3-18

1шт.

1

JR926218

REMAN-INJECTION PUMP

Remanufactured Injection Pump

1шт.

1

JC926218

CORE-INJECTION PUMP

Return Part Number, Injection Pump

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, parts list Figure 3-26

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector

6шт.

4

J910279

CLAMP

- fuel injector

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 80 mm

6шт.

6

J910749

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE - fuel, No. 1 cylinder

1шт.

7

J910750

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE - fuel, No. 2 cylinder

1шт.

8

J910751

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE - fuel, No. 3 cylinder

1шт.

10

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

9шт.

11

J917716

BRACE

BRACKET - fuel tube

1шт.

12

J904519

SUPPORT

BRACE - tube retaining

3шт.

13

J917747

CLAMP

- fuel tube

6шт.

14

J917776

BRACE

BRACKET - fuel tube

1шт.

15

J917748

CLAMP

- fuel tube

1шт.

16

J920855

CAPTIVE WASHER SCREW

BOLT - hex, captive washer, special, 5 - 0.8 x 35 mm

2шт.

17

J917717

BRACE

BRACKET - fuel tube

1шт.

18

J917746

CLAMP

- fuel tube

2шт.

19

CURJ904711

CLAMP

BRACKET - fuel tube

1шт.

20

J910686

BRACE

- tube retaining

1шт.

21

J917749

CLAMP

- tube

2шт.

22

J917740

BRACE

- tube retaining

1шт.

23

J910752

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

24

J910753

FUEL TUBE,2 mm ID x 6.4 mm OD x 927.5 mm L

TUBE - fuel injector, No. 5 cylinder

1шт.

25

J910754

FUEL TUBE

TUBE - fuel injector, No. 6 cylinder

1шт.

27

J903380

SEAL

- connector

6шт.

28

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

29

J920595

TUBE ASSY.

MANIFOLD - fuel drain

1шт.

30

J924726

BANJO BOLT

VALVE - check

1шт.

31

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

- sealing

2шт.
