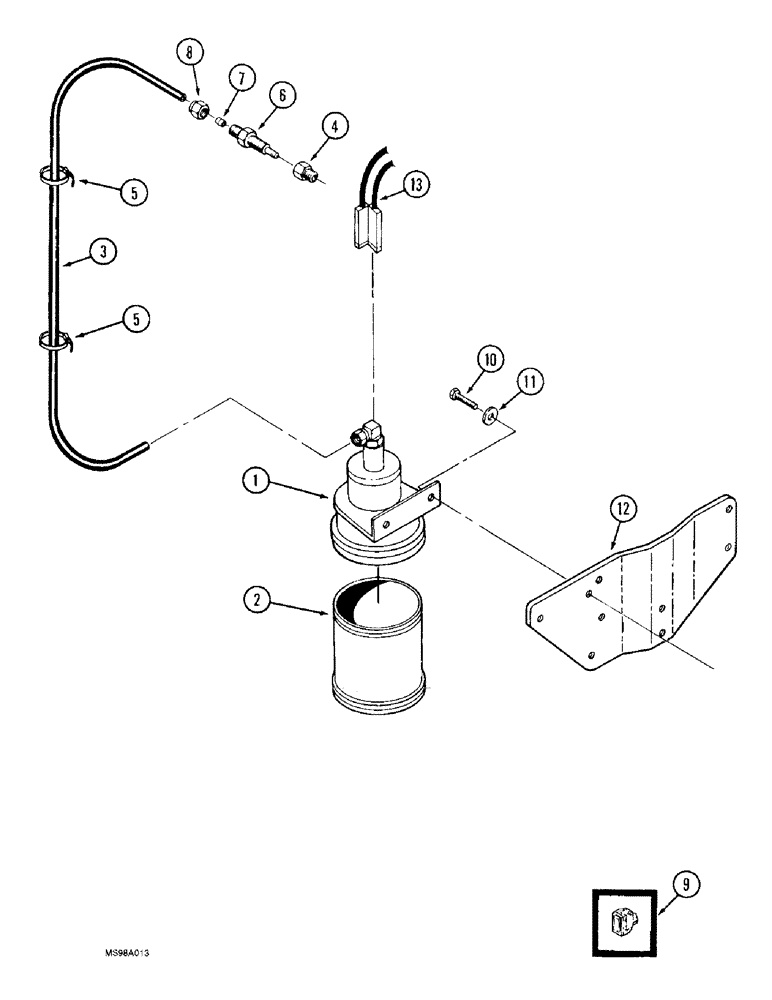

Запчасти Case IH 9330 (2-108) - ETHER STARTING SYSTEM (02) - ENGINE

185552A2

SOLENOID

ASSEMBLY - ether injection, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

SOLENOID - ether injection, Includes: Ref. 1 and 2

1шт.

2

190752A1

HOUSING

- ether injection solenoid

1шт.

3

31-1347

TUBE,0.125" OD, 24" Length

- 610 mm (24 inch) long, cut from 29-53T2 bulk tube, see below

1шт.

4

217-1034

REDUCER,1/4" - 18 Male NPTF x 1/8" - 27 Female NPTF

Replaces 221-84 reducer 1/4"-18 Male NPTF x 1/8"-27 Female NPTF

1шт.

5

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

2шт.

6

A172900

NOZZLE CAP

NOZZLE ASSEMBLY - atomizer, Includes: Ref. 7 and 8

1шт.

7

222-650

SLEEVE,1/8" Tube, Comp

- tapered, 1/8 inch tube OD

1шт.

8

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD 5/16"-24, 45º Fl, Comp

1шт.

9

1964751C1

SWITCH

- rocker, in cab

1шт.

10

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

2шт.

11

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

12

90-7333T2

BRACKET

- mounting, overflow tank, see Figure 2-100 for mounting

1шт.

13

60-7164T2

HARNESS

ASSEMBLY - engine, not shown, parts list Figure 4-14

1шт.

29-53T2

HOSE

TUBE - bulk, 3 (1/8) OD x 3048 mm (120 inch) long

1шт.
