(9330) - CASE IH 4WD TRACTOR (1/96-8/00)
/
(02) - ENGINE
/

(2-106) - AIR CLEANER ASSEMBLIES PRIOR TO P.I.N. JEE0036501

Запчасти Case IH 9330 (2-106) - AIR CLEANER ASSEMBLIES PRIOR TO P.I.N. JEE0036501 (02) - ENGINE

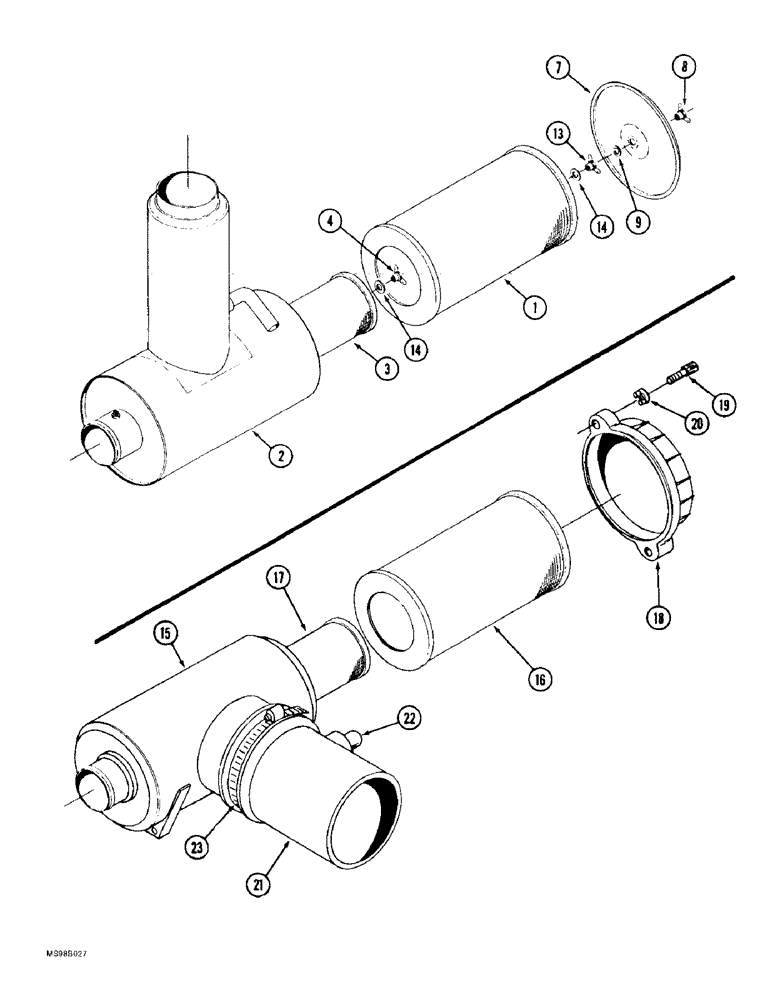

Схема запчастей Case IH 9330 - (2-106) - AIR CLEANER ASSEMBLIES PRIOR TO P.I.N. JEE0036501 (02) - ENGINE
22
15
14
19
1
13
2
18
9
7
17
16
3
21
14
20
4
8
23

№

Артикул

Название

Примечание

Количество

90-6122T91

AIR CLEANER

ASSEMBLY - engine, Includes: Ref. 1 - 14, Serial Range: -JEE0036501

1шт.

1

90-6443T1

FILTER, ELEMENT

ELEMENT - primary, Serial Range: -JEE0036501

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - air cleaner, Serial Range: -JEE0036501

1шт.

3

90-6444T1

FILTER, ELEMENT

ELEMENT - secondary, Serial Range: -JEE0036501

1шт.

4

90-6518T1

WING NUT

NUT - wing, element retainer, Serial Range: -JEE0036501

1шт.

90-6442T91

COVER ASSY

COVER ASSEMBLY - air cleaner, Includes: Ref. 7 - 9, Serial Range: -JEE0036501

1шт.

7

NSS

NOT SOLD SEPARAT

COVER - air cleaner, Serial Range: -JEE0036501

1шт.

8

90-6516T1

WING NUT

NUT - wing, cover retainer, Serial Range: -JEE0036501

1шт.

9

90-6519T1

RING

CLIP - retainer, wing nut, Serial Range: -JEE0036501

1шт.

13

90-6516T1

WING NUT

NUT - wing, element retainer, Serial Range: -JEE0036501

1шт.

14

1547948C1

SEALING WASHER

WASHER - sealing, retainer nut, Serial Range: -JEE0036501

2шт.

90-8336T1

AIR CLEANER

CLEANER ASSEMBLY - air, Includes: Ref. 15 - 20, Start Serial: JEE0036501

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - air cleaner, assembly, Start Serial: JEE0036501

1шт.

16

113988A1

ELEMENT

- primary, air cleaner assembly, Start Serial: JEE0036501

1шт.

17

113989A1

ELEMENT

- safety, air cleaner assembly, Start Serial: JEE0036501

1шт.

90-7794T1

COVER ASSY

COVER ASSEMBLY - air cleaner, Includes: Ref. 18 - 20, assembly, Start Serial: JEE0036501

1шт.

18

NSS

NOT SOLD SEPARAT

COVER - air cleaner assembly, Start Serial: JEE0036501

1шт.

19

NSS

NOT SOLD SEPARAT

SCREW - thumb, air cleaner assembly, Start Serial: JEE0036501

2шт.

20

NSS

NOT SOLD SEPARAT

WASHER - cover, air cleaner assembly, Start Serial: JEE0036501

2шт.

90-8337T1

PRECLEANER

ASSEMBLY - air cleaner, Includes: Ref. 21, 22, assembly, Start Serial: JEE0036501

1шт.

21

NSS

NOT SOLD SEPARAT

BODY - precleaner, air cleaner assembly, Start Serial: JEE0036501

1шт.

22

NSS

NOT SOLD SEPARAT

VALVE - precleaner, air cleaner assembly, Start Serial: JEE0036501

1шт.

23

214-14136

HOSE CLAMP,#136, 8.12" - 9", Type F Worm

CLAMP - adj, 8-1/8 - 9 inch dia, air cleaner assembly, Start Serial: JEE0036501

1шт.

90-7795T1

KIT

- fastener, includes: Ref. 19, 20, (1) fastener assembly, (1) fastener, (1) thumb screw, and (1) instruction sheet, air cleaner assembly, Start Serial: JEE0036501

1шт.
