Запчасти Case IH 9330 (2-102) - AIR INDUCTION SYSTEM, PRIOR TO P.I.N. JEE0036501 (02) - ENGINE

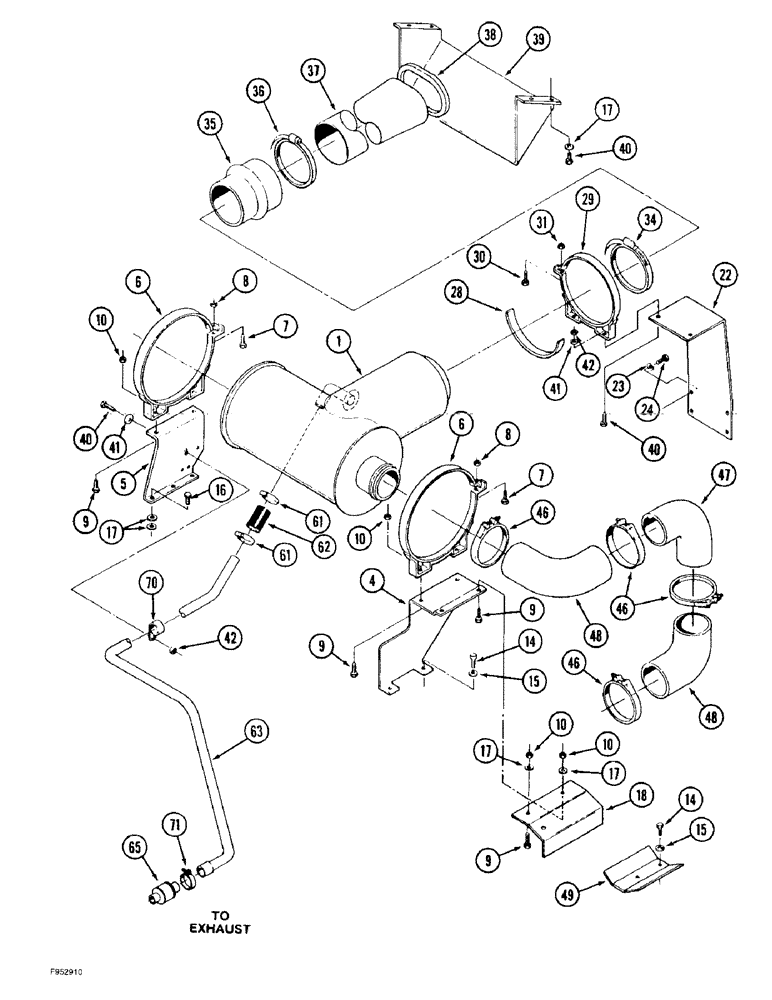

Схема запчастей Case IH 9330 - (2-102) - AIR INDUCTION SYSTEM, PRIOR TO P.I.N. JEE0036501 (02) - ENGINE
46
17
4
46
10
14
62
61
42
41
4b
16
49
10
35
40
31
15
23
9
5
63
65
9
9
28
40
37
9
7
47
7
22
70
6
71
8
40
34
17
61
17
46
42
48
36
1
18
30
8
10
17
41
10
15
38
39
24
14
29
6

Артикул

Название

Примечание

Количество

1

90-6122T91

AIR CLEANER

ASSEMBLY - engine, parts list Figure 2-106

1шт.

4

90-7448T2

BRACKET

- mounting, air cleaner

1шт.

5

90-7449T1

BRACKET

- mounting, air cleaner

1шт.

6

A16574

BAND

CLAMP - air cleaner, includes hardware, Includes: Ref. 7 and 8

2шт.

7

426-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 8

- hex, 5/16 NC x 1-1/4 inch, grade 8

2шт.

8

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

9

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

6шт.

10

425-106

NUT,3/8"-16, Cl 5

6шт.

14

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

15

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

16

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

3шт.

17

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

12шт.

18

90-7446T2

SHIELD

- heat

1шт.

22

90-7447T1

BRACKET

- mounting, air cleaner

1шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

24

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

4шт.

28

90-6834T1

FOAM

- strip, 9 inch (229 mm) long, cut from 2-6617T1 bulk foam, see below

1шт.

29

90-6241T1

CLAMP

ASSEMBLY - air cleaner, Includes: Ref. 30 and 31

1шт.

30

182-209

SCREW,Sl Pan Hd, 1/4" - 20 x 1 1/2"

- machine, pan head slotted, 1/4 NC x 1-1/2 inch

1шт.

31

425-1424

JAM NUT,Jam, 1 1/2"-6, G5

- hex, jam, 1-1/2 inch NC

1шт.

34

214-3296

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm, W/ Liner

CLAMP, HOSE, , Adjustable 5.25/6.125 HD Worm, W/liner

1шт.

35

9-61

HOSE,5.00" ID, 6.00" ID ID x, 6.00"

Coupling, Air Cleaner to Tube 5.00" ID, 6.00" ID ID x, 6.00"

1шт.

36

214-32104

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm, W/ Liner

CLAMP - adj, 5-3/4 - 6-5/8 inch dia

1шт.

37

90-7450T2

AIR INTAKE TUBE,6" OD x 18" L

TUBE - air induction

1шт.

38

90-7220T1

SEAL

- 590 mm (23-1/4 inch) long, cut from F43117X bulk seal, see below

1шт.

39

90-7445T1

BAFFLE

- air

1шт.

40

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

7шт.

41

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

3шт.

42

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

46

214-3272

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm, W/ Liner

CLAMP - adj, 4-1/4 - 4-9/16 inch dia

4шт.

47

90-7370T1

ELBOW

- air induction

1шт.

48

218899R1

ELBOW

HOSE - elbow

2шт.

49

90-6119T3

SHIELD

- heat

1шт.

61

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

2шт.

62

31-2594

HOSE,1.25" ID x 4.00"

; Order 01-4569T1, and Cut to Required Length; See Below 1.25" ID x 4.00"

1шт.

63

90-7499T2

TUBE,1.350" OD

- aspirator

1шт.

65

A190699

VALVE

- check, aspirator tube

1шт.

70

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

P-type 1 1/4", Insul, 3/8" Bolt

1шт.

71

31-2434T1

CLAMP

- adjustable

1шт.

2-6617T1

FOAM

- bulk, 120 inch (3048 mm) long

1шт.

F43117X

SEAL

- formed rubber, adhesive-backed, bulk, 15 (9/16) x 31 (1-3/16) x 30480 mm (1200 inch) long

1шт.

1-4569

HOSE

- bulk, 3048 mm (120 inch) long

1шт.
