(2-098) - RADIATOR MOUNTING

Запчасти Case IH 9330 (2-098) - RADIATOR MOUNTING (02) - ENGINE

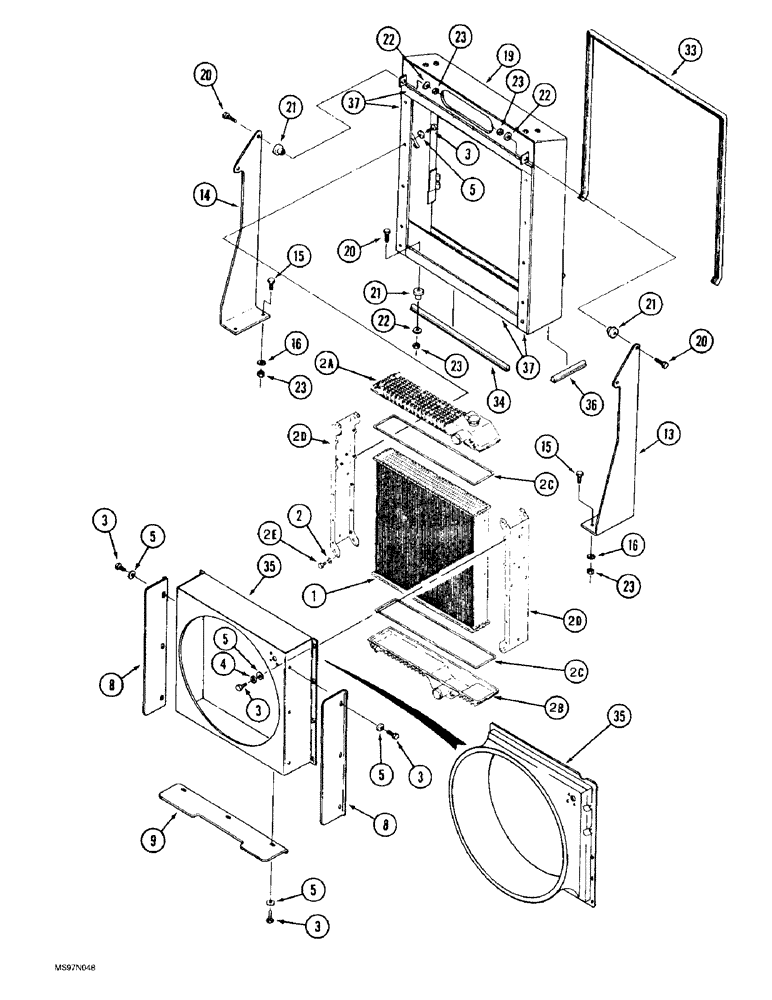

Схема запчастей Case IH 9330 - (2-098) - RADIATOR MOUNTING (02) - ENGINE
2d
2a
3
2b
5
2c
3
16
37
14
2c
5
3
36
8
34
22
15
13
2
23
35
37
19
5
8
23
33
16
23
3
9
22
5
20
35
22
20
3
21
21
20
23
2d
2e
5
15
4
23
1
21
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A190762

RADIATOR

ASSEMBLY - cooling system, parts list Figure 2-100, Includes: Ref. 1 - 2E, Serial Range: -JEE0036501

1шт.

131751A2

RADIATOR

ASSEMBLY - cooling system, Includes: Ref. 1 - 2E, Start Serial: JEE0036501

1шт.

1

NSS

NOT SOLD SEPARAT

CORE - radiator

1шт.

2a

243898A1

TANK

- radiator, upper

1шт.

2b

243895A1

RESERVOIR

TANK - radiator, lower

1шт.

2c

227240A1

GASKET,3.3mm Thk

- rubber seal

2шт.

2d

243899A1

SUPPORT

- radiator, side

2шт.

2e

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm

8шт.

3

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

9шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

5

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

28шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, Not shown

16шт.

8

90-7360T2

SHIELD

- fan sides

2шт.

9

90-7361T2

SHIELD

- fan, bottom

1шт.

13

70-5924T1

BRACKET

MOUNT - radiator frame, right-hand, Serial Range: -JEE0036501

1шт.

13

70-6833T1

BRACKET

MOUNT - radiator frame, right-hand, replaces 70-6789T1 mount, Start Serial: JEE0036501

1шт.

14

70-5925T1

BRACKET

MOUNT - radiator frame, left-hand, Serial Range: -JEE0036501

1шт.

14

70-6832T1

BRACKET

MOUNT - radiator frame, left-hand, replaces 70-6788T1 mount, Start Serial: JEE0036501

1шт.

15

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

19

70-5961T1

FUNNEL

FRAME - mounting, radiator, Serial Range: -JEE0036501

1шт.

19

70-6834T2

SHROUD

FRAME - mounting, radiator, replaces 70-6780T1, Start Serial: JEE0036501

1шт.

20

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

21

L13142

BUSHING

MOUNT - isolator, rubber

4шт.

22

19-961

WASHER,17/32" x 1 1/2" x 1/8"

- flat

4шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

33

90-7442T1

SEAL

- foam, 2769 mm (109 inch) long, cut from F43117X bulk seal, see below

1шт.

34

90-7443T1

SEAL

- foam, 502 mm (19-3/4 inch) long, cut from 70-5259T1X bulk seal, see below

1шт.

35

90-7358T1

SHROUD

- fan, Serial Range: -JEE0036501

1шт.

35

90-8268T1

SHROUD

FAN - shroud, Start Serial: JEE0036501

1шт.

36

90-7444T1

SEAL

- foam, 222 mm (8-3/4 inch) long, cut from 70-5259T1X bulk seal, see below

2шт.

37

60-6505T1

FOAM

SEAL - foam, 746 mm (29-3/8 inch) long, cut from 60-4595T1 bulk seal, see below

4шт.

38

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm, class 10.9, Not shown

20шт.

39

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - carriage, 1/2 NC x 2 inch, P.I.N. JEE0036501 and after, not shown, Start Serial: JEE0036501

2шт.

40

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, grade 8, Not shown, Start Serial: JEE0036501

4шт.

41

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC, not shown, Start Serial: JEE0036501

4шт.

F43117X

SEAL

- formed rubber, adhesive-backed, bulk, 15 (9/16) x 31 (1-3/16) x 30480 mm (1200 inch) long

1шт.

70-5259T1X

SEAL

- foam, bulk, 3048 mm (120 inch) long

1шт.

60-4595T1

FOAM

SEAL - foam, bulk, 2743 mm (108 inch) long

1шт.

2

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.
