(2-080) - FLYWHEEL, 6T-830/6TA-830 EMISSIONS CERTIFIED ENGINES, S/N JEE0036501 & AFTER

Запчасти Case IH 9330 (2-080) - FLYWHEEL, 6T-830/6TA-830 EMISSIONS CERTIFIED ENGINES, S/N JEE0036501 & AFTER (02) - ENGINE

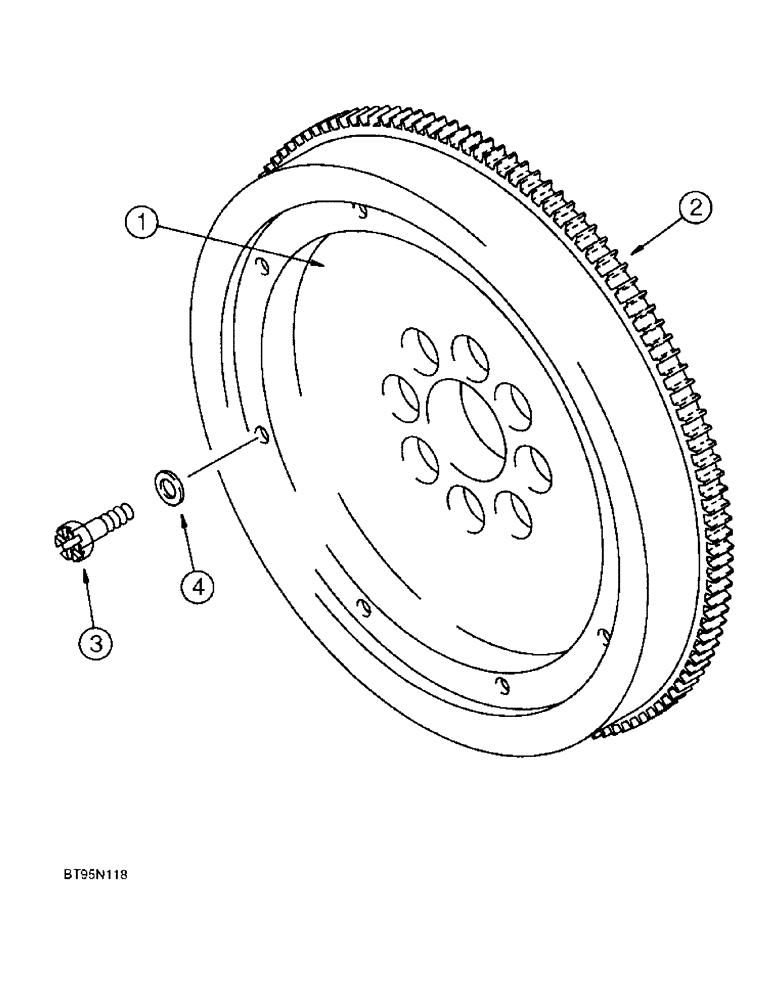

Схема запчастей Case IH 9330 - (2-080) - FLYWHEEL, 6T-830/6TA-830 EMISSIONS CERTIFIED ENGINES, S/N JEE0036501 & AFTER (02) - ENGINE
4
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J906809

FLYWHEEL

ASSEMBLY - engine, Includes: Ref. 2

1шт.

2

J902127

FLYWHEEL

GEAR - ring, flywheel

1шт.

3

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 32 mm

8шт.

4

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, special, mounting

8шт.
