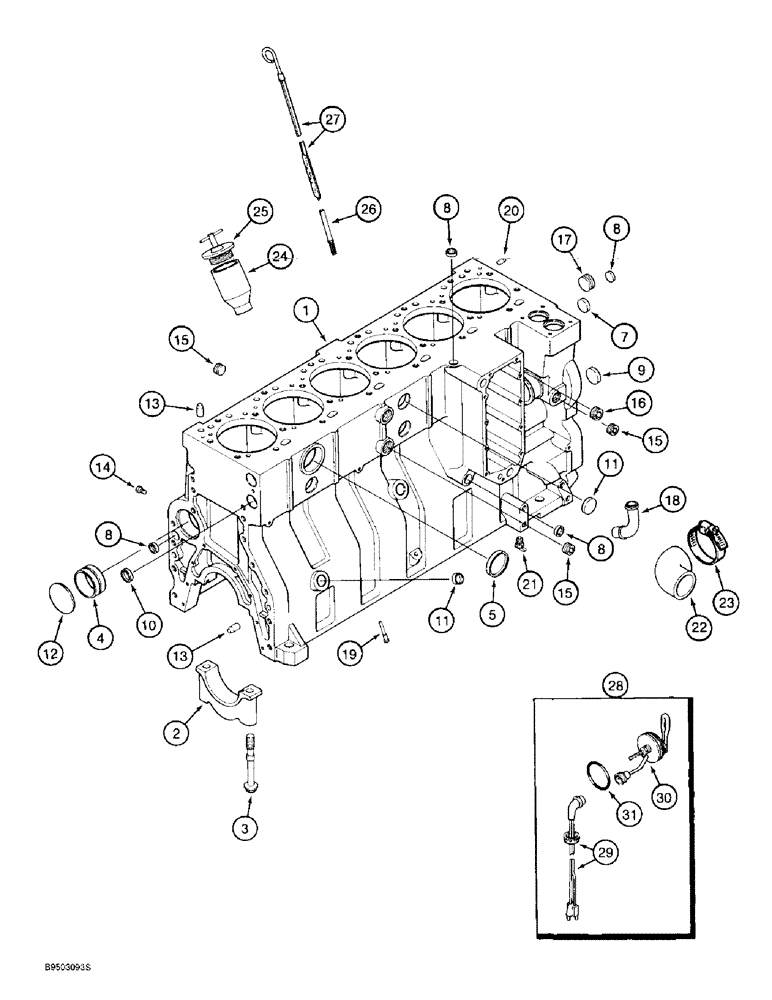

Запчасти Case IH 9330 (2-058) - CYLINDER BLOCK, 6TA-830 ENGINE, 9330 TRACTOR ONLY, PRIOR TO S/N JEE0036501, ENGINE BLOCK HEATER (02) - ENGINE

1989192C1

ENGINE ASSEMBLY

Complete, 6TA-830, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe, for service order basic engine below, Includes: Ref. 1 - 9

1шт.

1989192C1R

REMAN-REPLACEMENT EN

Complete, 6TA-830, includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe.

1шт.

6TA-830C

CORE-REPLACEMENT ENG

Return Part Number, KNOWN POTENTIAL CORE VARIATIONS, REFER TO CORE CRITERIA FOR PROPER CORE IDENTIFICATION

1шт.

199985A1R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

199985A1C

CORE-BASIC ENGINE

Return Part Number

1шт.

87448684

REMAN-SHORT ENGINE

1шт.

6830SHBC

CORE-SHORT ENGINE

Return Part Number

1шт.

J926151

SKELETON ENGINE

BLOCK ASSEMBLY - short, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes: Ref. 1 - 9

1шт.

1

J929604

CRANKCASE

BLOCK ASSEMBLY - stripped engine, replaces J926145 stripped block assembly, Includes: Ref. 2 - 9

1шт.

Order Ref.10 - 21 on Figure 2-60 when ordering J929604 stripped block.

1шт.

2

J917313

BEARING CAP

CAP - bearing, main

7шт.

3

J916369

FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9

SCREW, Hex Flg Hd, M14 x 128

14шт.

4

J901685

BUSHING

- camshaft, front, see Figure 2-55, Ref. 6

7шт.

5

A77782

PLUG

- expansion, 58 mm OD

1шт.

7

A77586

PLUG

- expansion, 28.9 mm OD

1шт.

8

A77506

PLUG

- expansion, 21 mm OD

4шт.

9

J905401

PLUG

- expansion, 35 mm OD

4шт.

A77716

BLOCK

KIT - block hardware, Includes: Ref. 10 - 21, no longer available, order components separately

1шт.

10

A77530

PLUG

- expansion, 30 mm OD, not used in this application

2шт.

11

J920706

PLUG

- expansion, 22 mm OD

1шт.

12

41-3044

PLUG,Exp, 2 3/4"

1шт.

13

J901846

PIN,12.01mm OD x 24mm L

- dowel

4шт.

14

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

6шт.

15

A77429

PLUG

- hex socket, 1/2 inch PT (4 used in this application)

5шт.

16

A77505

PLUG

- hex socket, 3/4 inch PT

2шт.

17

A77533

PLUG

- hex socket, 1 inch PT

1шт.

18

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

19

J928031

NOZZLE,8.5mm OD x 30mm L

- piston cooling, replaces J919003 nozzle

12шт.

20

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long

2шт.

21

217-103

COCK, DRAIN

VALVE - 1/4 inch PT, drain, coolant

1шт.

22

J920762

ELBOW

HOSE - 79 mm (3-1/8 inch), water

1шт.

23

J918521

HOSE CLAMP,59mm - 83mm

CLAMP - adj, 1-13/16 - 2-3/4 inch dia

1шт.

24

J905408

TUBE,35.13 mm ID x 52.39 mm OD x 100 mm L

- oil filler

1шт.

25

A77424

FILLER CAP

CAP - oil fill tube

1шт.

26

J905425

TUBE,9.52 mm OD x 93 mm L

- dipstick, oil

1шт.

27

J908772

DIPSTICK

- oil gauge, 298 mm long

1шт.

28

A77595

KIT

- engine block heater, Includes: Ref. 29 - 31

1шт.

29

J905113

CABLE

- engine block heater

1шт.

P/N J905113 and 196466A1 are 6 ft. long. For 1 ft. long cord, order A44813.

1шт.

30

NSS

NOT SOLD SEPARAT

ELEMENT - heater, engine block

1шт.

31

J910517

O-RING

- heater sealing, engine block

1шт.
