Запчасти Case IH 9330 (2-020) - TURBOCHARGER SYSTEM, 6TA-830 EMISSIONS CERTIFIED ENGINE, 9330 TRACTOR ONLY, S/N JEE0036501 & AFTER (02) - ENGINE

1

REF

INSTRUCTION

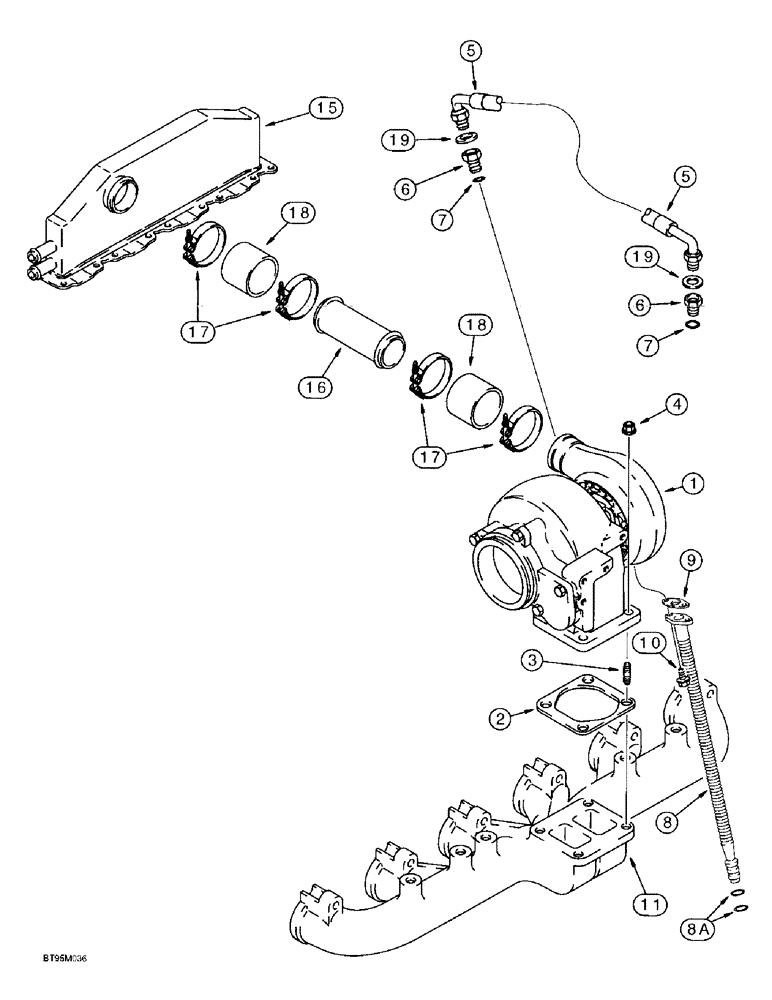

TURBOCHARGER ASSEMBLY - engine, parts list Figure 2-28

1шт.

2

J911941

GASKET

- mounting, turbocharger

1шт.

3

J818823

STUD

- turbocharger mounting, M10 x 40

4шт.

4

J818824

FLANGE NUT

- hex flange, special, 10 mm - 1.5

4шт.

5

J921530

HOSE,9.53mm ID x 385mm L

Turbocharger Oil Supply

1шт.

6

J919687

HYD CONNECTOR

ADAPTER - female hex, special, Includes: Ref. 7

2шт.

7

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

8

J928629

TUBE

- oil drain, Includes: Ref. 8A

1шт.

8a

238-7115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 7, 75 Duro

2шт.

9

J819378

GASKET

- turbo oil drain

1шт.

10

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

11

J929779

MANIFOLD

- exhaust, see Figure 2-16 for mounting parts

1шт.

15

J924732

AFTERCOOLER

- air intake, see Figure 2-16 for mounting and water tubes

1шт.

16

J914943

TUBE,63.5 mm OD x 140 mm L

- crossover, air

1шт.

17

J924386

COLLAR CLAMP

CLAMP - adjustable, special

4шт.

18

J916437

HOSE

Crossover Tube

2шт.

19

222-993

GASKET,3/8 Tube, Fl, Copper

2шт.
