Запчасти Case IH 9330 (2-010) - MANIFOLDS, 6TA-830 ENGINE, 9330 TRACTOR ONLY, PRIOR TO S/N JEE0036501 (02) - ENGINE

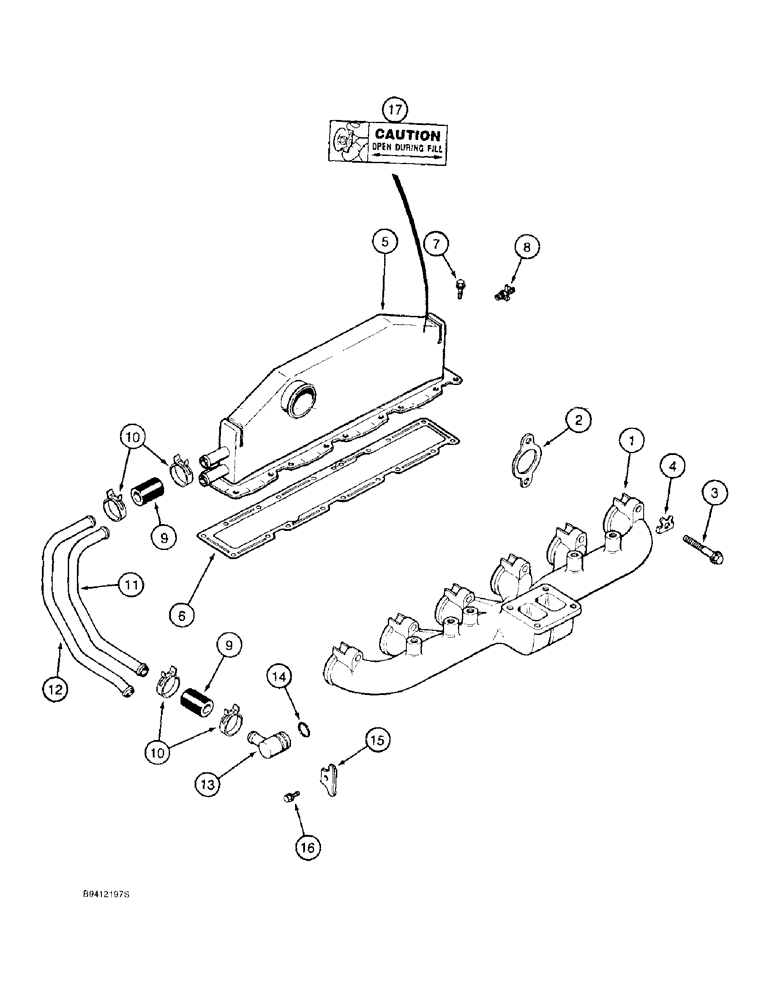

Схема запчастей Case IH 9330 - (2-010) - MANIFOLDS, 6TA-830 ENGINE, 9330 TRACTOR ONLY, PRIOR TO S/N JEE0036501 (02) - ENGINE
7
9
9
14
13
17
11
3
10
1
8
10
16
12
5
2
15
4
6

Артикул

Название

Примечание

Количество

1

J929779

MANIFOLD

- exhaust, replaces J906720 manifold

1шт.

2

J929012

GASKET,0.5mm Thk

- exhaust manifold, 0.54 mm thick, replaces J921787 gasket

6шт.

3

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 - 1.5 x 70 mm

12шт.

4

J914708

LOCKING PLATE

PLATE - locking, bolt

12шт.

5

J914501

COOLER

AFTERCOOLER - intake manifold

1шт.

6

J914311

MANIFOLD GASKET

- manifold, intake aftercooler

1шт.

7

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Special, Intake aftercooler Hex Flg Hd, M8 x 1.25 x 25

18шт.

8

J909394

COCK, DRAIN

VALVE - drain, intake aftercooler

1шт.

9

J918611

HOSE,18.50 mm ID x 63.00 mm

to Aftercooler, Intake 18.50 mm ID x 63.00 mm

4шт.

10

J918163

CLIP

CLAMP - spring type, intake aftercooler

8шт.

11

J906436

TUBE,19.05 mm OD x 385.3 mm L

- water inlet, intake aftercooler

1шт.

12

J908402

TUBE,19.05 mm OD

- water outlet, intake aftercooler

1шт.

13

J917394

ELBOW

CONNECTOR - water inlet, intake aftercooler

2шт.

14

238-5120

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

Intake aftercooler -120, 70 Duro, .987" ID x .103" Thk

2шт.

15

J906439

PLATE

- mounting, intake aftercooler

1шт.

16

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm, Intake aftercooler

1шт.

17

J910778

DECAL

- Caution, open during fill, intake aftercooler

1шт.

Выбрано товаров: 17
