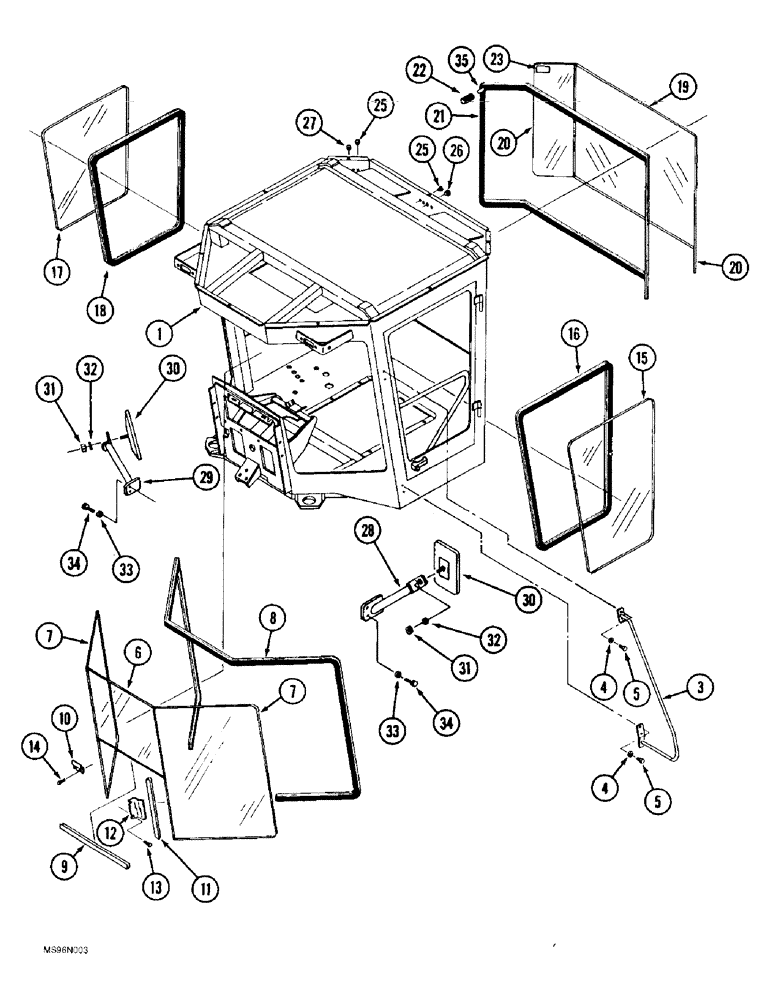

Запчасти Case IH 9330 (9-032) - CAB AND WINDOWS (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

CAB ASSEMBLY - Tractor, order from Machinery parts list

1шт.

1

60-7086T2

CAB

FRAME - cab

1шт.

3

60-5778T1

HANDLE

- grab, side

1шт.

4

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch) 3/8"

4шт.

5

426-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 8

- hex, 3/8 NC x 5/8 inch, grade 8

4шт.

6

60-4315T1

WINDSHIELD

- front, center

1шт.

7

60-6866T1

GLASS,CAB

WINDSHIELD - front, sides

2шт.

8

60-6875T1

GASKET

SEAL - moulding, 5415 mm (213-3/16 inch) long, cut from 60-6870T1 bulk seal, see below

1шт.

9

60-3039T1

SEAL, GLASS

SEAL - 625 mm (24-5/8 inch) long, cut from 2-6789T1 bulk seal, see below

1шт.

10

60-2774T1

CLAMP

CLIP - retainer

2шт.

11

60-3040T1

SEAL, GLASS

SEAL - 584 mm (23 inch) long, cut from 2-6789T1 bulk seal, see below, front side windshield

2шт.

12

60-4146T1

SUPPORT

BRACKET - retainer

2шт.

13

282-44712

SELF-TAP SCREW,Hex Wash Hd, 1/4"-20 x 3/4"

SCREW - self-drilling tapping, hex washer head, 1/4 NC x 3/4 inch

4шт.

14

60-6688T1

SCREW

- hex washer head, self-tapping, special

4шт.

15

60-6865T1

GLASS,CAB

WINDOW - door

1шт.

16

60-6876T1

GASKET

SEAL - moulding, 3575 mm (140-3/4 inch) long, cut from 60-6870T1 bulk seal, see below

1шт.

17

60-6863T1

GLASS,CAB

WINDOW - side

1шт.

18

60-6874T1

GASKET

SEAL - moulding, 3303 mm (130-1/16 inch) long, cut from 60-6870T1 bullk seal, see below

1шт.

19

60-3859T1

GLASS

WINDOW - back, center

1шт.

20

60-6864T1

GLASS,CAB

WINDOW - back, sides

2шт.

21

60-6877T1

GASKET

SEAL - moulding, 5054 mm (199 inch) long, cut from 60-6871T1 bulk seal, rear windows, see below

1шт.

22

20-1814T1

SEAL, GLASS

SLEEVE - heat shrink, 19 mm (3/4 inch) long, cut from 20-1830T1 bulk sleeve

1шт.

23

2-6879T1

DECAL

- emergency exit

1шт.

25

353-401

PLUG,Dome, .312" hole, Nylon

- button, 5/16 inch, replaces 60-4582T1 plug

13шт.

26

31-2175

PLUG

- hole, 3/4 inch diameter

4шт.

27

60-4401T1

PLUG

- hole, 5/8 inch diameter

2шт.

28

60-7040T1

SUPPORT

MOUNT - mirror, left-hand

1шт.

29

60-7068T1

SUPPORT

MOUNT - mirror, right-hand

1шт.

30

1283403C1

MIRROR

- rear view

2шт.

32

892-11010

LOCK WASHER,M10

2шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

34

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

4шт.

35

NSS

NOT SOLD SEPARAT

SEAL - widow zipper, 199 inch (5055mm) long, cut from 60-6872T1

1шт.

2-6789T1

SEAL, GLASS

TRIM - edge, bulk, 3048 mm (120 inch) long, sold by the foot

1шт.

20-1830T1

SEAL, GLASS

SLEEVE - heat shrink, 6 (1/4) ID x 30480 mm (1200 inch) long

1шт.

60-6870T1

SEAL

- bulk, 6096 mm (240 inch) long

1шт.

60-6871T1

SEAL

- bulk, 6096 mm (240 inch) long

1шт.

60-6872T1

SEAL

- bulk, 6096 mm (240 inch) long

1шт.

31

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
