Запчасти Case IH 9330 (9-030) - FRONT WEIGHTS, REAR WEIGHTS (09) - CHASSIS/ATTACHMENTS

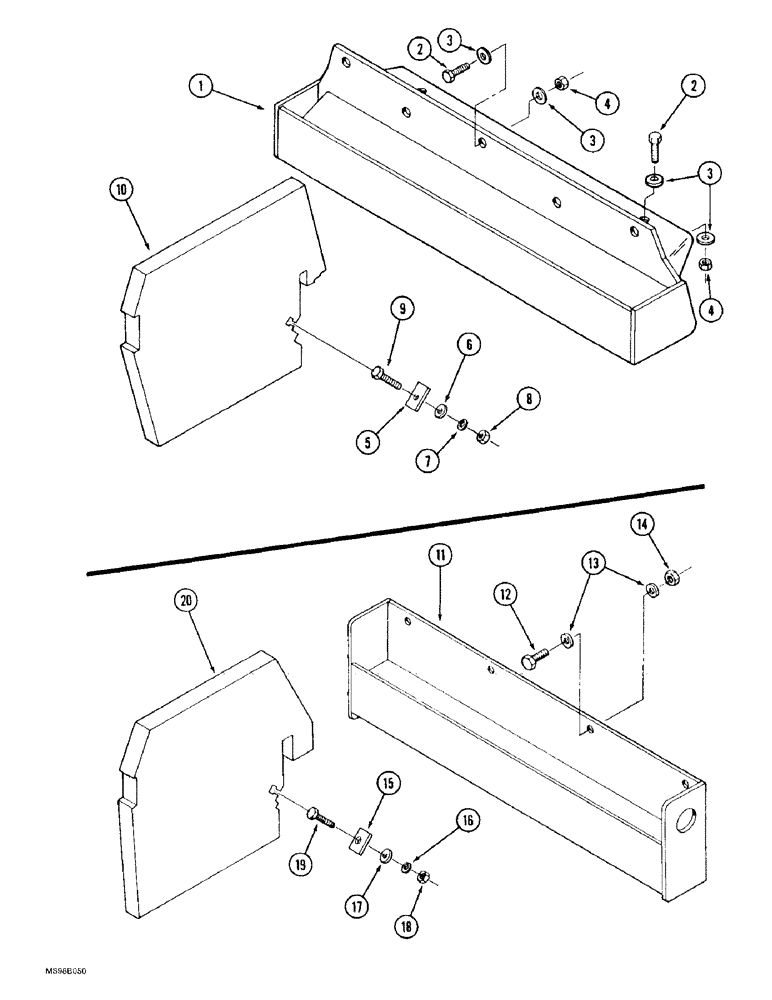

Схема запчастей Case IH 9330 - (9-030) - FRONT WEIGHTS, REAR WEIGHTS (09) - CHASSIS/ATTACHMENTS
15
8
11
6
20
2
19
12
18
3
4
10
14
5
16
9
4
13
2
17
3
3
1
7

Артикул

Название

Примечание

Количество

35-1963T91

KIT - front weights, no longer available, order component parts separately, Includes: Ref. 1 - 4

1шт.

1

70-6663T1

BRACKET

- front weights

1шт.

2

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

10шт.

3

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardened

18шт.

4

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

10шт.

5

1978431C1

CLAMP

- weights

10шт.

6

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

10шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

10шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

10шт.

9

A169139

SQUARE BOLT

- square head, special, 1/2 NC x 3-1/4 inch

10шт.

10

1347524C1

WEIGHT

- front, order 1348233C1 or A67894 weight from Machinery Price List, 45.36 kgs, (100 pound)

18шт.

35-1964T91

KIT - rear weights, no longer available, order component parts separately, Includes: Ref. 11 - 14

1шт.

11

70-6669T1

SUPPORT

BRACKET - rear weights

1шт.

12

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

Rear weights Hex, 3/4"-10 x 2", G8

6шт.

13

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardened, rear weights

12шт.

14

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC, rear weights

6шт.

15

1978431C1

CLAMP

- weights, rear

11шт.

16

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32"), Rear weights 1/2", SAE

11шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Rear weights 1/2"

11шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Rear weights 1/2"-13, G5

11шт.

19

A169139

SQUARE BOLT

- square head, special, 1/2 NC x 3-1/4 inch, rear weights

11шт.

20

1347524C1

WEIGHT

- front, order 1348233C1 or A67894 weight from Machinery Price List, 45.36 kgs, (100 pound), rear

22шт.

Выбрано товаров: 22
