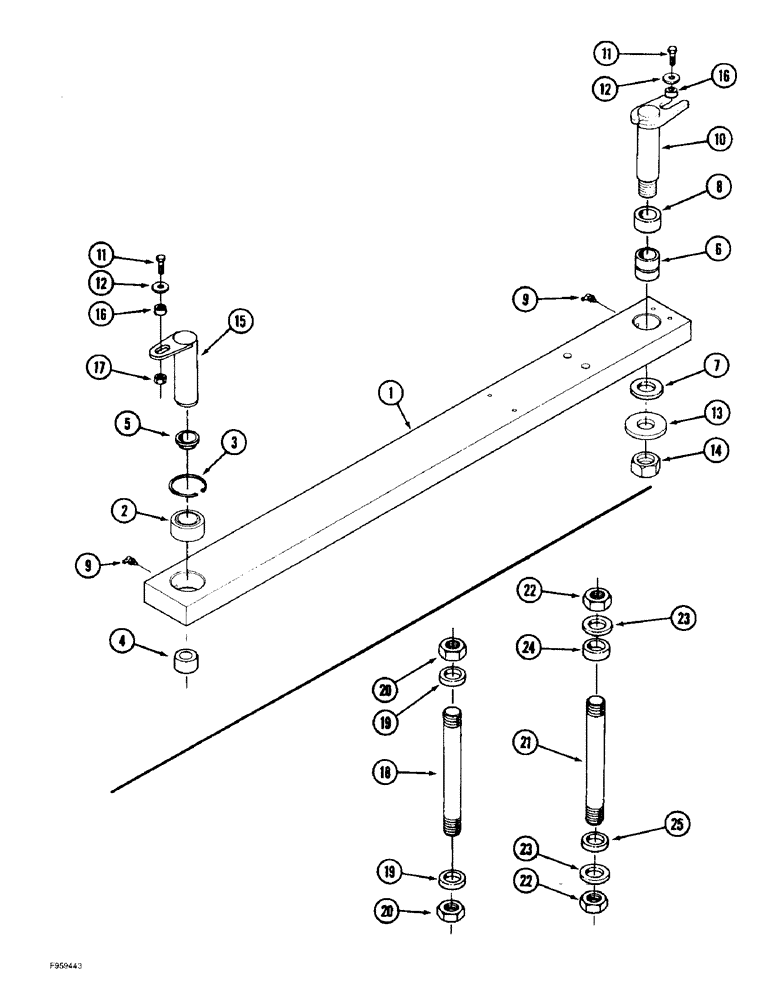

Запчасти Case IH 9330 (9-026) - FRAME CONNECTING LINK AND KING PIN (09) - CHASSIS/ATTACHMENTS

70-6245T93

LINK, CONNECTING

LINK ASSEMBLY - connecting, Includes: Ref. 1 - 3, no longer available, order components separately

1шт.

1

70-6246T3

LINK

- frame connecting

1шт.

2

613524C91

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

- self-aligning

1шт.

3

70-6083T1

RING, SNAP

RING - snap, bearing retaining

1шт.

4

70-5916T1

SPACER

- connecting link, lower

1шт.

5

70-6084T1

SPACER

- connecting link, upper

1шт.

6

70-6105T2

BUSHING,44.5mm ID x 57.12mm OD x 50.8mm L

- connecting link

1шт.

7

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

- flat, 1-3/4 x 2-3/4 x 1/4 inch

1шт.

8

70-5915T2

SPACER

- connecting link

1шт.

9

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

10

70-6193T2

PIN ASSY.

PIN - connecting pivot

1шт.

11

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

2шт.

12

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

2шт.

13

19-5636

WASHER,39.62mm ID x 88.9mm OD x 9.53mm Thk

- flat, 1-1/2 x 3-1/2 x 3/8 inch, hardened

1шт.

14

19-916

NUT

- hex, jam, 1-1/2 inch NF

1шт.

15

70-6232T2

PIN,44.32mm OD x 162.31mm L

- link retaining

1шт.

16

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

- pin

2шт.

17

425-1010

NUT,5/8"-11, G5

1шт.

18

70-4662T2

PIN,44.3mm OD x 251mm L

- king

1шт.

Models With 3-Point Hitch & Short Drawbar

1шт.

19

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

- flat, 1-3/4 x 2-3/4 x 1/4 inch

2шт.

Models With 3-Point Hitch & Short Drawbar

1шт.

20

70-6221T1

JAM NUT

- special locking

2шт.

Models With 3-Point Hitch & Short Drawbar

1шт.

21

70-4189T1

PIN,44.37mm OD x 339.85mm L

- threaded

1шт.

Models Without 3-Point Hitch or Models With 3-Point Hitch & Long Drawbar. See Figure 9-14 for Long Drawbar parts list.

1шт.

22

70-6221T1

JAM NUT

- special locking

2шт.

Models Without 3-Point Hitch or Models With 3-Point Hitch & Long Drawbar. See Figure 9-14 for Long Drawbar parts list.

1шт.

23

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

- flat, 1-3/4 x 2-3/4 x 1/4 inch

2шт.

Models Without 3-Point Hitch or Models With 3-Point Hitch & Long Drawbar. See Figure 9-14 for Long Drawbar parts list.

1шт.

24

70-5915T2

SPACER

- connecting link

1шт.

Models Without 3-Point Hitch or Models With 3-Point Hitch & Long Drawbar. See Figure 9-14 for Long Drawbar parts list.

1шт.

25

70-5913T1

SPACER

- drawbar tube

1шт.

Models Without 3-Point Hitch or Models With 3-Point Hitch & Long Drawbar. See Figure 9-14 for Long Drawbar parts list.

1шт.
