Запчасти Case IH 9330 (9-012) - DRAWBAR, EXTENDABLE, WITHOUT THREE POINT HITCH (09) - CHASSIS/ATTACHMENTS

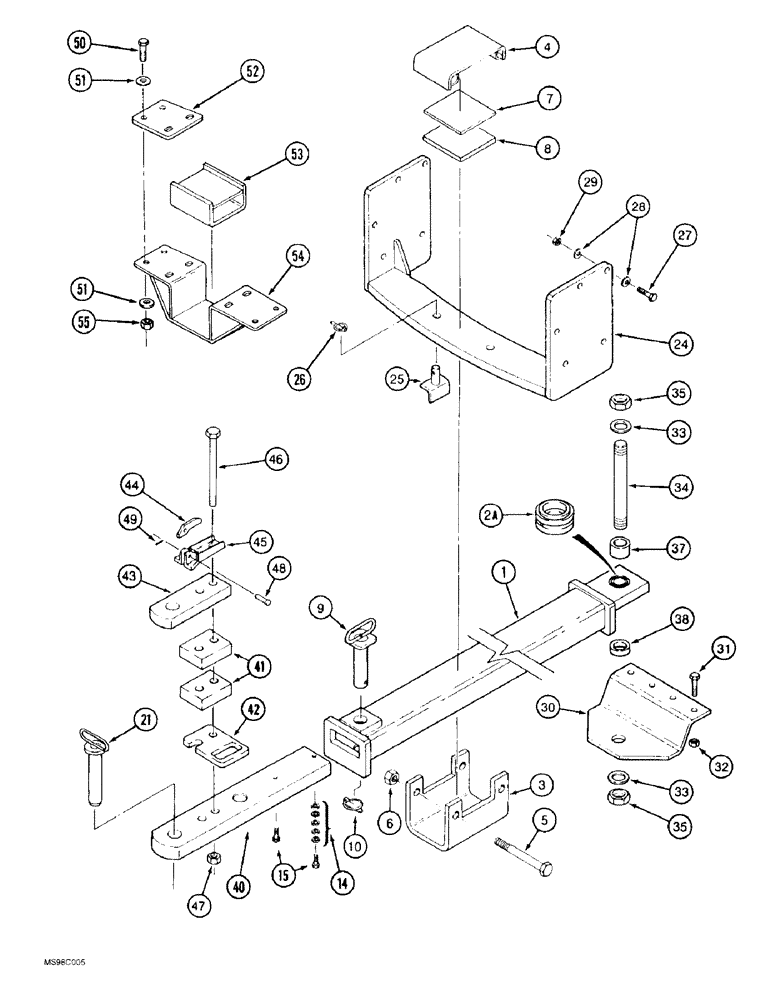

Схема запчастей Case IH 9330 - (9-012) - DRAWBAR, EXTENDABLE, WITHOUT THREE POINT HITCH (09) - CHASSIS/ATTACHMENTS
37
14
15
43
1
3
21
47
27
40
10
54
30
51
9
24
33
35
33
55
52
53
2a
42
4
50
8
34
51
41
28
25
32
49
35
6
48
46
45
26
44
29
31
7
38
5

Артикул

Название

Примечание

Количество

1

70-6291T1

TUBE,2181.4, 76.2 mm Length

ASSEMBLY - receiver, drawbar, Includes: Ref. 2A

1шт.

2a

613524C91

SPHERICAL BEARING,44.44mm ID x 71.44mm OD x 38.89mm W

- self-aligning

1шт.

3

70-4516T1

CLEVIS

YOKE - cradle, drawbar

1шт.

4

70-4555T1

COVER

- retaining, slide

1шт.

5

90-7494T1

SCREW,#0 - 8 x 9 1/4""

BOLT - hex, special, 1 NC x 9-1/4 inch

2шт.

6

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

7

70-5253T1

PLATE

- slide spacer

1шт.

8

70-4513T2

SKID/SHOE

SLIDER - plastic, drawbar

1шт.

9

70-1731T1

PIN

- retaining, drawbar

1шт.

10

19-1041

LOCK PIN,7/16" x 2"

PIN - klik, locking

1шт.

14

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

5шт.

15

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, grade 8

2шт.

21

70-1735T1

PIN

- retaining, drawbar

1шт.

24

70-5917T2

HANGER

- drawbar

1шт.

25

70-1937T2

SHAFT LOCK

PIN - retaining, drawbar

2шт.

26

517758R91

SPLIT PIN/SAFETY PIN

PIN - klik, locking

2шт.

27

426-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

- hex, 7/8 NC x 2-1/2 inch, grade 8

10шт.

28

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

- flat, 15/16 x 1-3/4 x 1/8 inch, hardened

20шт.

29

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

10шт.

30

70-6293T1

LARGE PLATE

PLATE - support, drawbar hinge

1шт.

31

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

4шт.

32

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

33

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

- flat, 1-3/4 x 2-3/4 x 1/4 inch

2шт.

34

70-4189T1

PIN,44.37mm OD x 339.85mm L

- threaded, drawbar and center link

1шт.

35

70-6221T1

JAM NUT

- special locking

2шт.

37

70-5915T2

SPACER

- connecting link

1шт.

38

70-5913T1

SPACER

- drawbar tube

1шт.

40

70-6913T1

DRAWBAR

- extendable

1шт.

41

70-6264T2

LARGE PLATE

BLOCK - spacer, 1-1/2 inch thick, if used

2шт.

42

70-6263T2

LARGE PLATE

PLATE - spacer block

1шт.

43

70-6265T1

LARGE PLATE

PLATE - hammerstrap, latch

1шт.

44

1965315C2

LEVER

- hammerstrap, latch

1шт.

45

70-6249T1

LATCH

- mount, machined

1шт.

46

90-7494T1

SCREW,#0 - 8 x 9 1/4""

BOLT - hex, special, 1 NC x 9-1/4 inch

2шт.

47

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

48

527-204

CLEVIS PIN,M12 x 43

PIN - clevis, 10 x 43 mm

1шт.

49

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

50

426-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 8

- hex, 1 NC x 4-1/2 inch, grade 8

8шт.

51

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1-1/16 x 2 x 13/64 inch, Hardened

16шт.

52

70-6845T1

LARGE PLATE

PLATE - clamp, if used, used only on 9330 Tractor

2шт.

53

70-6856T1

SUPPORT

BRACKET - stop, if used, used only on 9330 Tractor

1шт.

54

70-6848T1

ANCHOR

HANGER - support, if used, used only on 9330 Tractor

1шт.

55

429-1016

NUT,1"-8, G8

- hex, 1 inch NC, grade 8

8шт.

Выбрано товаров: 43
