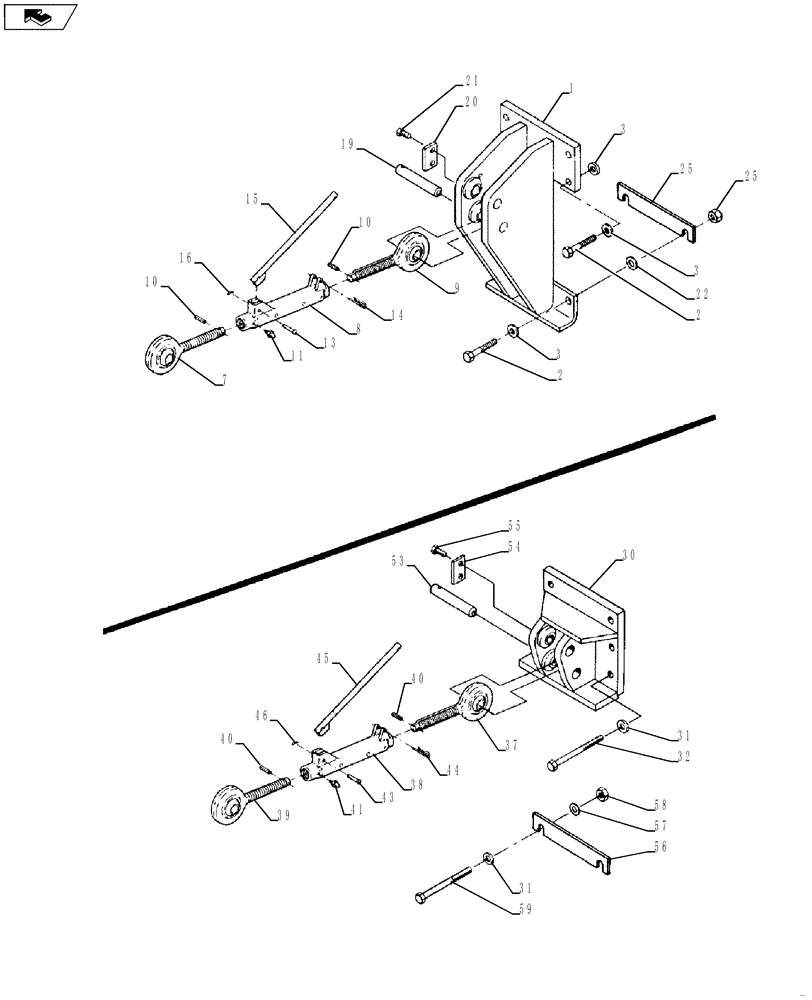

Запчасти Case IH 9330 (9-004) - HITCH UPPER LINK MOUNT - WITHOUT PTO / WITH PTO (09) - CHASSIS/ATTACHMENTS

1

70-6358T1

FRAME

MOUNT - upper link, without PTO

1шт.

2

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8

6шт.

3

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat 13/16" x 1 1/2" x .134", HDN

12шт.

1331855C1

DRAG LINK

LINK ASSEMBLY - upper, Includes: Ref. 7 - 16, no longer available, order component parts separately

1шт.

7

1981988C1

END ASSY.,1-3/4" - 5

SCREW ASSEMBLY - includes ball, right-hand thread

1шт.

8

1954223C2

ARM

TURNBUCKLE - upper link

1шт.

9

1282082C2

LIFT LINK END ASSY,1-3/4" - 5, LH Threads

SCREW ASSEMBLY - includes ball, left-hand thread

1шт.

10

838-3645

PIN,M6 x 45, Coiled

- roll, 6 x 45 mm

2шт.

11

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 drive type x 9/16 inch

2шт.

13

427-6200

CLEVIS PIN,3/8" x 2", HDN

1шт.

14

1978738C1

HAIR PIN COTTER

3/16"

1шт.

15

1331863C2

HANDLE

- turnbuckle

1шт.

16

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

19

70-4256T1

PIN

- 6-3/4 inch long

1шт.

20

70-3082T2

LARGE PLATE

BLOCK - pin retaining

1шт.

21

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

2шт.

22

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, 13/16 x 1-1/2 x 7/32 inch, hardened

2шт.

24

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

25

70-6405T1

SHIM

- mounting

1шт.

30

70-4886T1

SUPPORT

MOUNT - upper link, with PTO

1шт.

31

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat, with PTO 13/16" x 1 1/2" x .134", HDN

10шт.

32

426-12136

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 8

- hex, 3/4 NC x 8-1/2 inch, grade 8, with pto

6шт.

1331855C1

DRAG LINK

LINK ASSEMBLY - upper, Includes: Ref. 37 - 46, no longer available, order component parts separately, with pto

1шт.

37

1981988C1

END ASSY.,1-3/4" - 5

SCREW ASSEMBLY - 1-3/4" thread, includes ball, right-hand thread, with pto

1шт.

38

1954223C2

ARM

TURNBUCKLE - 1-3/4" thread, upper link, with pto

1шт.

39

1282082C2

LIFT LINK END ASSY,1-3/4" - 5, LH Threads

SCREW ASSEMBLY - includes ball, left-hand thread, with pto

1шт.

40

838-3645

PIN,M6 x 45, Coiled

- roll, 6 x 45 mm, with pto

2шт.

41

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 drive type x 9/16 inch, with pto

2шт.

43

427-6200

CLEVIS PIN,3/8" x 2", HDN

with PTO 3/8" x 2", HDN

1шт.

44

1978738C1

HAIR PIN COTTER

3/16", with PTO

1шт.

45

1331863C2

HANDLE

- turnbuckle, with pto

1шт.

46

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), , with PTO 3/32" x 3/4"

1шт.

53

70-4256T1

PIN

- 6-3/4 inch long, with pto

1шт.

54

70-3082T2

LARGE PLATE

BLOCK - pin retaining, with pto

1шт.

55

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8, with PTO

2шт.

56

70-6405T1

SHIM

- mounting, with pto

1шт.

57

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, 13/16 x 1-1/2 x 7/32 inch, hardened, with pto

2шт.

58

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC, with pto

2шт.

59

426-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 8

- hex, 3/4 NC x 7-1/2 inch, grade 8, with PTO

2шт.

R/B L130035 SPACER QTY 2 AND 426-12128 CAPSCREW QTY 2 ECN F990082 NAPO TECH NOTE

1шт.
