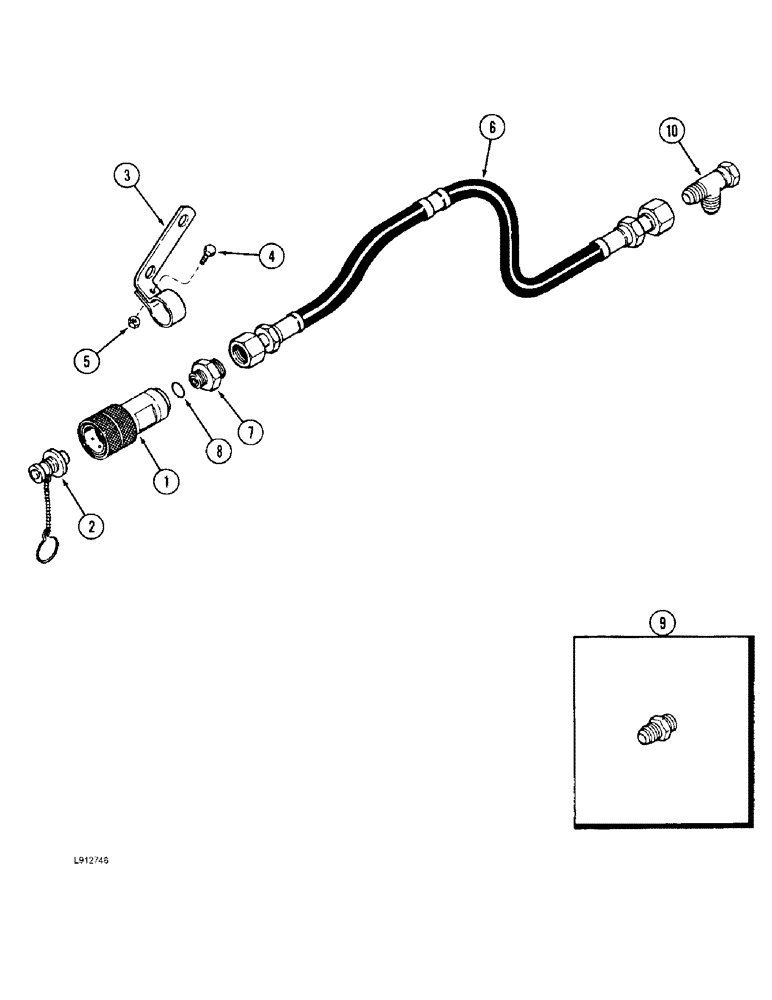

Запчасти Case IH 9330 (8-076) - HYDRAULIC MOTOR OIL RETURN KIT (08) - HYDRAULICS

35-1850T91

PACKAGE

KIT - oil return, hydraulic motor, no longer available, order component parts separately, Includes: Ref. 1 - 10

1шт.

1

1272400C1

COUPLING

COUPLER - self sealing, female

1шт.

2

1954133C1

PLUG

PLUG - coupling, dust

1шт.

3

1289294C1

SUPPORT

BRACKET - mounting, coupler

1шт.

4

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

1шт.

5

825-1408

NUT,M8, Cl 8

1шт.

6

31-2256

HOSE,15.88mm ID x 3505.2mm L, SAE 100R2

- oil return

1шт.

7

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

218-445

HYD CONNECTOR,7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 7/8-14 flare x 1/2 inch PT

1шт.

10

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- swivel, 7/8-14 inch flare branch x flare x swivel, not used in this application

1шт.
