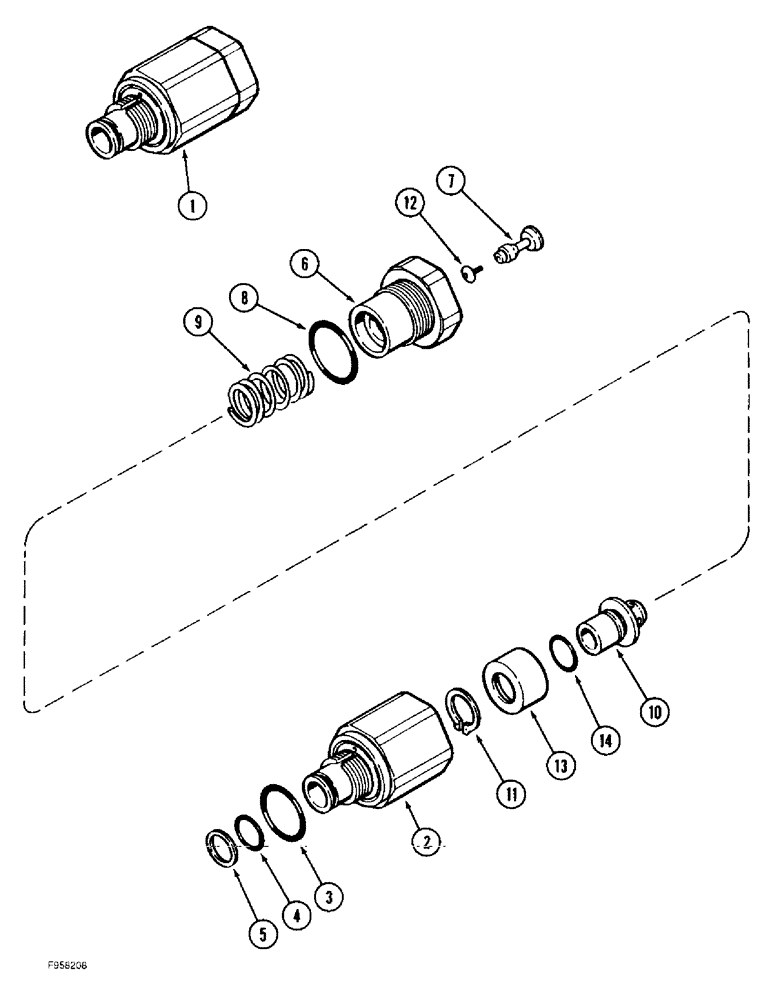

Запчасти Case IH 9330 (8-068) - PRIORITY REMOTE HYDRAULIC VALVE KIT, WITH LOAD CHECK (08) - HYDRAULICS

35-1753T91

VALVE

KIT - valve, priority remote, no longer available, order component parts separately, continued, Includes: Ref. 1 - 14

1шт.

1986840C1

VALVE

ASSEMBLY - remote control, with load check, replaces A52404 valve assembly, Includes: Ref. 1 - 14

1шт.

1

A52422

VALVE

CHECK ASSEMBLY - load, remote valve, Includes: Ref. 2 - 14

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - load check

1шт.

3

A52427

O-RING,1.301" ID x 1.441" OD

-

1шт.

4

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

-018, 70 Duro, .739" ID x .070" Thk

1шт.

5

A52424

BACK-UP RING

RING - backup, sleeve

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG - load check

1шт.

7

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

8

238-6124

O-RING,0.103" Thk x 1.237" ID, -124, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING - load check

1шт.

10

NSS

NOT SOLD SEPARAT

PISTON - load check

1шт.

11

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW - button head

1шт.

13

NSS

NOT SOLD SEPARAT

SPACER - load check

1шт.

14

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

-018, 70 Duro, .739" ID x .070" Thk

1шт.
