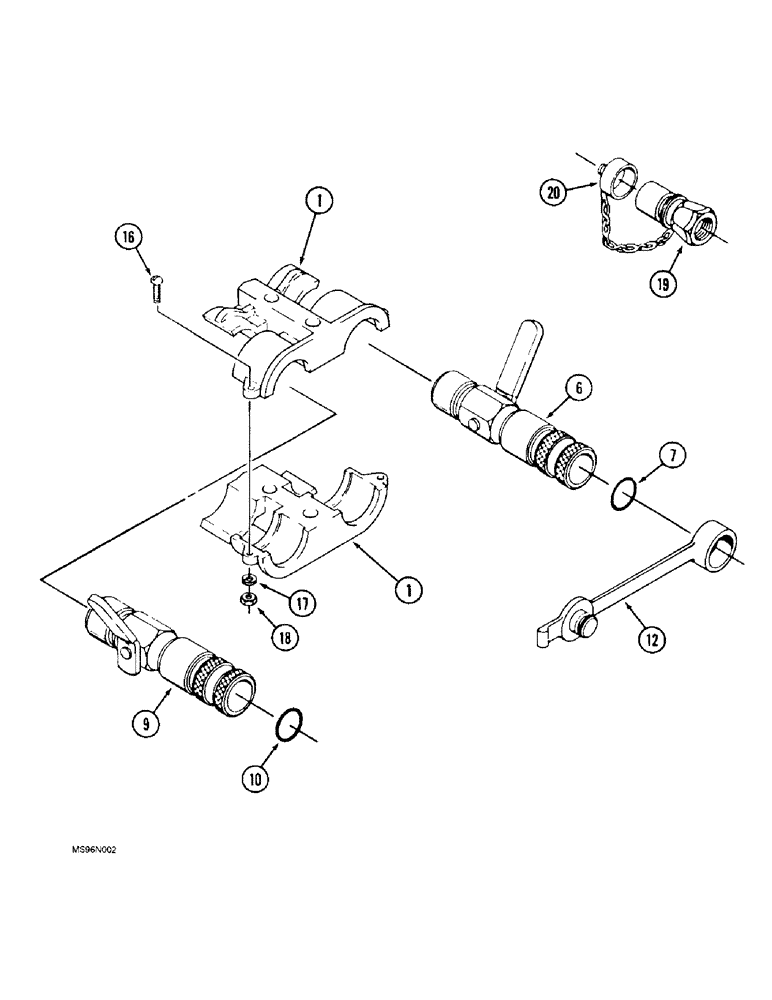

Запчасти Case IH 9330 (8-062) - QUICK DISCONNECT COUPLER ASSEMBLY (08) - HYDRAULICS

50-3349T93

CLUTCH ASSEMBLY

COUPLER ASSEMBLY - quick disconnect, not available as an assembly, order components separately, Includes: Ref. 1 - 18

1шт.

1

90-7634T1

MOUNTING CLIP

CLAMP - coupler, upper and lower

2шт.

6

50-1459T91

PUSH-PULL COUPLING

COUPLER ASSEMBLY - quick, red handle, Includes: Ref. 7

1шт.

IT NO. 6 SHOULD BE RH 50-1459T91

1шт.

7

238-6211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

1шт.

9

50-1460T91

PUSH-PULL COUPLING

COUPLER ASSEMBLY - quick, yellow handle, Includes: Ref. 10

1шт.

IT NO. 9 SHOULD BE LH, 50-1460T91

1шт.

10

238-6211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

1шт.

12

50-2267T1

PLUG

CAP - dust, cartridge

2шт.

16

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch

2шт.

17

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

18

225-14110

NUT,#10-24

2шт.

19

1-7141

FITTING

CARTRIDGE - coupler, remote

2шт.

20

1-7142

CAP

- dust, coupler, rubber

2шт.
