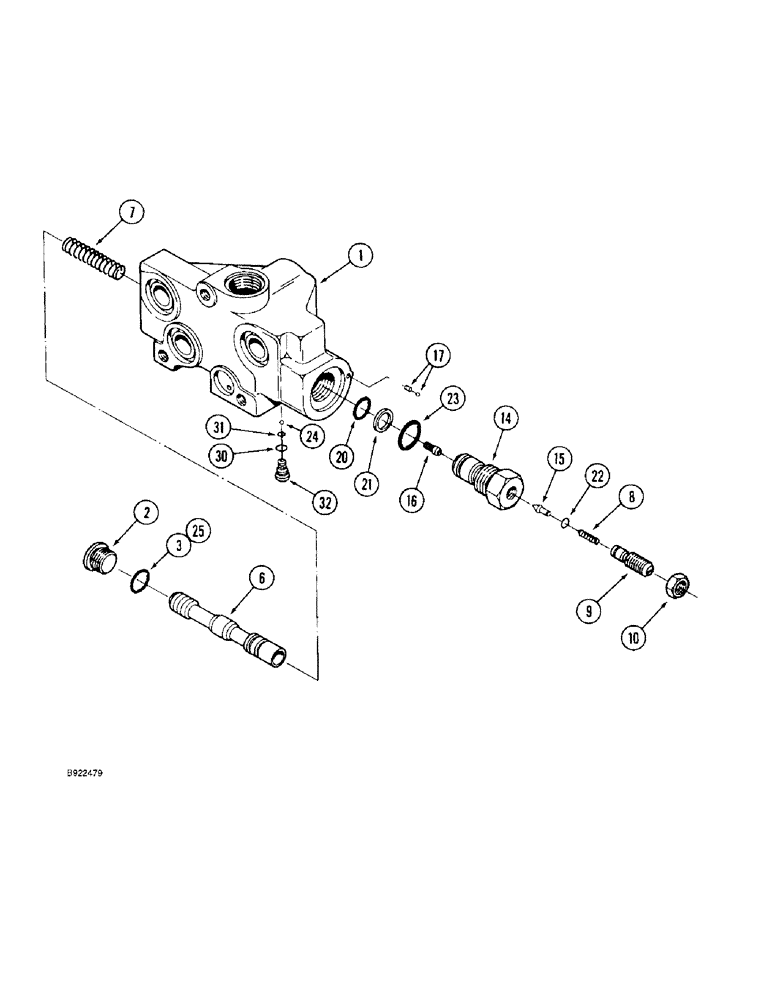

Запчасти Case IH 9330 (8-060) - HYDRAULIC REMOTE VALVE INLET BODY, WITH PRIORITY VALVE (08) - HYDRAULICS

50-2960T92

VALVE

SECTION ASSEMBLY - valve, with priority valve, Includes: Ref. 1 - 32

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - inlet

1шт.

2

86625138

PLUG,7/18" - 14

Includes Ref. 3 Hex Soc, 7/8"-14 ORB

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

NSS

NOT SOLD SEPARAT

SPOOL - compensator

1шт.

7

50-2961T1

SPRING

- spool

1шт.

8

50-2578T1

SPRING

- poppet

1шт.

9

50-2579T1

ADJUSTMENT SCREW

- set, pressure adjustment

1шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Jam 1/2"-13, G5

1шт.

14

50-2580T1

SPINDLE

HOUSING - relief valve

1шт.

15

D78469

PLUNGER

- relief assembly, replaces 50-1751T1 poppet

1шт.

16

50-2581T1

FILTER

- screen

1шт.

17

A47105

PLUG

- expansion

1шт.

50-2582T1

SEAL KIT

KIT - seal, inlet, Includes: Ref. 20 - 32

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - seal, relief valve

1шт.

21

NSS

NOT SOLD SEPARAT

RING - backup

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - seal, poppet

1шт.

23

NSS

NOT SOLD SEPARAT

O-RING - seal, valve housing

1шт.

24

104916

BALL BEARING,0.1875 mm OD

- steel

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

50-3002T91

PLUG

- shuttle

1шт.

R30185

SEAL KIT

KIT - seal, Includes: Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING - seal, shuttle

1шт.

31

NSS

NOT SOLD SEPARAT

O-RING - seal, shuttle

1шт.

32

NSS

NOT SOLD SEPARAT

SEAT - shuttle plug

1шт.
