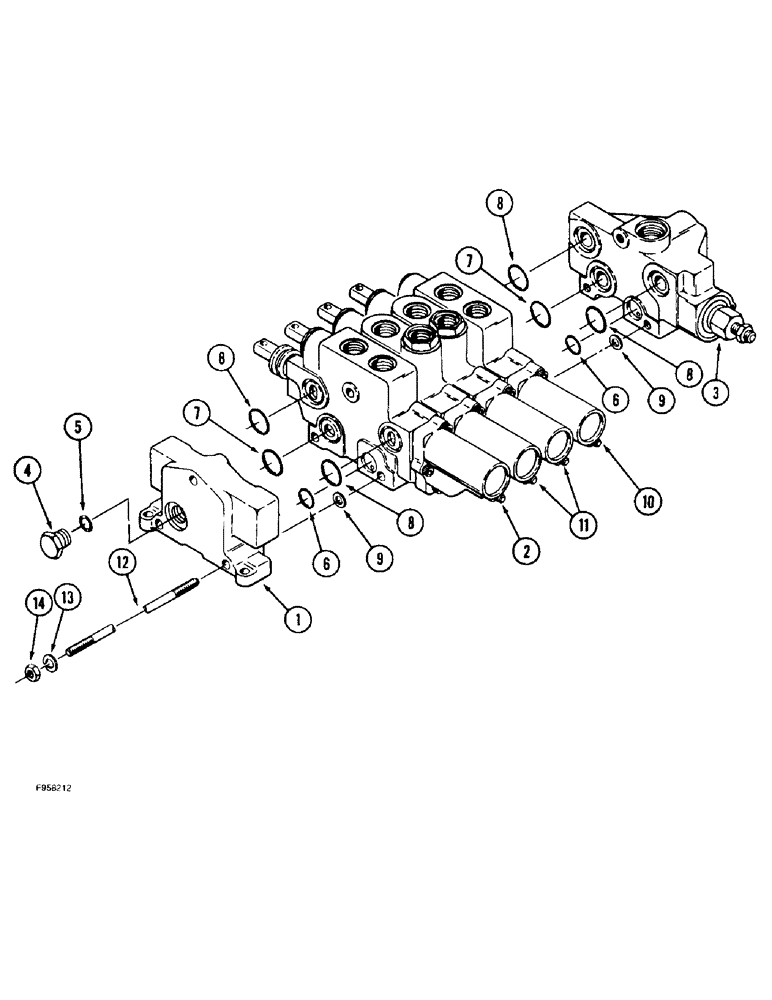

Запчасти Case IH 9330 (8-046) - HYDRAULIC REMOTE VALVE ASSEMBLY, WITH LOAD LOCKS (08) - HYDRAULICS

50-3571T91

VALVE

ASSEMBLY - remote, four spool, production equipped on some Australian models only, no longer available, order component parts separately, Includes: Ref. 1 - 14

1шт.

1

A52403

BODY

COVER - end

1шт.

2

50-2302T91

ASSEMBLY

SECTION ASSEMBLY - valve, float, parts list Figure 8-48 and 8-50

2шт.

3

50-2960T92

VALVE

SECTION ASSEMBLY - valve, with priority valve, parts list Figure 8-60

1шт.

4

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

- hex, 1-1/16-12 inch O-ring boss, used without three point hitch, Includes: Ref. 5

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

2-3792T1

SEAL KIT

- seal, valve section, Includes: Ref. 6 - 9

1шт.

6

238-6210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 6, 90 Duro

- 3/4 ID x 1/8 inch wide

1шт.

7

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1шт.

8

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

2шт.

9

D77566

SHIM,.0030" Thk

Sections .0030" Thk

3шт.

10

50-3562T91

VALVE, CONTROL

SECTION ASSEMBLY - priority, parts list Figure 8-52 and 8-54

1шт.

11

50-3563T91

HYD VALVE SECTION

SECTION ASSEMBLY - load lock, parts list Figure 8-56 and 8-58

2шт.

12

A147508

STUD

- 3/8 NC x 11-3/4 inch, four spool remote

3шт.

13

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

14

425-106

NUT,3/8"-16, Cl 5

6шт.
