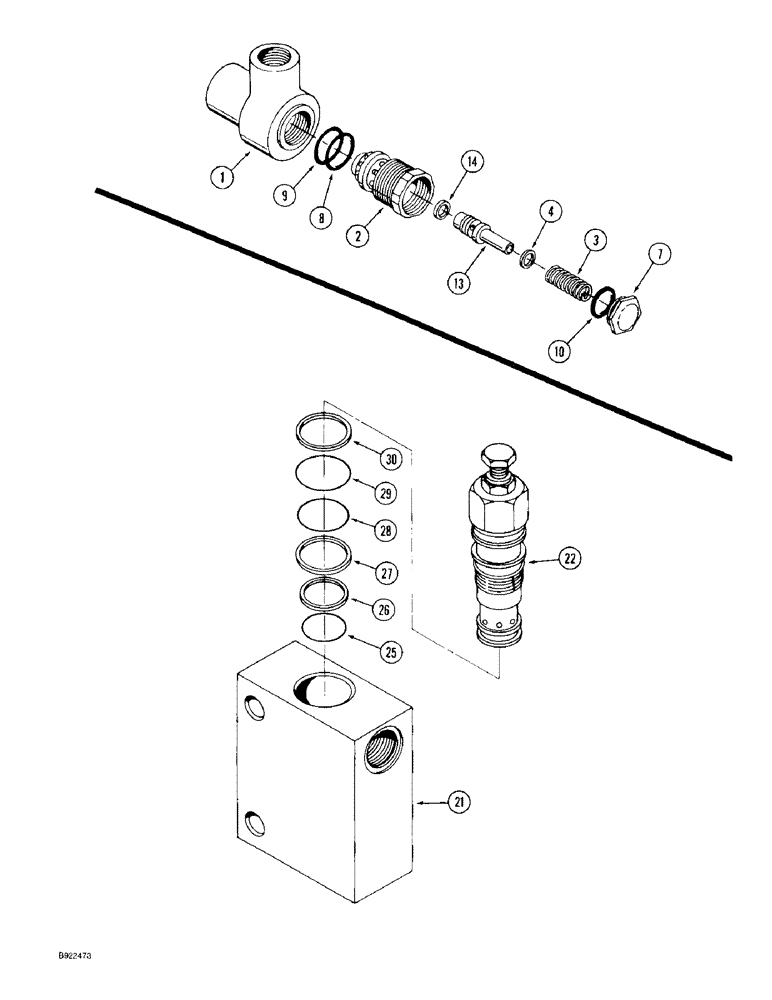

Запчасти Case IH 9330 (8-040) - HYDRAULIC RELIEF VALVE / HYDRAULIC PRESSURE REDUCING VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
50-2291T91
VALVE
ASSEMBLY - relief, hydraulic, Includes: Ref. 1 - 14
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING - valve
1шт.
2
18-1703
VALVE, PRESSURE RELI
CARTRIDGE - relief
1шт.
3
1-4458
SPRING
- poppet relief
1шт.
4
D39712
SHIM
- 0.254 mm (.01 inch) thick
1шт.
7
D39716
PLUG
CAP - circuit relief valve, replaces 18-923 cap
1шт.
18-1418
SEAL KIT
KIT - seal, valve, Includes: Ref. 8 - 10
1шт.
8
NSS
NOT SOLD SEPARAT
O-RING - seal
1шт.
9
NSS
NOT SOLD SEPARAT
O-RING - seal
1шт.
10
NSS
NOT SOLD SEPARAT
O-RING - seal
1шт.
18-1417
SEAL
- poppet, relief, Includes: Ref. 13 and 14
1шт.
13
NSS
NOT SOLD SEPARAT
POPPET - relief
1шт.
14
NSS
NOT SOLD SEPARAT
RING - piston
1шт.
50-3293T91
VALVE
ASSEMBLY - pressure reducing, hydraulic, Includes: Ref. 21 - 30
1шт.
21
NSS
NOT SOLD SEPARAT
BODY - valve, hydraulic pressure reducing
1шт.
22
50-2715T91
CARTRIDGE
- pressure reducing, hydraulic valve
1шт.
50-2717T1
SEAL KIT
KIT - seal, cartridge, Includes: Ref. 25 - 30, hydraulic pressure reducing valve
1шт.
25
NSS
NOT SOLD SEPARAT
O-RING - seal, hydraulic pressure reducing valve
1шт.
26
NSS
NOT SOLD SEPARAT
WASHER - backup, hydraulic pressure reducing valve
1шт.
27
NSS
NOT SOLD SEPARAT
WASHER - backup, hydraulic pressure reducing valve
1шт.
28
NSS
NOT SOLD SEPARAT
O-RING - seal, hydraulic pressure reducing valve
1шт.
29
NSS
NOT SOLD SEPARAT
O-RING - seal, hydraulic pressure reducing valve
1шт.
30
NSS
NOT SOLD SEPARAT
WASHER - backup, hydraulic pressure reducing valve
1шт.
Выбрано товаров: 23
