Запчасти Case IH 9330 (8-034) - HITCH LIFT CYLINDER ASSEMBLY (08) - HYDRAULICS

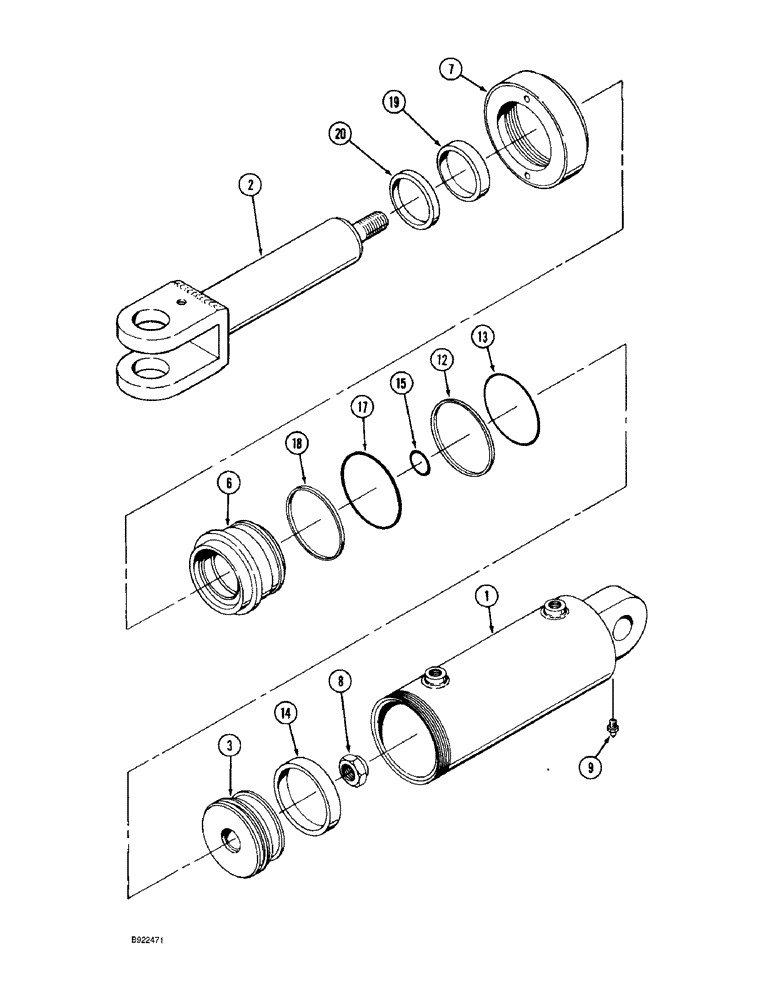

Схема запчастей Case IH 9330 - (8-034) - HITCH LIFT CYLINDER ASSEMBLY (08) - HYDRAULICS
17
15
18
7
2
6
19
1
14
13
9
12
20
3
8

Артикул

Название

Примечание

Количество

50-3499T91

CYLINDER ASSY.

CYLINDER ASSEMBLY - three point hitch, Includes: Ref. 1 - 20

1шт.

1

50-3501T1

HYD CYL SLEEVE

TUBE - cylinder

1шт.

2

50-3500T1

PISTON ROD

ROD - cylinder, 422 mm (16-5/8 inch) long

1шт.

3

50-2442T1

JACK PISTON

PISTON - cylinder

1шт.

6

50-2436T1

CYLINDER END CAP

GUIDE - rod

1шт.

7

50-2440T1

CLAMP

COLLAR - locking, guide

1шт.

8

19-5582

LOCK NUT

- hex, self-locking, 1-1/4 inch NF

1шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

35-1642T91

SEAL KIT

KIT - seal, cylinder, no longer available, order components separately, Includes: Ref. 12 - 20

1шт.

12

50-2443T1

PISTON RING

RING - piston

1шт.

13

50-2444T1

O-RING,3.987" ID x 0.103" Width

- seal, piston

1шт.

14

50-2439T1

WEAR RING,107.95mm ID x 114.3mm OD x 15.88mm Thk

RING - wear, piston

1шт.

15

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

Rod -218, 70 Duro, 1.234" ID x .139" Thk

1шт.

17

50-2438T1

O-RING,0.21" Thk x 4.1" ID, -346, Cl 5, 75 Duro

- guide

1шт.

18

50-2437T1

WASHER

WASHER - backup, O-ring

1шт.

19

50-3600T1

SEAL

- U-cup, piston rod, replaces 1-9858T1 seal

1шт.

20

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Выбрано товаров: 17
