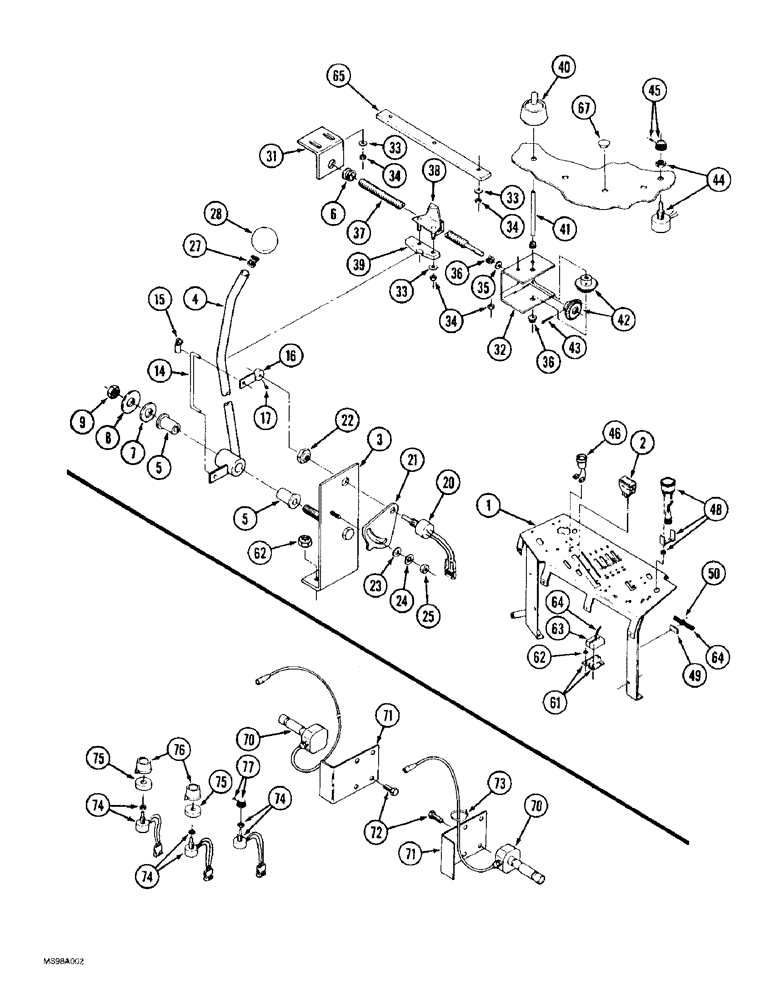

Запчасти Case IH 9330 (8-030) - THREE POINT HITCH CONTROLS, ELECTRONIC CONTROLLED / DRAFT SENSING KIT (IF EQUIPPED) (08) - HYDRAULICS

1

60-6979T2

PANEL

- control

1шт.

2

60-7018T1

IGNITION SWITCH

SWITCH - rocker, hitch actuating

1шт.

3

60-6152T1

SUPPORT

BRACKET - mounting, lever

1шт.

4

60-6794T1

LEVER

- control rod, actuating

1шт.

5

90-4367T1

BRONZE BUSHING

BUSHING - pivot

2шт.

6

19-6113

NYLON BEARING,0.484" ID x 0.578" OD x 0.14"

BUSHING - nylon, split, flanged

1шт.

7

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

1шт.

8

19-5648

SPRING WASHER

SPRING - Belleville, 1/2 inch

1шт.

9

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

1шт.

14

60-2802T1

STEM

Rod, Linkage, Potentiometer Actuating

1шт.

15

60-2404T1

RETAINER

- actuating rod

2шт.

16

60-6172T2

LEVER

ARM - actuating, potentiometer

1шт.

17

178-801

SET SCREW,Hex Soc, #10-24 x 1/4"

SCREW - set, hex socket headless, No. 10 NC x 1/4 inch, cup point

1шт.

20

122756A3

POTENTIOMETER,1000 Ohm, 8V

Single, 1K, and Lower 1000 Ohm, 8V

1шт.

21

60-7116T1

SUPPORT

Bracket, Adjusting, Potentiometer

1шт.

22

60-6155T1

NUT

Potentiometer Mounting

1шт.

23

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

24

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - internal tooth lock, 1/4 inch

1шт.

25

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

27

D38662

RING

- retainer, knob

1шт.

28

60-4273T1

BALL KNOB

KNOB - lever, use with Loctite 422

1шт.

31

60-6796T1

SUPPORT

BRACKET - mounting, rod

1шт.

32

60-4757T1

SUPPORT

BRACKET - mounting, gear and rod

1шт.

33

495-31022

WASHER,#10

7шт.

34

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

6шт.

35

19-5924

SPRING WASHER

- spring, 1/4 inch

1шт.

36

19-6129

NYLON BEARING

BUSHING - split flange, 11/32 ID x 7/16 inch OD

3шт.

37

60-6797T1

THREADED ROD

ROD - threaded, depth actuating

1шт.

38

60-3950T1

INDICATOR

- depth

1шт.

39

60-3953T1

LARGE PLATE

TAB - lever retainer

1шт.

40

60-3957T1

BUTTON

KNOB - depth actuating

1шт.

41

60-3949T1

ROD

- gear actuating

1шт.

42

60-4275T1

GEAR, BEVEL

GEAR - matched set, depth actuating

1шт.

43

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

2шт.

44

A186061

POTENTIOMETER,10,000 Ohm, 8V

Electrical 10,000 Ohm, 8V

1шт.

45

A186263

KNOB

Lower Rate

1шт.

46

1964672C1

LIGHT

- indicator, amber, 14 volt

1шт.

48

60-7222T1

GAUGE ASSY.

GAUGE - display, seven segment, led, replaces 60-7015T1 gauge

1шт.

49

22-823

MOUNT

MOUNT - adhesive back, strap

1шт.

50

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

61

60-6065T1

ANGLE BAR

ANGLE - retaining, foam

2шт.

62

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

6шт.

63

60-6066T1

FOAM

SEAL - foam

2шт.

64

60-7000T2

HARNESS

- electronic depth control, Serial Range: -JEE0069665

1шт.

64

60-7273T1

HARNESS

- electronic depth control, Start Serial: JEE0069665

1шт.

65

60-3954T1

LARGE PLATE

STRIP - wear, lever

1шт.

67

60-4258T1

PLUG

- hole, flow control access

3шт.

35-1743T92

PACKAGE

KIT - Draft Sensing, Includes: Ref. 70 - 77, no longer available, order component parts separately

1шт.

70

1964916C3

PIN

- lower link, draft sensing, kit (if equipped)

2шт.

71

70-5285T2

LARGE PLATE

PLATE - retainer, draft sensing pin, kit (if equipped)

2шт.

72

19-1108

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8, draft sensing kit (if equipped)

8шт.

73

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch, Draft sensing kit (If equipped)

1шт.

74

A186061

POTENTIOMETER,10,000 Ohm, 8V

Electrical, Response Speed and Load, Draft Sensing Kit, if Equipped 10,000 Ohm, 8V

3шт.

75

60-4919T1

WASHER

- foam, draft sensing kit (if equipped)

2шт.

76

60-3958T1

BUTTON

Knob, Control, Travel and Load, Draft Sensing Kit, if Equipped

2шт.

77

A186263

KNOB

Response Speed, Draft Sensing Kit, if Equipped

1шт.
