Запчасти Case IH 9330 (8-028) - THREE POINT HITCH HYDRAULICS, LIFT CYLINDERS AND LINES, ELECTRONIC CONTROLLED (08) - HYDRAULICS

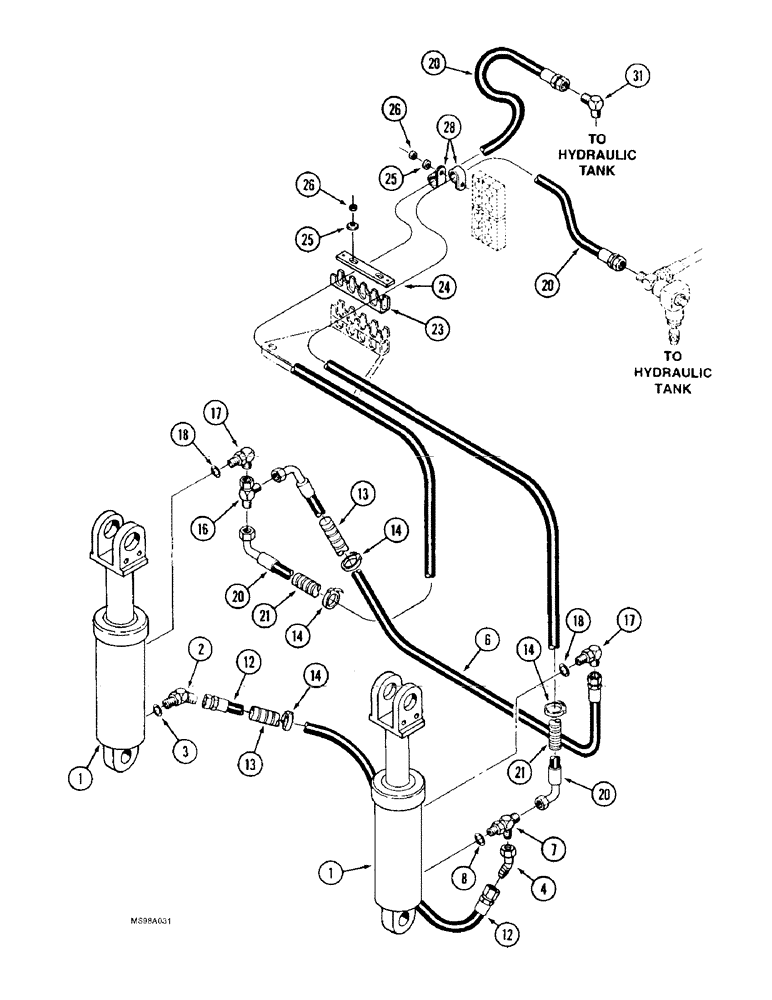

Схема запчастей Case IH 9330 - (8-028) - THREE POINT HITCH HYDRAULICS, LIFT CYLINDERS AND LINES, ELECTRONIC CONTROLLED (08) - HYDRAULICS
21
20
24
28
17
25
16
14
2
13
7
1
4
23
12
12
14
8
26
20
20
6
17
31
20
1
25
18
14
14
3
18
26
21
13

Артикул

Название

Примечание

Количество

1

50-3499T91

CYLINDER ASSY.

CYLINDER ASSEMBLY - three point hitch, parts list Figure 8-34

2шт.

2

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 3/4-16 inch flare x adj O-ring boss, Incl. Ref 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree, 3/4-16 inch flare x swivel

1шт.

6

31-3036

HOSE ASSY.

HOSE - 1270 mm (50 inch) long, hydraulic, Serial Range: cylinder-cylinder

1шт.

7

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss, Includes: Ref. 8

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

31-3044

HOSE ASSY.

HOSE - 1143 mm (45 inch) long, hydraulic, Serial Range: cylinder-cylinder

1шт.

13

50-2905T1

CONDUIT

- hose protector, 1143 mm (45 inch) long, cut from S119717X bulk conduit, see below

2шт.

14

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

12шт.

16

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

1шт.

17

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 18

2шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

20

31-2941

HOSE ASSY.

HOSE - 2786 mm (111 inch) long, cylinder to pressure and return

2шт.

21

50-3087T1

CONDUIT

- hose protective, 1499 mm (59 inch) long, cut from S119717X bulk conduit, see below

2шт.

23

50-3339T1

SHIN

CLAMP - hose

1шт.

24

50-3449T1

LARGE PLATE

PLATE - clamp mounting

1шт.

25

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

2шт.

26

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

28

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

2шт.

31

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 7/8-14 flare x 1/2 inch PT

1шт.

S119717X

CONDUIT

- bulk, 25 (1) ID x 4877 mm (192 inch) long

1шт.

Выбрано товаров: 22
