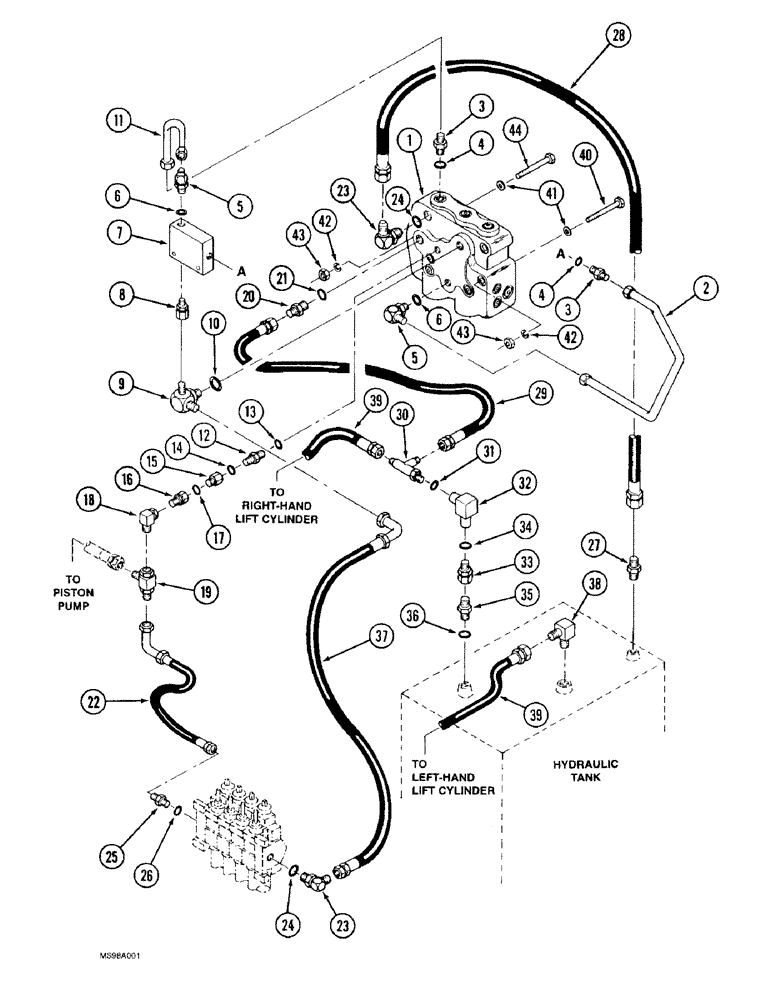

Запчасти Case IH 9330 (8-026) - THREE POINT HITCH HYDRAULICS, ELECTRONIC CONTROLLED, S/N JEE0069665 & AFTER (08) - HYDRAULICS

1

246245A1

VALVE

ASSEMBLY - control, parts list Figure 8-38

1шт.

2

50-3639T1

HYD TUBE

TUBE - pilot pressure, pressure valve to control valve

1шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 4

2шт.

5

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 6

2шт.

7

50-3293T91

VALVE

ASSEMBLY - pressure reducing, pars list Figure 8-40

1шт.

8

31-3087

FITTING

ADAPTER - straight

1шт.

9

50-3621T1

ELBOW

- 90 degree, Includes: Ref. 10

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

11

50-3638T1

HYD TUBE

TUBE - pressure reducing

1шт.

12

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Adapter - straight, Incl Ref. 13 11/16"-16 ORFS x 9/16"-18 ORB

1шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

15

50-3649T1

VALVE

- check

1шт.

16

50-3650T1

ADAPTER

- straight, special, Includes: Ref. 17

1шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

18

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

1шт.

19

50-3593T1

TEE

VALVE - shuttle

1шт.

20

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

31-3209

HOSE

- 602 mm (24 inch) long (Replaces 31-3210)

1шт.

23

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 24

2шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

25

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ADAPTER - straight, 7/16-20 flare x 9/16-18 inch O-ring boss, Incl. Ref. 26

1шт.

27

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 1-1/16-12 flare x 1/2 inch PT

1шт.

28

31-3208

HOSE

- 326 mm (13 inch) long

1шт.

29

31-2841

HOSE

- 508 mm (20 inch) long

1шт.

30

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 7/8-14 inch flare branch x flare x adj O-ring boss, Includes: Ref. 31

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

32

50-2291T91

VALVE

ASSEMBLY - relief, parts list Figure 8-40

1шт.

33

31-117

ADAPTER

- straight, 1/2 PT x 7/8-14 inch thread, Includes: Ref. 34

1шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

35

217-196

FITTING,1/2" - 14 Male NPTF x 1/2" - 14 Male NPTF

NIPPLE - straight, 1/2 PT x 1-13/16 inch, Includes: Ref. 36

1шт.

36

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

37

31-2839

HOSE ASSY.

HOSE - 1067 mm (42 inch) long, hitch control valve to remote valve

1шт.

38

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 7/8-14 flare x 1/2 inch PT

1шт.

39

31-2941

HOSE ASSY.

HOSE - 2786 mm (111 inch) long, 2786mm (111 inches) long, hydraulic tank to lift cylinder

2шт.

40

426-664

BOLT,Hex, 3/8" - 16 x 4", Gr 8

- hex, 3/8 NC x 4 inch, grade 8

1шт.

41

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

42

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

43

425-106

NUT,3/8"-16, Cl 5

2шт.

44

426-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 8

- hex, 3/8 NC x 3-1/2 inch, grade 8

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
