Запчасти Case IH 9330 (8-022) - THREE POINT HITCH HYDRAULICS, MANUAL CONTROLLED HITCH SYSTEM (IF EQUIPPED) (08) - HYDRAULICS

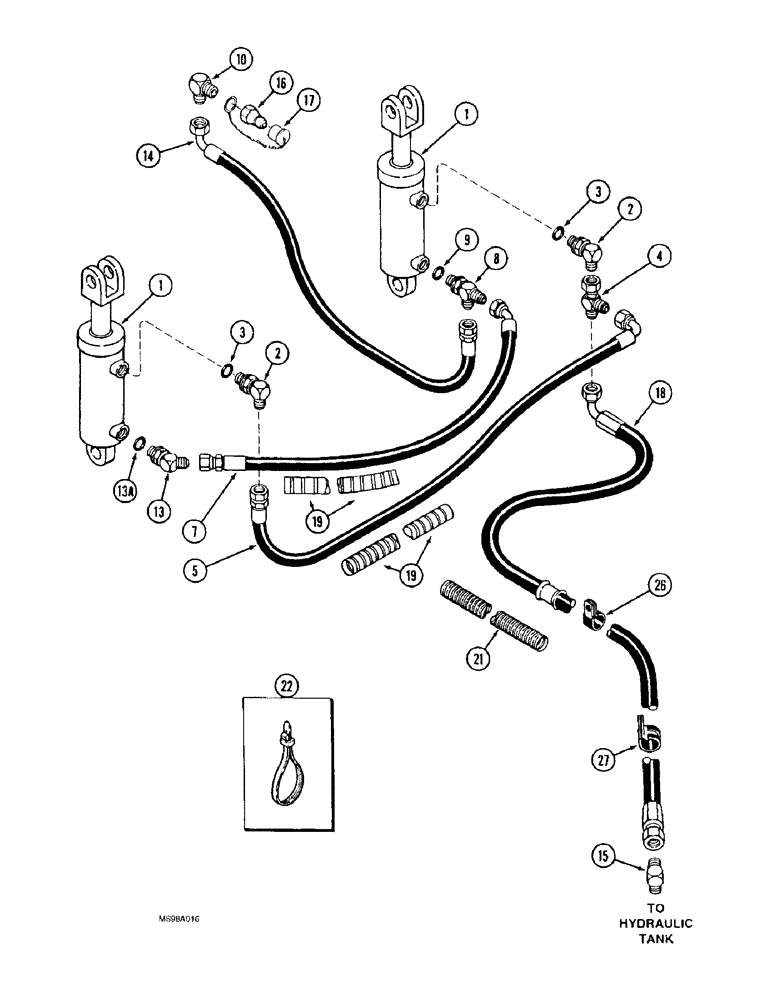

Схема запчастей Case IH 9330 - (8-022) - THREE POINT HITCH HYDRAULICS, MANUAL CONTROLLED HITCH SYSTEM (IF EQUIPPED) (08) - HYDRAULICS
9
13a
16
4
17
1
3
10
21
19
3
13
5
22
18
26
14
7
1
19
27
8
2
15
2

Артикул

Название

Примечание

Количество

1

50-3499T91

CYLINDER ASSY.

CYLINDER ASSEMBLY - three point hitch, parts list Figure 8-34

2шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x swivel

1шт.

5

31-3036

HOSE ASSY.

HOSE - 1270 mm (50 inch) long, hydraulic, upper cross over

1шт.

7

31-3044

HOSE ASSY.

HOSE - 1143 mm (45 inch) long, hydraulic, lower cross over

1шт.

8

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss, Includes: Ref. 9

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 flare x 1/2 inch PT

1шт.

13

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 3/4-16 inch flare x adj O-ring boss, Incl. Ref 13A

1шт.

13a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

31-1288

HOSE

- 610 mm (24 inch) long, Serial Range: coupler-cylinder

1шт.

15

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 7/8-14 flare x 1/2 inch PT

1шт.

16

1-7141

FITTING

CARTRIDGE - coupler, remote

1шт.

17

1-7142

CAP

- dust, coupler, rubber

1шт.

18

31-2941

HOSE ASSY.

HOSE - 2786 mm (111 inch) long, Serial Range: tee-drain

1шт.

21

50-3087T1

CONDUIT

- hose protective, 1499 mm (59 inch) long, cut from S119717X bulk conduit, see below

3шт.

22

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

9шт.

26

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

- P-type, 1-1/16 inch ID

1шт.

27

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

1шт.

S119717X

CONDUIT

- bulk, 25 (1) ID x 4877 mm (192 inch) long

1шт.

Выбрано товаров: 21
