Запчасти Case IH 9330 (8-018) - HYDRAULIC OIL TANK (08) - HYDRAULICS

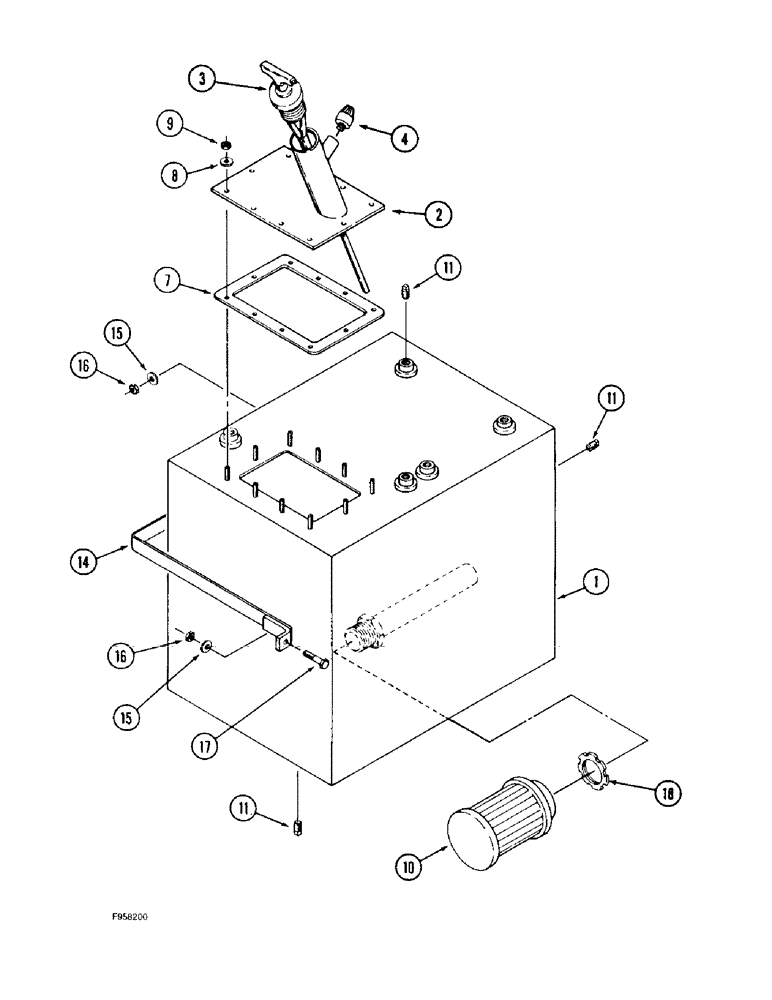

Схема запчастей Case IH 9330 - (8-018) - HYDRAULIC OIL TANK (08) - HYDRAULICS
9
15
18
11
3
16
10
7
1
15
2
16
8
11
17
14
4
11

Артикул

Название

Примечание

Количество

1

50-3054T2

TANK, HYDRAULIC OIL

TANK - hydraulic

1шт.

2

50-3523T1

COVER

PLATE - cover, hydraulic oil tank

1шт.

3

50-3522T1

DIPSTICK

- oil fill

1шт.

4

1971726C1

BREATHER,1/4" - 18

- hydraulic tank

1шт.

7

50-2429T1

GASKET

- cover

1шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

10шт.

9

425-106

NUT,3/8"-16, Cl 5

10шт.

10

196955A1

FILTER SCREEN

FILTER - suction, screen, replaces 50-2029T1 filter

1шт.

11

217-410

PLUG,Hex Hd, 1/2" - 14 NPT

Replaces 217-439 plug Hex Hd, 1/2"-14 NPTF

1шт.

14

50-3058T2

FIXING STRIP

BAND - mounting, tank

1шт.

15

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch) 3/8"

2шт.

16

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, 3/8"-16, GB

2шт.

17

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

18

19-953

LOCK NUT

NUT - slotted lock, 2 inch PT

1шт.

Выбрано товаров: 14
