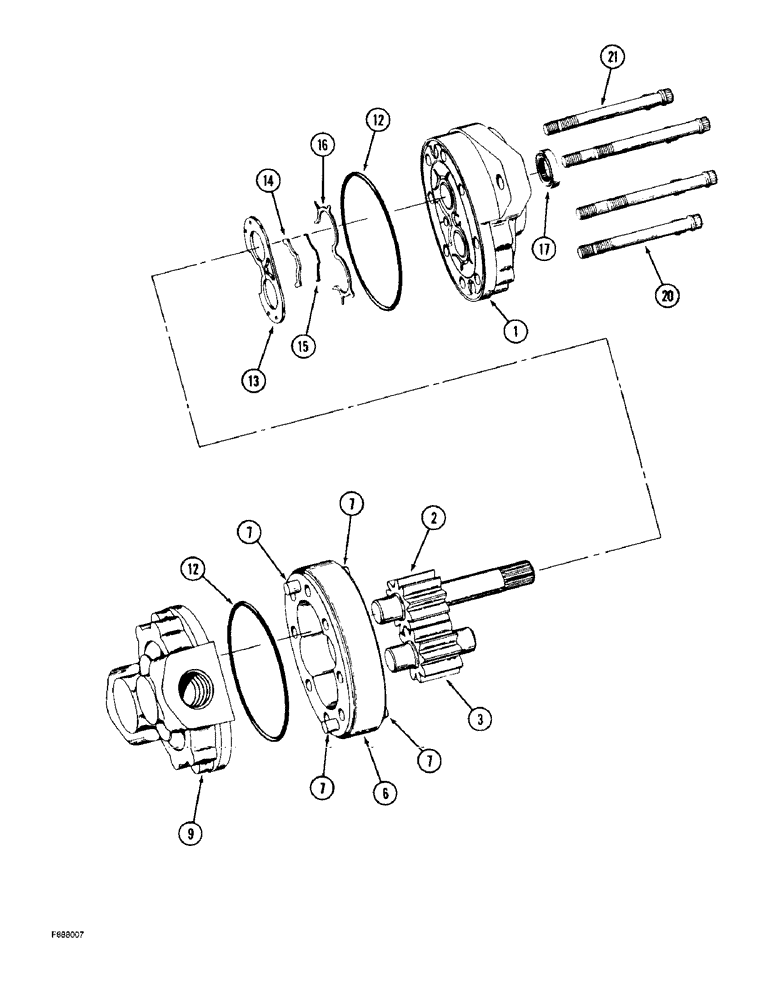

Запчасти Case IH 9330 (8-016) - HYDRAULIC GEAR PUMP ASSEMBLY (08) - HYDRAULICS

50-2662T92

PUMP, HYDRAULIC,55.22 CC

PUMP ASSEMBLY - gear, Includes: Ref. 1 - 21

1шт.

Part of seal kit, P/N 50-2825T91

1шт.

50-2662T92R

REMAN-HYD PUMP

9310, 9330 Both (6/95-8/00)

1шт.

50-2662T92C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

S301060

LARGE PLATE

COVER - shaft end, front

1шт.

Part of seal kit, P/N 50-2825T91

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

Part of seal kit, P/N 50-2825T91

1шт.

3

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

Part of seal kit, P/N 50-2825T91

1шт.

50-2827T91

BODY

ASSEMBLY - pump, Includes: Ref. 6 and 7

1шт.

Part of seal kit, P/N 50-2825T91

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

Part of seal kit, P/N 50-2825T91

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - dowel

4шт.

Part of seal kit, P/N 50-2825T91

1шт.

9

50-2826T1

PLATE

COVER - rear, with bearings

1шт.

Part of seal kit, P/N 50-2825T91

1шт.

50-2834T1

SEAL KIT

KIT - seal, Includes: Ref. 12 - 17

1шт.

Part of seal kit, P/N 50-2825T91

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - seal, body

4шт.

Part of seal kit, P/N 50-2825T91

1шт.

13

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

Part of seal kit, P/N 50-2825T91

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - molded

1шт.

Part of seal kit, P/N 50-2825T91

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING - gasket

1шт.

Part of seal kit, P/N 50-2825T91

1шт.

16

NSS

NOT SOLD SEPARAT

GASKET - backup

1шт.

Part of seal kit, P/N 50-2825T91

1шт.

17

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

- input

1шт.

Part of seal kit, P/N 50-2825T91

1шт.

20

166-59

12 PT SCREW,Flg, 3/8" - 16 x 3 3/4", Gr 8

BOLT - 12 point flange, 3/8 NC x 3-3/4 inch, grade 8

4шт.

Part of seal kit, P/N 50-2825T91

1шт.

21

19-1626

BOLT,Flg, 3/8" - 16 x 4", Gr 8

- 12 point flange, 3/8 NC x 4 inch, grade 8

4шт.

Part of seal kit, P/N 50-2825T91

1шт.
