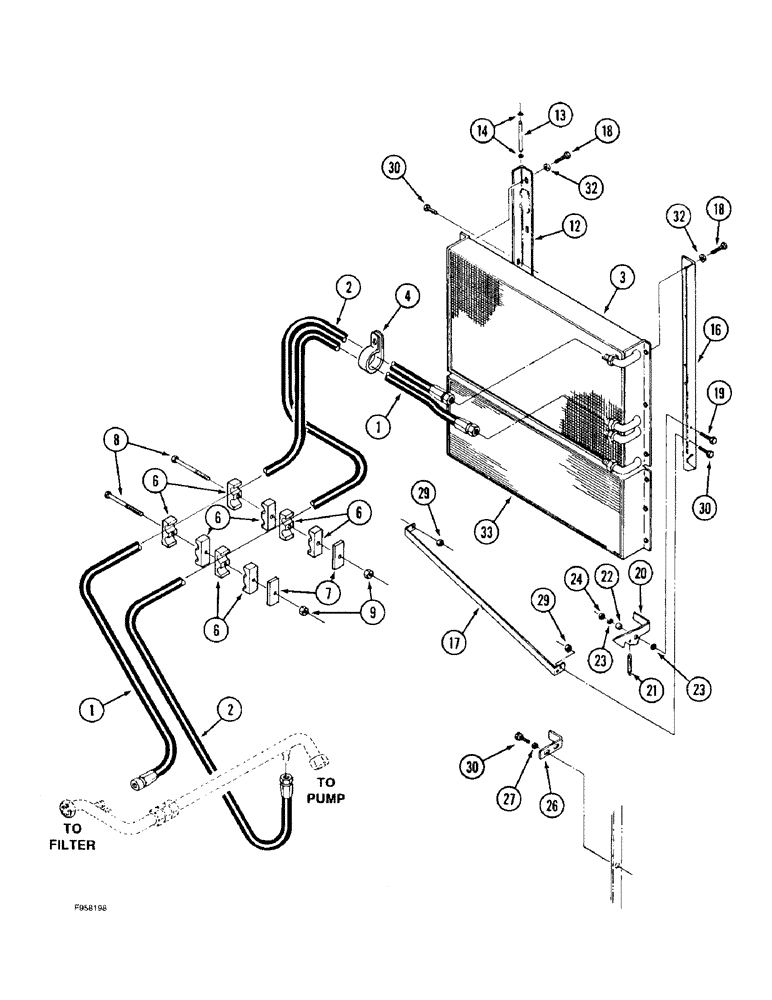

Запчасти Case IH 9330 (8-006) - HYDRAULIC SYSTEM, OIL COOLER AND MOUNTING (08) - HYDRAULICS

1

31-2932

HOSE ASSY.

HOSE - 3683 mm (145 inch) long, oil, Serial Range: cooler-tube

1шт.

2

31-2931

HOSE ASSY.

HOSE - 3327 mm (131 inch) long, tube to oil cooler

1шт.

3

90-6127T2

COOLER, OIL

COOLER - oil, hydraulic

1шт.

4

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

- P-type, Replaces 31-1411 clamp 2 1/2", Insul, 1/2" Bolt

1шт.

6

50-2534T1

CLAMP

- split, one-half

8шт.

7

50-2533T1

PLATE

- clamp support

3шт.

8

413-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

- hex, 5/16 NC x 4 inch

2шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

12

50-3350T1

ANGLE

BRACE - mounting, includes hinge

1шт.

13

70-1996T3

PIN,6.35mm OD x 111mm L

- hinge

2шт.

14

70-2600T2

CIRCLIP

RING - retaining, hinge

4шт.

16

50-3352T1

ANGLE

BRACE - mounting, cooler

1шт.

17

50-3353T1

STRAP

BRACKET - mounting, cooler

1шт.

18

426-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 8

- hex, 5/16 NC x 1/2 inch, grade 8

6шт.

19

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

20

70-5756T2

HANDLE

- latch

1шт.

21

90-7524T1

SPRING

- latch handle

1шт.

22

496-81023

WASHER

- flat, 13/32 x 3/4 x 7/32 inch, hardened, latch

1шт.

23

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch) 3/8"

2шт.

24

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

26

70-5921T1

LATCH

- retaining, handle

1шт.

27

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

29

27254R1

NUT

- hex, 5/16 inch NC, grade 8

2шт.

30

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

4шт.

32

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

7шт.

33

60-6710T1

CONDENSER

- air conditioning

1шт.
