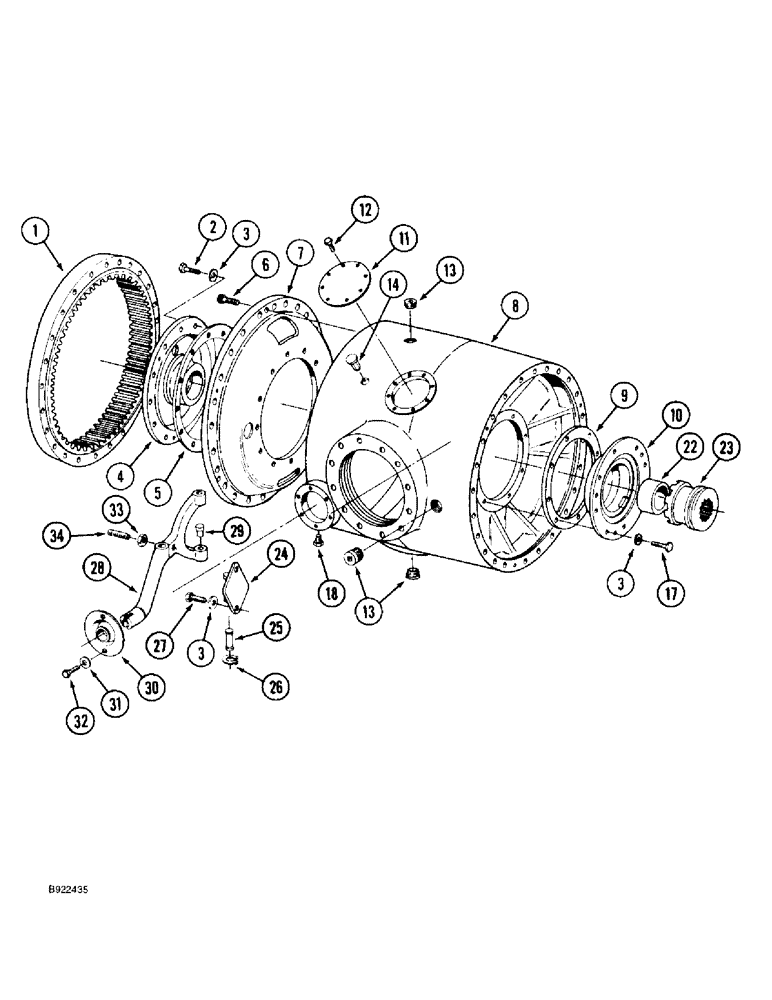

Запчасти Case IH 9330 (6-078) - AXLE ASSEMBLY, DIFFERENTIAL HOUSING, K693 BAR AXLE (06) - POWER TRAIN

90-8059T91

FRONT AXLE

AXLE ASSEMBLY - front, without differential lock, parts list Figures 6-72 - 6-78, Includes: Ref. 1 - 34

1шт.

90-8058T91

REAR AXLE

AXLE ASSEMBLY - rear, without differential lock, parts list Figures 6-72 - 6-78, Includes: Ref. 1 - 34

1шт.

90-8057T91

FRONT AXLE

AXLE ASSEMBLY - front, with differential lock, parts list Figures 6-72 - 6-78, Includes: Ref. 1 - 34

1шт.

90-8056T91

REAR AXLE

AXLE ASSEMBLY - rear, with differential lock, parts list Figures 6-72 - 6-78, Includes: Ref. 1 - 34

1шт.

1

33-1506T1

RING

GEAR - ring, 91 teeth

2шт.

2

33-1264T1

CAPSCREW,Flg, 5/16" - 18 x 1 1/2", Gr 8

BOLT - hex, 12 - 1.75 x 32 mm, class 10.9

12шт.

3

33-1265T1

LOCK WASHER

WASHER - lock, 12 mm

22шт.

4

33-1266T1

SUPPORT

- bearing

1шт.

5

33-1267T1

SHIM

- bearing, 0.1 mm thick

1шт.

5

33-1268T1

SHIM

- bearing, 0.15 mm thick

1шт.

5

33-1269T1

SHIM

- bearing, 0.25 mm thick

1шт.

5

33-1270T1

SHIM

- bearing, 0.7 mm thick

1шт.

6

33-1271T1

CAPSCREW,Flg, 5/16" - 18 x 1 3/4", Gr 8

BOLT - hex socket, 10 - 1.5 x 20 mm

3шт.

7

33-1512T1

COVER

- side

1шт.

8

33-1507T1

CARRIER

HOUSING - differential

1шт.

9

33-1279T1

SHIM

- bearing, 0.1 mm thick

1шт.

9

33-1280T1

SHIM

- bearing, 0.15 mm thick

1шт.

9

33-1281T1

SHIM

- bearing, 0.25 mm thick

1шт.

9

33-1282T1

SHIM

- bearing, 0.7 mm thick

1шт.

10

33-1508T1

SUPPORT

- bearing

1шт.

11

33-1300T1

COVER

- differential housing

1шт.

12

33-1299T1

CAPSCREW,M8 x 1.25 x 16mm

BOLT - hex, 8 - 1.25 x 16 mm, class 10.9

14шт.

13

33-1301T1

PLUG

- hole

3шт.

14

1-6693

BREATHER

- vent

1шт.

17

33-1511T1

CAPSCREW,M12 x 28mm

BOLT - hex, 12 - 1.75 x 28 mm, class 10.9

8шт.

18

90-7145T1

PLUG

- includes sealant

1шт.

22

33-1278T1

RING

BUSHING - clutch alignment, with differential lock only

1шт.

23

33-1509T1

SLEEVE

- shift, with differential lock only

1шт.

24

33-1285T1

SUPPORT

- shift, with differential lock only

1шт.

25

33-1286T1

PIVOT PIN

PIN - shift pivot, with differential lock only

1шт.

26

33-1287T1

RING, SNAP

RING - snap, 12 mm thick, with differential lock only

2шт.

27

33-1288T1

CAPSCREW,M12 x 25mm, Cl 10.9

BOLT - hex, 12 - 1.75 x 25 mm, class 10.9, with differential lock only

2шт.

28

33-1510T1

YOKE

- shift, with differential lock only

1шт.

29

33-1290T1

PIN

- thrust, with differential lock only

2шт.

30

33-1291T1

SEAL

- shift fork, with differential lock only

1шт.

30

33-1292T1

COVER

- hole, without differential lock, not shown

1шт.

31

33-1294T1

WASHER

- flat, special, with differential lock only

2шт.

32

33-1295T1

SCREW

BOLT - hex, with differential lock only

2шт.

32

33-1293T1

SCREW

BOLT - hex, without differential lock

6шт.

33

90-7325T1

NUT

- hex lock

1шт.

34

90-7324T1

SCREW,M10 x 35mm, Gr 10.9

BOLT - stop

1шт.
