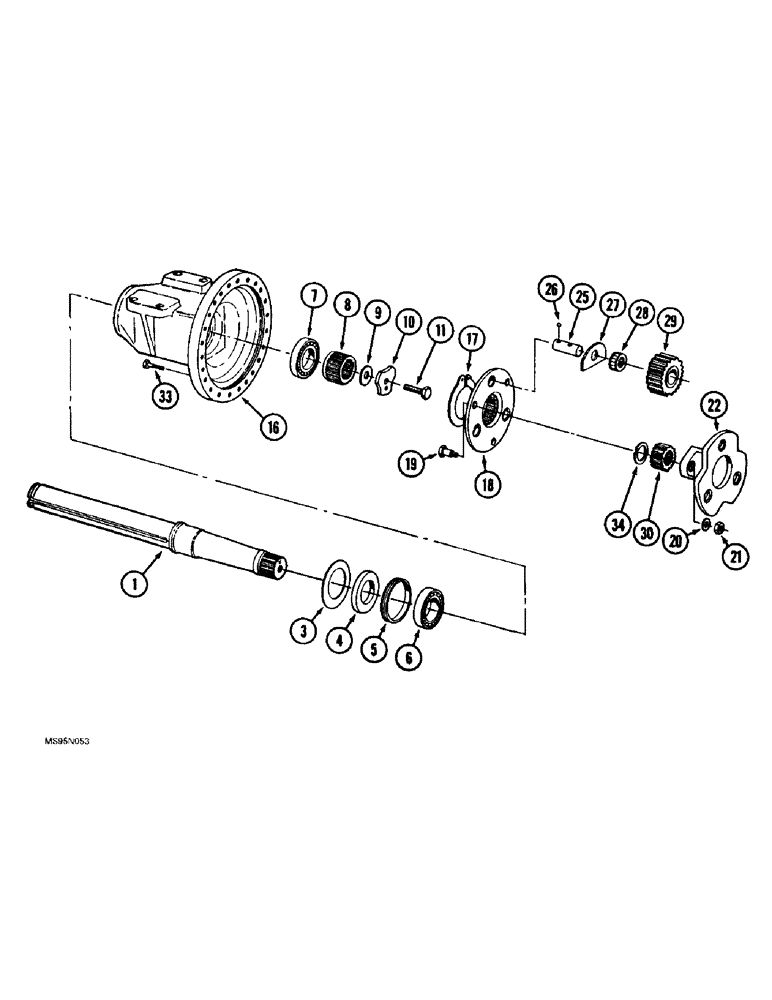

Запчасти Case IH 9330 (6-076) - AXLE ASSEMBLY, AXLE SHAFT AND HOUSING, K693 BAR AXLE (06) - POWER TRAIN

90-8059T91

FRONT AXLE

AXLE ASSEMBLY - front, without differential lock, parts list Figures 6-72 - 6-78, Includes: Ref. 1 - 34

1шт.

90-8058T91

REAR AXLE

AXLE ASSEMBLY - rear, without differential lock, parts list Figures 6-72 - 6-78, Includes: Ref. 1 - 34

1шт.

90-8057T91

FRONT AXLE

AXLE ASSEMBLY - front, with differential lock, parts list Figures 6-72 - 6-78, Includes: Ref. 1 - 34

1шт.

90-8056T91

REAR AXLE

AXLE ASSEMBLY - rear, with differential lock, parts list Figures 6-72 - 6-78, Includes: Ref. 1 - 34

1шт.

1

90-8028T1

HALF SHAFT

SHAFT - axle

2шт.

3

90-8030T1

LARGE PLATE

PLATE - end cover

2шт.

4

90-8029T1

RING

- shoulder

2шт.

5

33-1246T1

OIL SEAL

- axle shaft

2шт.

6

33-1247T1

TAPERED BEARING,105mm ID x 160mm OD x 43mm W

BEARING - tapered roller

2шт.

7

33-1248T1

TAPERED BEARING,90mm ID x 160mm OD x 32.5mm W

BEARING - tapered roller

2шт.

8

33-1249T1

PINION

GEAR - pinion drive

2шт.

9

33-1250T1

SHIM

- bearing, 0.1 mm thick

1шт.

9

33-1251T1

SHIM

- bearing, 0.15 mm thick

1шт.

9

33-1252T1

SHIM

- bearing, 0.25 mm thick

1шт.

9

33-1253T1

SHIM

- bearing, 0.7 mm thick

1шт.

10

33-1254T1

WASHER

- retainer, axle

2шт.

11

90-4480T1

SCREW,Hex, M22 x 1.5 x 65mm, Gr 10.9

BOLT - hex, special

2шт.

16

33-1501T1

HOUSING

- axle

2шт.

17

90-2562T1

RING, SNAP

RING - snap

2шт.

33-1502T91

CARRIER

ASSEMBLY - planetary, Includes: Ref. 18 - 22

2шт.

18

NSS

NOT SOLD SEPARAT

CARRIER - pinion

1шт.

19

16-1608T1

CAPTIVE WASHER SCREW

BOLT - hex shoulder, special

6шт.

20

16-1599

WASHER

- flat, special

6шт.

21

90-8126T1

NUT

- hex, special

6шт.

22

NSS

NOT SOLD SEPARAT

CARRIER - pinion

1шт.

25

90-4536T1

LARGE PIN

SHAFT - planetary pinion, without lube hole

6шт.

26

16-1607

BALL

- steel

6шт.

27

90-2564T1

LARGE PLATE

PLATE - thrust

12шт.

28

1-8340

BEARING, NEEDLE

BEARING - needle, 2 used with each pinion gear, Ref. 29

12шт.

29

33-1503T1

PINION

GEAR - pinion, 35 teeth

6шт.

30

33-1504T2

GEAR

- sun, 20 teeth

2шт.

33

33-1505T1

CAPSCREW,M14 x 1.5 x 120mm

BOLT - hex, 14 - 2.0 x 120 mm

24шт.

33

33-1513T1

CAPSCREW,M14 x 1.5 x 100mm

BOLT - hex, 14 - 2.0 x 110 mm

24шт.

34

90-7328T1

RING, SNAP

RING - snap

2шт.
