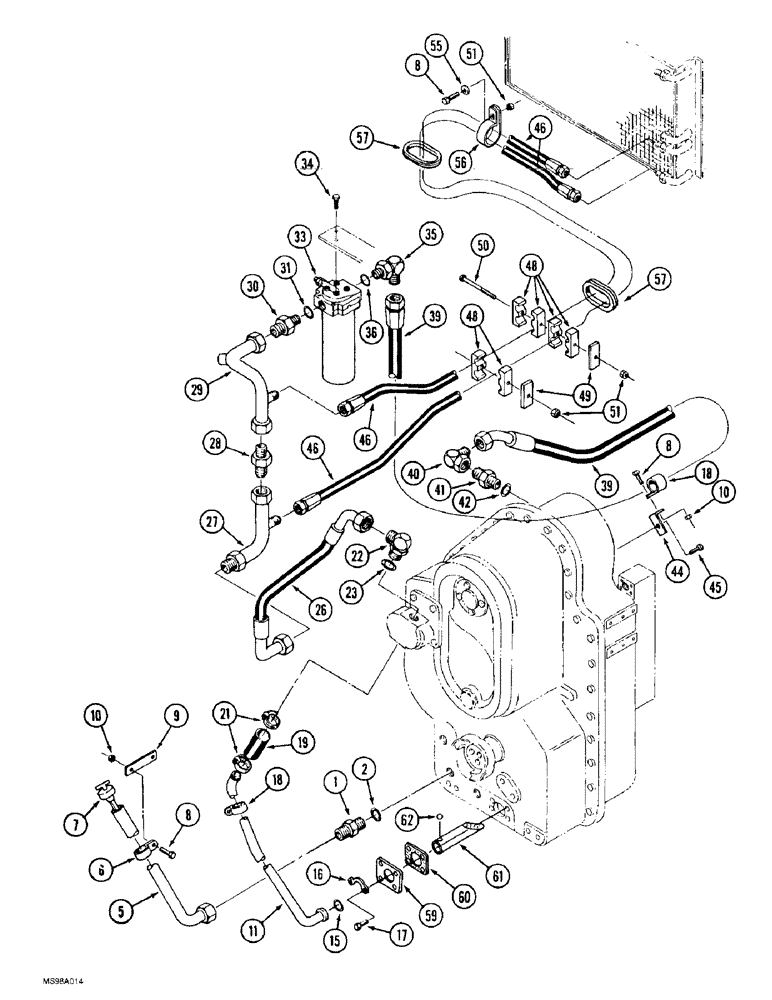

Запчасти Case IH 9330 (6-042) - TRANSMISSION LUBRICATION, TRANSMISSION TO OIL COOLER (06) - POWER TRAIN

1

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 inch flare x O-ring boss, Includes: Ref. 2

1шт.

2

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

5

90-7023T1

TUBE,1.25" OD x 24.15" L

- dipstick

1шт.

6

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

P-type, Hose 1 1/4", Insul, 3/8" Bolt

1шт.

7

90-6546T1

DIPSTICK

- oil check

1шт.

8

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

9

90-6588T1

SUPPORT

BRACKET - support, clamp mounting

1шт.

10

425-106

NUT,3/8"-16, Cl 5

3шт.

11

90-7064T1

TUBE,1.5" OD

- pump to transmission, without PTO system

1шт.

11

90-7063T1

TUBE,1.5" OD

- pump to transmission, with PTO system

1шт.

15

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

1шт.

16

31-1910

COUPLING FLANGE

FLANGE - split, clamp halves

2шт.

17

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

18

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type 1 1/2", Insul, 3/8" Bolt

2шт.

19

1-4571

HOSE

- 114 mm (4-1/2 inch) long, cut from 1-4482 bulk hose, see below

1шт.

21

31-1283

MOUNTING CLIP

CLAMP - adjustable, 1-1/4 x 2-5/8 inch, to 2-5/8 inch

2шт.

22

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss, Incl. Ref. 23

1шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

26

31-2870

HOSE ASSY.

HOSE - 813 mm (32 inch) long, to transmission pump

1шт.

27

50-2900T1

TUBE

- check, Serial Range: valve-hose

1шт.

28

90-6578T1

VALVE POPPET

VALVE - check

1шт.

29

90-6591T1

TUBE,1.25" OD

- filter to check valve

1шт.

30

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 31

1шт.

31

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

33

D131293

FILTER

ASSEMBLY - hydraulic oil, parts list Figure 8-20

1шт.

34

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

35

218-5116

ELBOW,90 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree, 1-5/8-12 flare x 1-5/16-12 inch adj O-ring boss, Includes: Ref. 36

1шт.

36

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

39

31-2734

HOSE

- 1181 mm (46-1/2 inch), Serial Range: long,-transmission

1шт.

40

218-996

ADAPTER,90 Degree, 37 Degree Fl, 1 5/8"-12 Male x 1 5/8"-12 Fem

ELBOW - 90 degree, 1-5/8-12 flare x fem straight thread

1шт.

41

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 42

1шт.

42

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

44

90-7012T1

BRACKET

- support, clamp mounting

1шт.

45

413-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

- hex, 5/8 NC x 3/4 inch

1шт.

46

31-2934

HOSE ASSY.,15.88mm ID x 4038.6mm L

HOSE - 4775 mm (188 inch) long, to oil cooler

2шт.

48

50-2534T1

CLAMP

- split, one-half

10шт.

49

50-2533T1

PLATE

- clamp support

3шт.

50

413-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

- hex, 5/16 NC x 4 inch

2шт.

51

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

53

50-3377T1

BRACKET

- support, hose

1шт.

54

50-3376T1

GROMMET

- edge protector, 219 mm (8-5/8 inch) long, cut from 31-1785 bulk grommet, not shown, see below

1шт.

55

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

56

515-25635

CLAMP,2 1/2", Insul, 1/2" Bolt

- P-type, Replaces 31-1411 clamp 2 1/2", Insul, 1/2" Bolt

1шт.

57

50-3375T1

GROMMET

- edge protector, 286 mm (11-1/4 inch) long, cut from 31-1785 bulk grommet, see below

1шт.

58

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, , Not shown 3/8"

2шт.

59

S1700S00F

LARGE PLATE

PLATE - suction tube retainer

1шт.

60

S1620S01F

GASKET

- suction tube

1шт.

61

S1520S00F

PIPE

TUBE - suction

1шт.

62

S14701960

BALL,3.968mm OD

- steel

1шт.

1-4482

LARGE HOSE

HOSE - bulk, 3048 mm (120 inch) long, sold by the foot

1шт.

31-1785

GROMMET

- edge, bulk, 3048 mm (120 inch) long

1шт.
