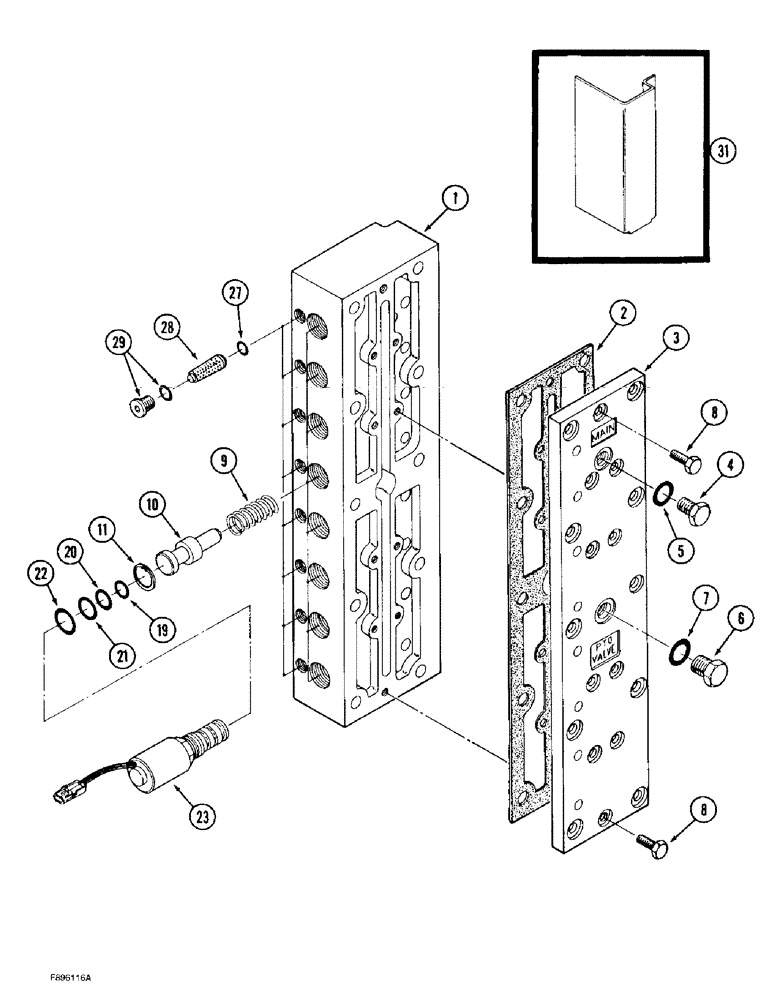

Запчасти Case IH 9330 (6-032) - TRANSMISSION ASSEMBLY, RANGE SELECTOR VALVE ASSEMBLY (06) - POWER TRAIN

90-7014T91

TRANSMISSION

TRANSMISSION ASSEMBLY - tractor, parts list Figures 6-4 - 6-32, Includes: Ref. 1 - 31

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

33-1525T91

VALVE

VALVE ASSEMBLY - range selector, Includes: Ref. 1 - 31

1шт.

1

33-1529T1

VALVE BODY

BODY - valve, range selector

1шт.

2

33-1530T1

GASKET

GASKET - valve cover

1шт.

3

33-1531T1

COVER

COVER - body

1шт.

4

S1030S00F

PLUG

PLUG - hex, O-ring boss, Includes: Ref. 5

1шт.

5

S1040S00F

O-RING

O-RING - plug

1шт.

6

S1390S00F

PLUG

PLUG - O-ring boss, Includes: Ref. 7

1шт.

7

S1320S00F

O-RING

O-RING - plug

1шт.

8

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

BOLT - hex, 5/16 NC x 3/4 inch, grade 8

10шт.

9

33-1532T1

SPRING

SPRING - spool

8шт.

10

33-1533T1

SPOOL

SPOOL - valve selector

8шт.

11

33-1534T1

RING, SNAP

RING SNAP RING - snap

8шт.

33-1535T1

SOLENOID

VALVE ASSEMBLY - solenoid, Includes: Ref. 19 - 23

8шт.

371737A1R

REMAN-SOLENOID

Reman for New PN 33-1535T1

8шт.

371737A1C

CORE-SOLENOID

Return Part Number

8шт.

33-1536T1

SEAL PACKAGE

KIT - O-ring, solenoid valve

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - solenoid

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - solenoid

1шт.

21

NSS

NOT SOLD SEPARAT

O-RING - solenoid

1шт.

22

NSS

NOT SOLD SEPARAT

O-RING - solenoid

1шт.

23

NSS

NOT SOLD SEPARAT

VALVE - solenoid

1шт.

27

33-1537T1

O-RING

O-RING - seal, filter

8шт.

28

33-1538T1

FILTER

FILTER - conical

8шт.

29

33-1539T1

PLUG

PLUG - filter

8шт.

31

50-3322T2

SHIELD

COVER - protective, transmission solenoids

1шт.
