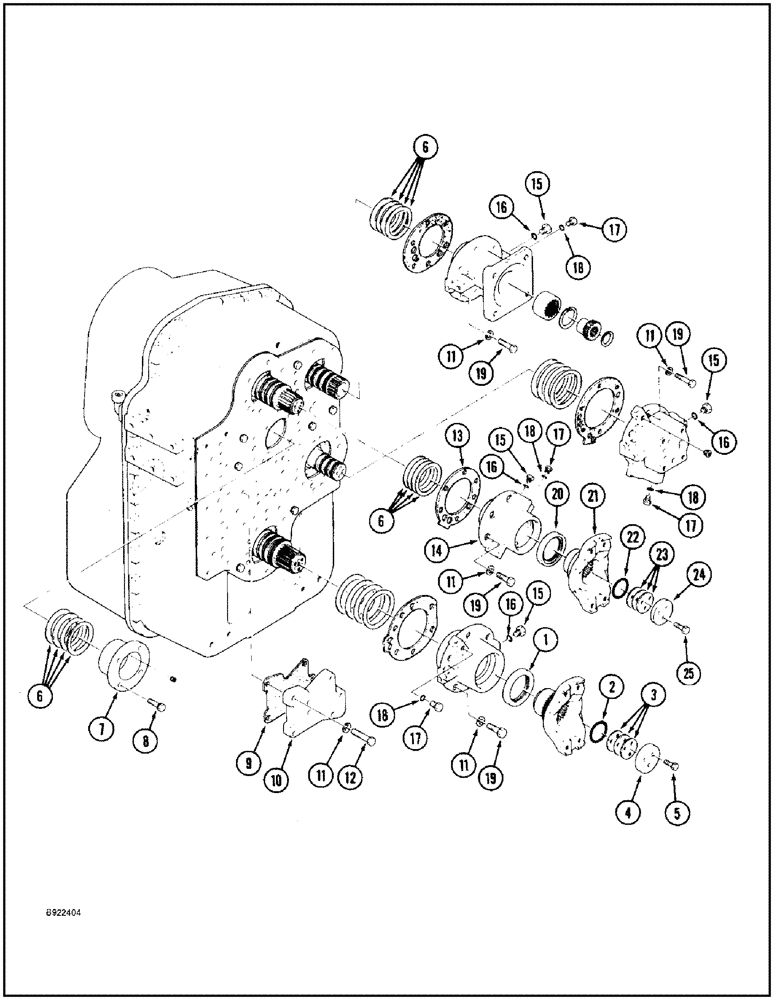

Запчасти Case IH 9330 (6-008) - TRANSMISSION ASSEMBLY (06) - POWER TRAIN

90-7014T91

TRANSMISSION

ASSEMBLY - tractor, parts list Figures 6-4 - 6-32, Includes: Ref. 1 - 39

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift;

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

1

33-1428T1

OIL SEAL

SEAL - output shaft

1шт.

Yoke between Refs. 1 and 2, go to 9330 parts book next page.

1шт.

2

33-1422T1

O-RING

O-RING - yoke sealing

1шт.

3

33-1450T1

SHIM

- 0.10 mm thick

1шт.

3

33-1451T1

SHIM

- 0.30 mm thick

1шт.

4

33-1432T1

WASHER

PLATE - retainer

1шт.

5

SM8134235

BOLT

BOLT - hex, 12 mm - 1.25 x 35 mm

3шт.

6

33-1456T1

SHIM

- bearing, 0.1 mm thick

1шт.

6

33-1457T1

SHIM

- bearing, 0.3 mm thick

1шт.

6

33-1458T1

SHIM

- bearing, 0.5 mm thick

1шт.

6

33-1459T1

SHIM

- bearing, 0.7 mm thick

1шт.

6

33-1474T1

SHIM

- bearing, 0.15 mm thick

1шт.

7

33-1437T1

RETAINER

- bearing

1шт.

8

SM8124050

BOLT

BOLT - hex, 10 - 1.25 x 50 mm

4шт.

9

S1610S01F

GASKET

- oil supply plate

1шт.

Part of gasket repair kit P/N 90-8402T91

1шт.

10

S1600S00F

LARGE PLATE

PLATE - oil supply

1шт.

11

892-11010

LOCK WASHER,M10

31шт.

12

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 - 1.5 x 70 mm

7шт.

13

33-1440T2

GASKET

- oil supply cover

1шт.

Part of gasket repair kit P/N 90-8402T91

1шт.

14

33-1441T1

HOUSING

COVER - oil supply

1шт.

15

S1390S00F

PLUG

- O-ring boss, Includes: Ref. 16

8шт.

16

S1320S00F

O-RING

- plug

1шт.

17

S1030S00F

PLUG

- hex, O-ring boss, Includes: Ref. 18

5шт.

18

S1040S00F

O-RING

- plug

1шт.

19

SM8124060

BOLT

BOLT - hex, 10 - 1.25 x 60 mm

24шт.

20

33-1412T1

OIL SEAL

SEAL - input yoke

1шт.

21

33-1409T1

LINKAGE YOKE

YOKE - input

1шт.

22

33-1414T1

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

- yoke sealing

1шт.

23

33-1464T1

SHIM

- 0.10 mm (0.004 inch) thick

1шт.

23

33-1465T1

SHIM

- 0.30 mm (0.012 inch) thick

1шт.

23

33-1466T1

SHIM

- 0.70 mm (0.028 inch) thick

1шт.

24

33-1413T1

WASHER

PLATE - yoke retainer

1шт.

25

SM8174035

BOLT

BOLT - hex, special, 10 - 1.25 x 35 mm, class 10.9

3шт.

26

33-1468T2

GASKET

- pump support

1шт.

Part of gasket repair kit P/N 90-8402T91

1шт.

27

33-1514T1

HOLDER

SUPPORT - oil pump

1шт.

28

33-1444T1

COUPLING

- pump adapter

1шт.

29

33-1445T1

RING, SNAP

RING - snap

1шт.

30

33-1515T1

ADAPTER

- pump drive

1шт.

31

33-1517T1

RING, SNAP

RING - snap

1шт.

32

33-1460T1

SHIM

- bearing, 0.1 mm thick

1шт.

32

33-1461T1

SHIM

- bearing, 0.3 mm thick

1шт.

32

33-1462T1

SHIM

- bearing, 0.5 mm thick

1шт.

32

33-1463T1

SHIM

- bearing, 0.7 mm thick

1шт.

32

33-1475T1

SHIM

- bearing, 0.15 mm thick

1шт.

33

33-1433T2

GASKET

- clutch collector

1шт.

Part of gasket repair kit P/N 90-8402T91

1шт.

34

33-1438T1

CLUTCH

COLLECTOR - clutch

1шт.

35

STX99700F

PLUG

- socket head

1шт.

36

33-1426T2

GASKET

- bearing retainer

1шт.

Part of gasket repair kit P/N 90-8402T91

1шт.

37

33-1427T1

BEARING CARRIER

RETAINER - bearing

1шт.

38

33-1430T1

FORK

YOKE - output, front, 6C

1шт.

39

33-1439T1

PLUG

- orifice

2шт.

90-8402T91

GASKET KIT

KIT - gasket, short, repair, Includes: Refs. 9, 13, 26, 33, 36 and references marked in Figures 6-4 - 6-12 and 6-28

1шт.
