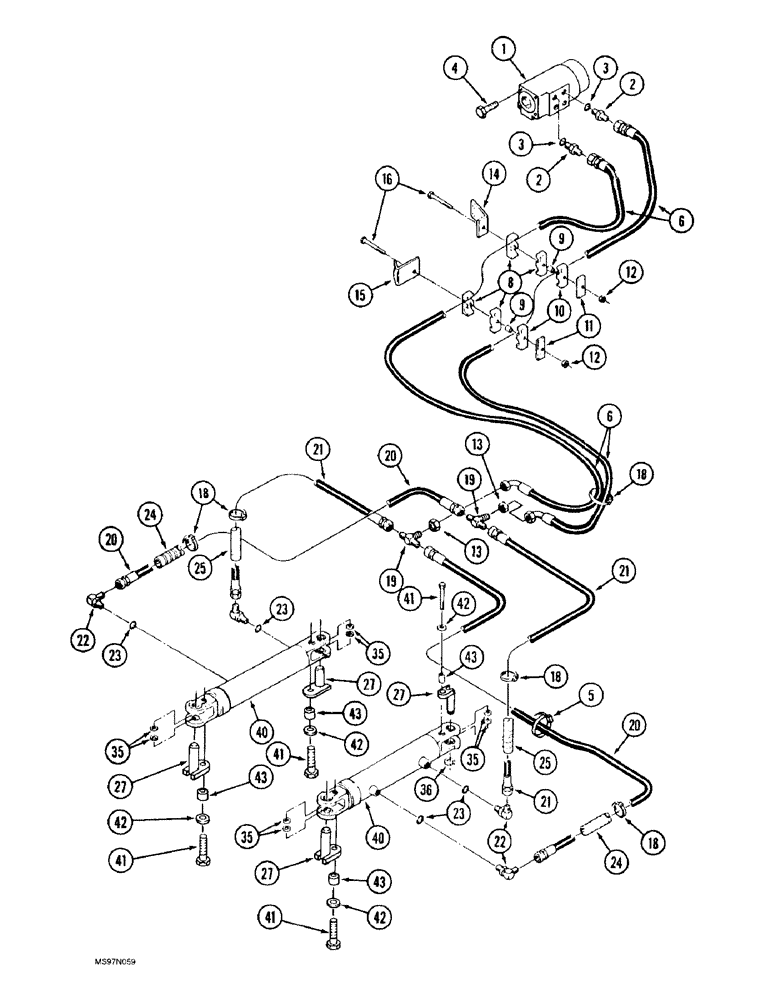

Запчасти Case IH 9330 (5-012) - STEERING SYSTEM HYDRAULICS, STEERING CONTROL VALVE TO STEERING CYLINDERS, W/O STEERABLE AXLE (05) - STEERING

1

50-2600T91

UNIT

VALVE ASSEMBLY - steering control, replaced by 50-3616T91 valve, parts list Figure 5-16

1шт.

1

50-3616T91

VALVE

ASSEMBLY - steering control, replaces 50-2600T91 valve, parts list Figure 5-18, Serial Range: -JEE0071531

1шт.

1

50-3652T91

VALVE

ASSEMBLY - steering control, parts list Figure 5-18, Start Serial: JEE0071531

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 10 - 1.5 x 20 mm, class 10.9, Use with 50-3652T91 valve, Ref. 1

4шт.

5

D147773

CLAMP

STRAP - tie

2шт.

6

31-2875

HOSE ASSY.

HOSE - 1219 mm (48 inch) long

2шт.

8

50-2554T1

CLAMP

- hose, one-half, order 50-2534T1 clamp

4шт.

9

50-2955T1

SPACER

- standoff

2шт.

10

50-2534T1

CLAMP

- split, one-half

2шт.

11

50-2533T1

PLATE

- clamp support

2шт.

12

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

13

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

2шт.

14

50-2954T1

BRACKET

- mounting, clamp

1шт.

15

50-2982T1

BRACKET

- mounting, clamp

1шт.

16

426-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 8

- hex, 5/16 NC x 3-3/4 inch, grade 8

2шт.

18

19-135

CABLE TIE

STRAP - tie, nylon

13шт.

19

218-805

TEE,3/4"-16, 37 Degree, Blkhd

- 3/4-16 inch bulkhead flare branch x flare x flare

2шт.

20

18-544

HOSE

- 991 mm (39 inch), Serial Range: long,-cylinder

2шт.

18-544 is not a valid P/N for 9310 and 30. The 18-544 requires 39 inches of bulk P/N S119717X and the new adopted number 330115A1 requires only 37 inches of bulk P/N S119717X. This if for 9310 and 9330 only. All 9200 and 9370/80/90 use 18-544.

1шт.

21

31-2890

HOSE ASSY.

HOSE - 610 mm (24 inch), Serial Range: long,-cylinder

2шт.

22

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 23

4шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

24

50-2905T1

CONDUIT

- hose protector, 1143 mm (45 inch) long, cut from S119717X bulk conduit, see Figure 5-14

2шт.

50-2905T1 is not a valid P/N for 9310 and 30. It requires 45 inches of 1/2" I.D. hose, 3/4-16 thread. The 9310 and 30 requires length of only 18 inches of same I.D. and thread size, so P/N 330115A1 was released per ECN F98524 to accomodate this.

1шт.

25

50-2696T1

HOSE

GUARD - hose protector, 20 inch (490 mm) long, cut from S119717X bulk guard, see below

2шт.

27

50-1086T1

PIN

- retainer, steering cylinder, Serial Range: -JCB0003600

4шт.

27

70-6793T1

PIN,38.02mm OD x 95.5mm L

- retainer, steering cylinder, Start Serial: JCB0003600

4шт.

When replacing entire 50-2753T92 cylinder, Ref. 40, on units built between P.I.N. JCB0003600 and JEE0036501, order 50-3635T91 cylinder assembly, which includes (1) 50-3578T91 cylinder, (2) 70-6793T1 pins, (2) 426-1016 bolts, (2) 496-21066 washers and (2) 70-5967T1 spacers.

1шт.

28

515-23238

CLAMP,15/16", Insul, 3/8" Bolt

P-type 15/16", Insul, 3/8" Bolt

2шт.

35

2-3223T1

SPACER

- cylinder mounting

8шт.

36

100-16150

SNAP RING,#150, Ext

Ring, Snap, #150, Ext, Serial Range: -JEE0036501

2шт.

40

50-2753T92

CYLINDER

ASSEMBLY - steering, parts list Figure 5-16, Serial Range: -JCB0003600

2шт.

When replacing entire 50-2753T92 cylinder, Ref. 40, on units built between P.I.N. JCB0003600 and JEE0036501, order 50-3635T91 cylinder assembly, which includes (1) 50-3578T91 cylinder, (2) 70-6793T1 pins, (2) 426-1016 bolts, (2) 496-21066 washers and (2) 70-5967T1 spacers.

1шт.

40

50-3635T91

CYLINDER

ASSEMBLY - steering, see note below, Start Serial: JCB0003600

1шт.

When replacing entire 50-2753T92 cylinder, Ref. 40, on units built between P.I.N. JCB0003600 and JEE0036501, order 50-3635T91 cylinder assembly, which includes (1) 50-3578T91 cylinder, (2) 70-6793T1 pins, (2) 426-1016 bolts, (2) 496-21066 washers and (2) 70-5967T1 spacers.

1шт.

40

50-3578T91

CYLINDER

ASSEMBLY - steering, parts list Figure 5-16, Start Serial: JCB0003600

2шт.

When replacing entire 50-2753T92 cylinder, Ref. 40, on units built between P.I.N. JCB0003600 and JEE0036501, order 50-3635T91 cylinder assembly, which includes (1) 50-3578T91 cylinder, (2) 70-6793T1 pins, (2) 426-1016 bolts, (2) 496-21066 washers and (2) 70-5967T1 spacers.

1шт.

If dealer is looking for the cylinder stops, see Figure 9-100, Ref. 9 and 10.

1шт.

41

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- hex, 3/8 NC x 2-1/2 inch, Serial Range: -JCB0003600

4шт.

41

426-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 8

- hex, 5/8 NC x 1 inch, grade 8, Start Serial: JCB0003600

4шт.

When replacing entire 50-2753T92 cylinder, Ref. 40, on units built between P.I.N. JCB0003600 and JEE0036501, order 50-3635T91 cylinder assembly, which includes (1) 50-3578T91 cylinder, (2) 70-6793T1 pins, (2) 426-1016 bolts, (2) 496-21066 washers and (2) 70-5967T1 spacers.

1шт.

42

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE, Serial Range: -JCB0003600

2шт.

42

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened, Start Serial: JCB0003600

4шт.

When replacing entire 50-2753T92 cylinder, Ref. 40, on units built between P.I.N. JCB0003600 and JEE0036501, order 50-3635T91 cylinder assembly, which includes (1) 50-3578T91 cylinder, (2) 70-6793T1 pins, (2) 426-1016 bolts, (2) 496-21066 washers and (2) 70-5967T1 spacers.

1шт.

43

50-3436T1

SPACER

- mounting, Serial Range: -JCB0003600

4шт.

43

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

- pin, Start Serial: JCB0003600

4шт.

When replacing entire 50-2753T92 cylinder, Ref. 40, on units built between P.I.N. JCB0003600 and JEE0036501, order 50-3635T91 cylinder assembly, which includes (1) 50-3578T91 cylinder, (2) 70-6793T1 pins, (2) 426-1016 bolts, (2) 496-21066 washers and (2) 70-5967T1 spacers.

1шт.

S119717X

CONDUIT

- bulk, 25 (1) ID x 4877 mm (192 inch) long

1шт.
