Запчасти Case IH 9330 (5-010) - STEERING SYSTEM HYDRAULICS, PRIORITY VALVE TO STEERING CONTROL VALVE, W/ OR W/O STEERABLE AXLE (05) - STEERING

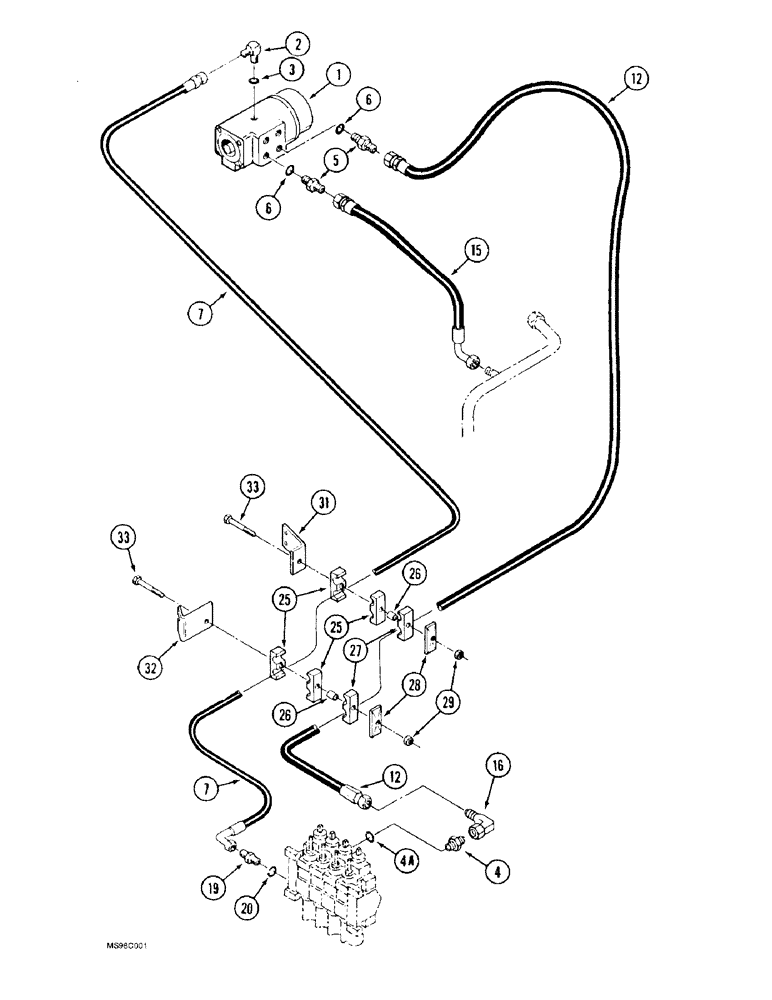

Схема запчастей Case IH 9330 - (5-010) - STEERING SYSTEM HYDRAULICS, PRIORITY VALVE TO STEERING CONTROL VALVE, W/ OR W/O STEERABLE AXLE (05) - STEERING
33
15
7
26
20
25
26
25
32
3
4
27
19
12
4a
31
16
6
5
7
2
6
29
12
33
28
1

Артикул

Название

Примечание

Количество

1

50-2600T91

UNIT

VALVE ASSEMBLY - steering control, replaced by 50-3616T91 valve, parts list Figure 5-16

1шт.

1

50-3616T91

VALVE

ASSEMBLY - steering control, replaces 50-2600T91 valve, parts list Figure 5-18, Serial Range: -JEE0071531

1шт.

1

50-3652T91

VALVE

ASSEMBLY - steering control, parts list Figure 5-18, Start Serial: JEE0071531

1шт.

2

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj O-ring boss, Includes: Ref. 3

1шт.

3

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

4

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 4A

1шт.

4a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

5

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. Ref. 6

2шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

7

31-3038

HOSE ASSY.

HOSE - 1626 mm (64 inch) long, steering control valve to control valve

1шт.

12

31-2772

HOSE ASSY.

HOSE - 1575 mm (62 inch) long, to control valve

1шт.

15

31-3045

HOSE ASSY.

HOSE - 762 mm (30 inch) long, steering control valve to drain tube

1шт.

16

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

- 90 degree, 7/8-14 inch flare x swivel

1шт.

19

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ADAPTER - straight, 7/16-20 flare x 9/16-18 inch O-ring boss, Incl. Ref. 20

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

25

50-2554T1

CLAMP

- hose, one-half, order 50-2534T1 clamp

4шт.

26

50-2955T1

SPACER

- standoff

2шт.

27

50-2534T1

CLAMP

- split, one-half

2шт.

28

50-2533T1

PLATE

- clamp support

2шт.

29

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

31

50-2954T1

BRACKET

- mounting, clamp

1шт.

32

50-2982T1

BRACKET

- mounting, clamp

1шт.

33

426-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 8

- hex, 5/16 NC x 3-3/4 inch, grade 8

2шт.
