Запчасти Case IH 9330 (4-064) - HORN AND MOUNTING (04) - ELECTRICAL SYSTEMS

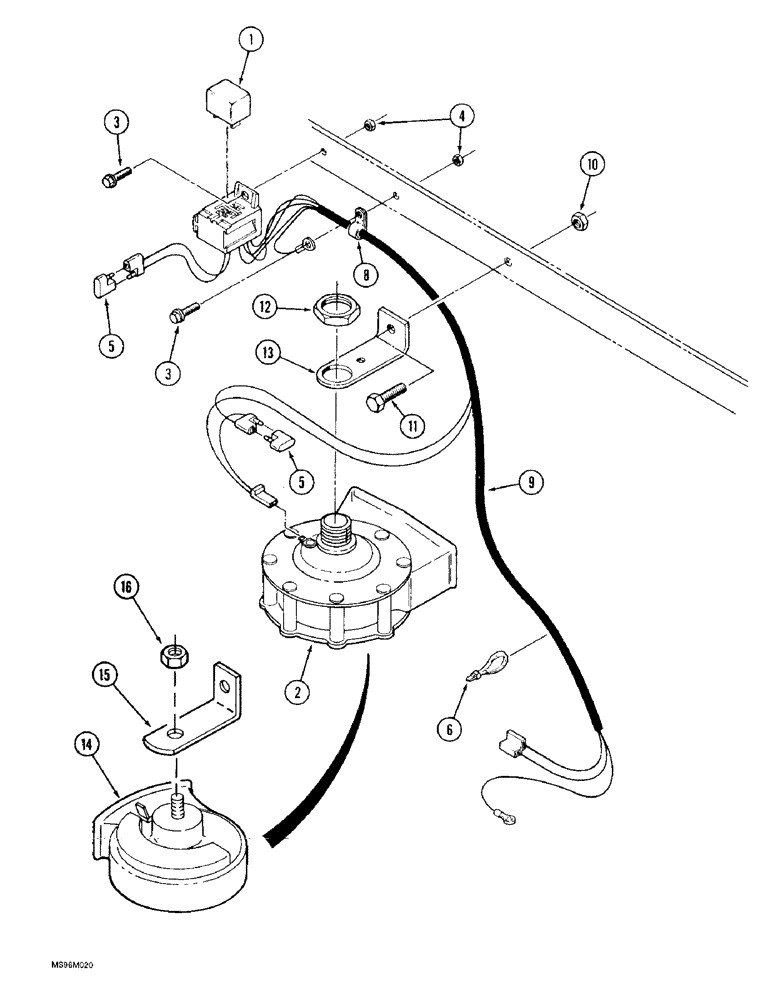

Схема запчастей Case IH 9330 - (4-064) - HORN AND MOUNTING (04) - ELECTRICAL SYSTEMS
2
15
11
12
10
4
6
3
8
5
9
14
3
13
1
5
16

Артикул

Название

Примечание

Количество

1

1983394C2

RELAY

- mini, 12 volt, sealed

1шт.

2

R45962

HORN

- "F" Note, 12 volt, warning, replaced by 60-7242T1 horn, Ref. 14

1шт.

3

463-41012

SCREW,Slot Hex Wash Hd, #10-24 x 3/4"

- machine, hex slotted washer head, No. 10 NC x 3/4 inch

2шт.

4

193-1004

NUT,Keps, #10 - 24, w/ Ext Tooth LW

NUT - hex, with external tooth lock washer, No. 10 NC, Keps

2шт.

5

22-738

DIODE

- electrical

2шт.

6

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

8

32-69

CLAMP

- harness

1шт.

9

60-7241T1

HARNESS

- horn, replaces 60-6290T1 harness

1шт.

10

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

11

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

1шт.

12

L30866

LOCK NUT

- hex, special

1шт.

13

L73799

BRACKET

- mounting, horn

1шт.

14

60-7242T1

HORN

- 12 volt, replaces R45962 horn, Ref. 2, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

BRACKET - mounting, horn

1шт.

16

NSS

NOT SOLD SEPARAT

NUT - hex, special

1шт.

Выбрано товаров: 15
