Запчасти Case IH 9330 (4-062) - DIFFERENTIAL LOCK HARNESSES (04) - ELECTRICAL SYSTEMS

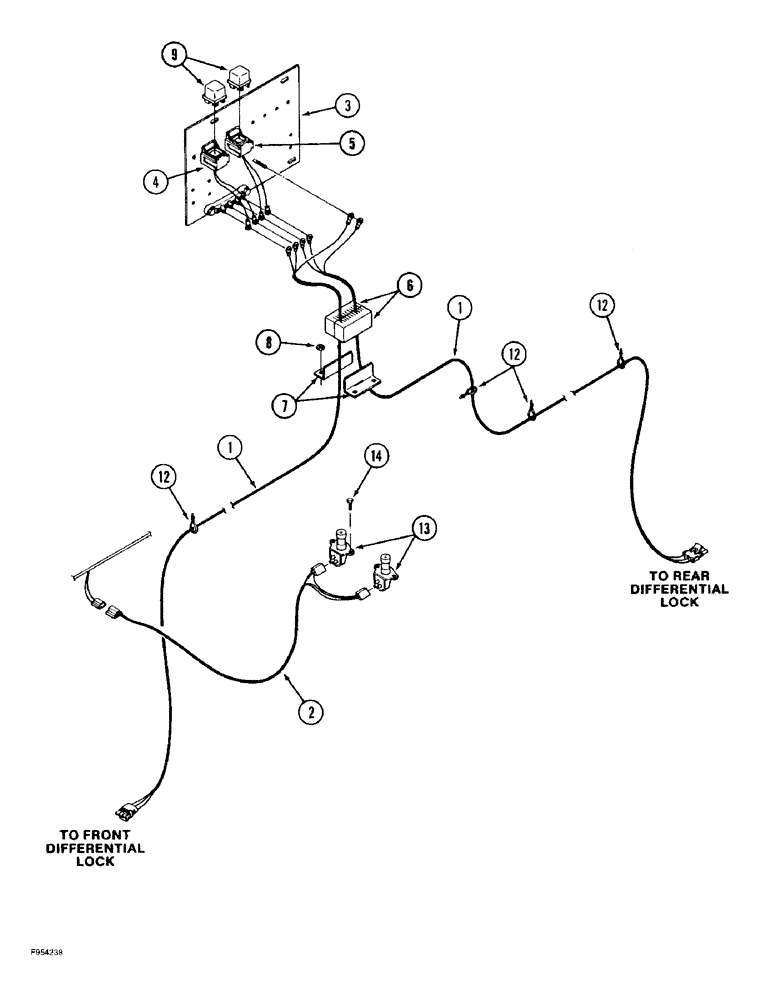

Схема запчастей Case IH 9330 - (4-062) - DIFFERENTIAL LOCK HARNESSES (04) - ELECTRICAL SYSTEMS
12
1
5
4
6
3
9
12
13
8
14
12
1
2
7

Артикул

Название

Примечание

Количество

1

20-2303T1

HARNESS

- differential lock

2шт.

2

60-6341T1

HARNESS

- switch, differential lock

1шт.

3

60-5052T3

LARGE PLATE

PLATE - relay mounting

1шт.

4

60-6340T1

HARNESS

- relay, front differential lock

1шт.

5

60-6339T1

HARNESS

- relay, rear differential lock

1шт.

6

60-6066T1

FOAM

SEAL - foam

2шт.

7

60-6065T1

ANGLE BAR

ANGLE - retaining, foam

2шт.

8

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

9

1983394C2

RELAY

- mini, 12 volt

2шт.

12

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

13

20-1988T1

IGNITION SWITCH

SWITCH - on/off, differential

2шт.

14

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

4шт.
