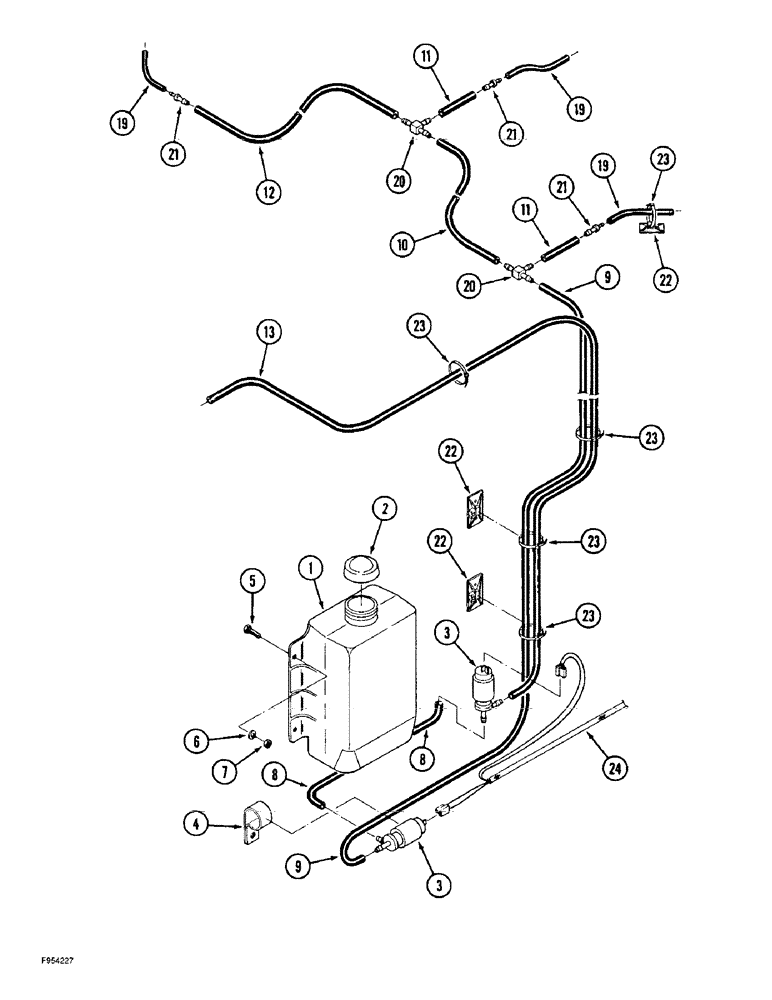

Запчасти Case IH 9330 (4-054) - WINDOW WASHERS, IF EQUIPPED (04) - ELECTRICAL SYSTEMS

35-1926T91

KIT - wiper, side and rear window with washer, order from Machinery Price List, Includes: Ref. 1 - 23

1шт.

1

60-6524T1

RESERVOIR

TANK ASSEMBLY - washer fluid, Includes: Ref. 2

1шт.

2

60-4241T1

FILLER CAP

CAP - tank

1шт.

3

60-3183T1

PUMP, WATER

PUMP - washer fluid

2шт.

4

31-2361

MOUNTING CLIP

CLAMP - P-type, pump

1шт.

5

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

6

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

5шт.

7

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

5шт.

8

NSS

NOT SOLD SEPARAT

HOSE - washer, 10 inch, cut from 4-1056 bulk hose, see below

2шт.

9

NSS

NOT SOLD SEPARAT

HOSE - washer, 130 inch, cut from 4-1056 bulk hose, see below

1шт.

10

NSS

NOT SOLD SEPARAT

HOSE - washer, 24 inch, cut from 4-1056 bulk hose, see below

1шт.

11

NSS

NOT SOLD SEPARAT

HOSE - washer, 2 inch, cut from 4-1056 bulk hose, see below

1шт.

12

NSS

NOT SOLD SEPARAT

HOSE - washer, 12 inch, cut from 4-1056 bulk hose, see below

1шт.

13

NSS

NOT SOLD SEPARAT

HOSE - washer, 176 inch, cut from 4-1056 bulk hose, see below

3шт.

19

NSS

NOT SOLD SEPARAT

HOSE - washer, 10 inch, cut from 4-1056 bulk hose, see below

4шт.

20

31-2363

TEE

- nylon, 3/16 inch

2шт.

21

31-2364

FITTING

CONNECTOR - nylon, 3/16 x 7/64 inch

3шт.

22

22-823

MOUNT

MOUNT - adhesive back, strap

3шт.

23

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

24

60-7075T1

HARNESS

- front frame, see Figure 4-20 for complete front frame wiring

1шт.

4-1056

HOSE

- bulk, 5 (3/16) ID x 6096 mm (240 inch) long

1шт.
