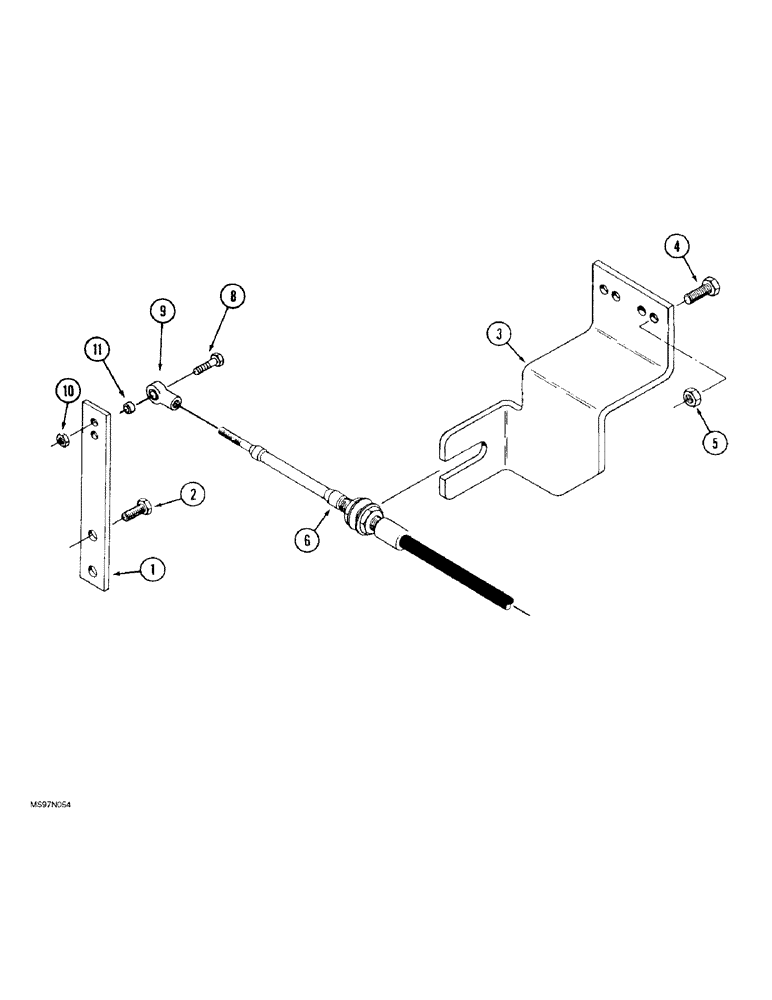

Запчасти Case IH 9310 (3-040) - THROTTLE CONTROLS, ENGINE ATTACHING PARTS (03) - FUEL SYSTEM

1

90-6507T1

LEVER

- throttle, Serial Range: attaches-engine

1шт.

2

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9

2шт.

3

90-6875T2

BRACKET

- cable retaining (Replaces 90-6875T1)

1шт.

4

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

2шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

6

60-6425T1

CABLE,3048mm L

- throttle

1шт.

8

163-55

SCREW,Hex, #10 - 24 x 1 1/4", Gr 5

- machine, hex head, No. 10 NC x 1-1/4 inch

1шт.

9

H433283

BALL JOINT

JOINT - ball

1шт.

10

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

1шт.

11

90-7749T1

SPACER

Throttle Cable

1шт.
