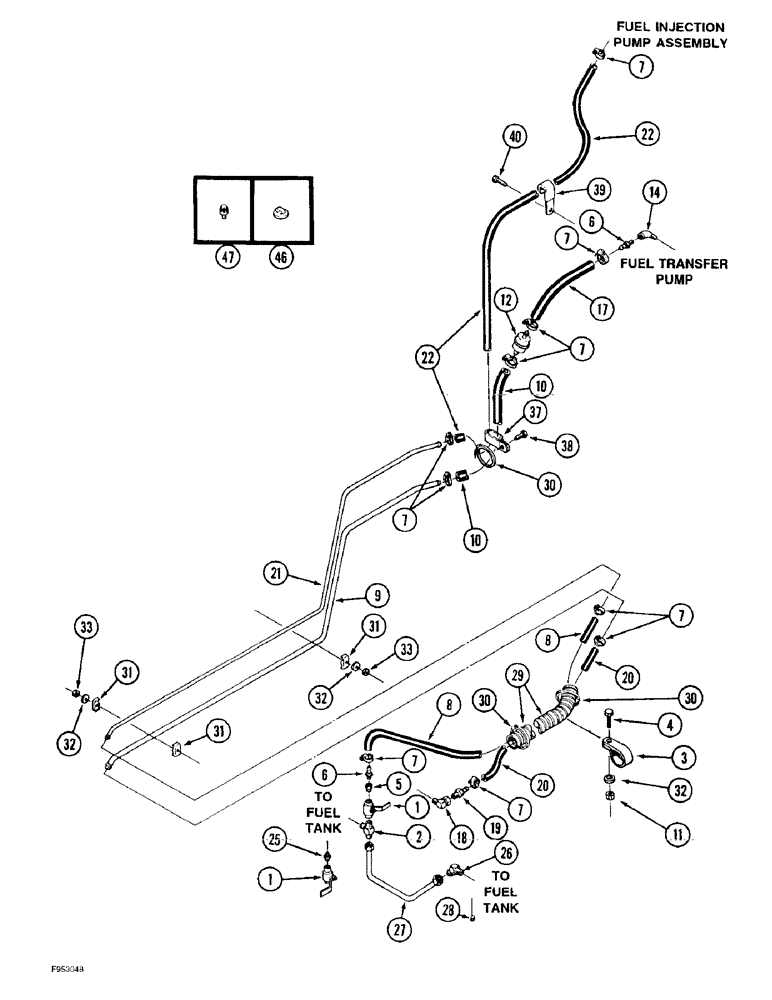

Запчасти Case IH 9310 (3-030) - FUEL LINES, PRIOR TO P.I.N. JEE0036501 (03) - FUEL SYSTEM

1

31-1267

SHUT-OFF VALVE

VALVE - shutoff, fuel

1шт.

2

31-494

TEE

- adjustable, 7/8-14 inch NF

1шт.

3

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

P-type 1 1/4", Insul, 3/8" Bolt

1шт.

4

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

- hex, 5/16 NC x 1 inch, grade 8

1шт.

5

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

- pipe, 1/2 male x 1/4 inch female

1шт.

6

220-3

FITTING

ADAPTER - straight, 3/8 barb end x 1/4 inch PT

2шт.

7

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Adjustable #4, 0.25/0.62 Type M Worm

6шт.

8

31-2940

FUEL HOSE

HOSE - 1422 mm (56 inch) long, cut from 32-12X bulk hose, see below

1шт.

9

90-7071T1

FUEL TUBE,.375" OD

TUBE - fuel supply

1шт.

10

31-2837

HOSE

9.5 mm ID x 685.8 mm; Order A21562X, and Cut to Required Length; See Below

1шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

12

D139225

FILTER, FUEL

FILTER - fuel, in-line

1шт.

14

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male

1шт.

17

31-2836

FUEL HOSE

HOSE - 127 mm (5 inch) long, cut from 32-12X bulk hose, see below

1шт.

18

217-1027

ELBOW,3/8" - 18 Male x 1/4" - 18 Female

- street, 90 degree, 3/8 PT x 1/4 inch female PT

1шт.

19

217-119

FITTING,1/4" Hose x 1/4" NPTF, Barbed

ADAPTER - straight, 1/4 barb end x 1/4 inch PT

1шт.

20

31-2939

HOSE,7.9 mm ID x 1270.00 mm

7.9 mm ID x 1270 mm; Order 31-2855, and Cut to Required Length; See Below

1шт.

21

90-7072T1

FUEL TUBE,.25" OD

TUBE - fuel return

1шт.

22

A172261

HOSE,7.92mm ID x 1820mm L, SAE 30R6

- Cut from L126767 bulk hose, See below, Replaces 31-2835 hose 7.50 mm ID, 8.30 mm ID x 1820.00 mm, SAE 30R6 per J30

1шт.

25

217-196

FITTING,1/2" - 14 Male NPTF x 1/2" - 14 Male NPTF

NIPPLE - straight, 1/2 PT x 1-13/16 inch

1шт.

26

86513002

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- 45 degree, 7/8-14 flare x 1/2 inch PT

1шт.

27

90-7460T1

FUEL TUBE,.625" OD

TUBE - fuel, crossover

1шт.

28

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- hex socket headless, 1/2 inch PT

1шт.

29

50-2905T1

CONDUIT

- hose protector, 1143 mm (45 inch) long, cut from S119717X bulk conduit, see below

1шт.

30

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

8шт.

31

50-2842T1

SUPPORT

CLAMP - tube

5шт.

32

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6шт.

33

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

37

31-1070

CLAMP,5/8", 3/8" Bolt, Double

- extended P-type

10шт.

38

J902735

BOLT,M8 - 1.25 x 21 mm

- hex flange, self tapping, 8 - 1.25 x 21 mm

1шт.

39

362126R1

CLIP

CLAMP - fuel line

1шт.

40

40-1091

BOLT,Hex, M10 x 1.5 x 20mm, Gr 8.8

BOLT - hex, 10 - 1.5 x 20 mm

1шт.

46

A162191

CAP

- fuel

1шт.

47

90-7732T1

BREATHER

- fuel tank

1шт.

32-12X

LARGE HOSE

HOSE - bulk, 10 (3/8) ID x 6096 mm (240 inch) long

1шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

1шт.

S119717X

CONDUIT

- bulk, 25 (1) ID x 4877 mm (192 inch) long

1шт.
