Запчасти Case IH 9310 (3-026) - FUEL INJECTION NOZZLE, 6T-830 ENGINE, 6TA-830 ENGINE, PRIOR TO S/N JEE0036501 (03) - FUEL SYSTEM

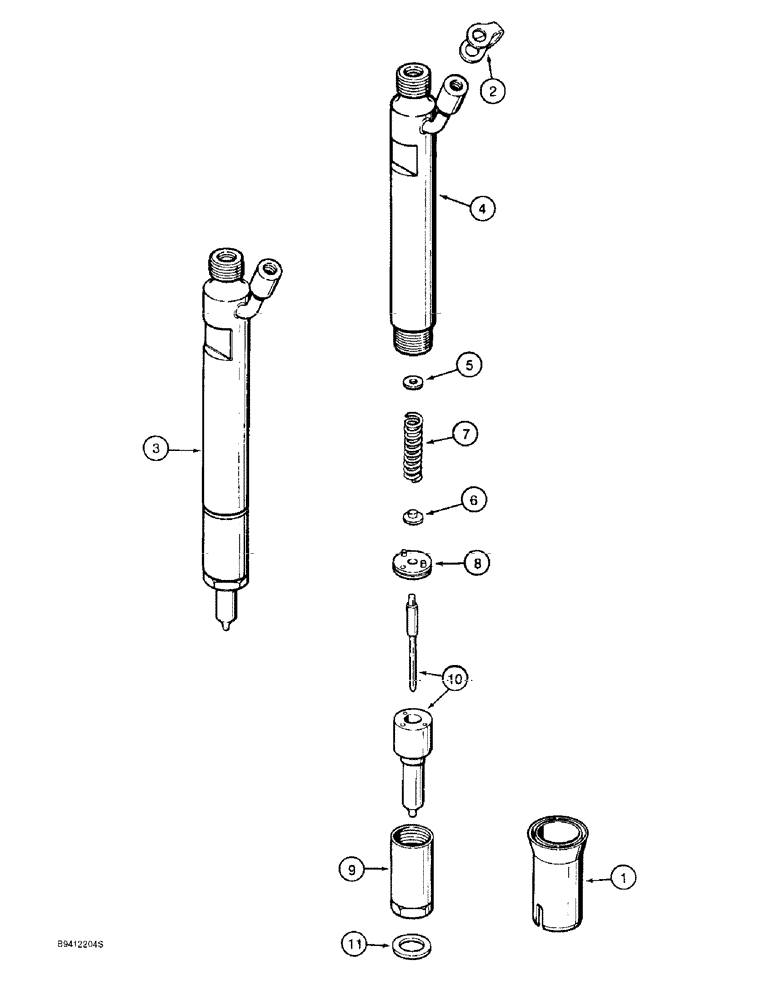

Схема запчастей Case IH 9310 - (3-026) - FUEL INJECTION NOZZLE, 6T-830 ENGINE, 6TA-830 ENGINE, PRIOR TO S/N JEE0036501 (03) - FUEL SYSTEM
9
4
8
7
10
6
2
1
5
11
3

Артикул

Название

Примечание

Количество

A77622

NOZZLE INJECTION

KIT - injector nozzle, 9310 Tractor (6T-830 Engine) no longer available, order Ref. 1, 2, and J908507 injector, Includes: Ref. 1 - 10

6шт.

A77629

NOZZLE INJECTION

KIT - injector nozzle, 9330 Tractor (6TA-830 Engine) no longer available, order Ref. 1, 2, and J908511 injector, Includes: Ref. 1 - 10

6шт.

JR908511

REMAN-FUEL INJECTOR

Remanufactured injection nozzle

6шт.

JC908511

CORE-FUEL INJECTOR

Return Part Number, injection pump

6шт.

1

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector

1шт.

2

J903380

SEAL

SEAL - connector

1шт.

3

J908507

INJECTOR ASSY.

INJECTOR ASSEMBLY - fuel (6T-830 Engine), Includes: Ref. 4 -10

1шт.

3

JR908507

REMAN-FUEL INJECTOR

Remanufactured, injection nozzle

1шт.

3

JC908507

CORE-FUEL INJECTOR

Return Part Number

1шт.

3

J908511

INJECTOR ASSY.

INJECTOR ASSEMBLY - fuel (6TA-830 Engine), Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - injector

1шт.

A48186

KIT

KIT - shim, nozzle opening pressure, starter kit, use one shim of the thickness required, no longer available, order components separately, Includes: Ref. 5

1шт.

5

1806233C1

SHIM,1.00mm Thk

SHIM, , Nozzle 1.00mm Thk

5шт.

5

1806234C1

SHIM,1.04mm Thk

SHIM, , Nozzle 1.04mm Thk

5шт.

5

1806235C1

SHIM,1.08mm Thk

SHIM, , Nozzle 1.08mm Thk

5шт.

5

1806236C1

SHIM,1.10mm Thk

SHIM, , Nozzle 1.10mm Thk

5шт.

5

1806237C1

SHIM,1.14mm Thk

SHIM, , Nozzle 1.14mm Thk

5шт.

5

1806238C1

SHIM,1.18mm Thk

SHIM, , Nozzle 1.18mm Thk

5шт.

5

1806239C1

SHIM,1.20mm Thk

SHIM, , Nozzle 1.20mm Thk

5шт.

5

1806240C1

SHIM,1.24mm Thk

SHIM, , Nozzle 1.24mm Thk

5шт.

5

1806241C1

SHIM,1.28mm Thk

SHIM, , Nozzle 1.28mm Thk

5шт.

5

1806242C1

SHIM,1.30mm Thk

SHIM, , Nozzle 1.30mm Thk

5шт.

5

1806243C1

SHIM,1.34mm Thk

SHIM, , Nozzle 1.34mm Thk

5шт.

5

1806244C1

SHIM,1.38mm Thk

SHIM, , Nozzle 1.38mm Thk

5шт.

5

1806245C1

SHIM,1.40mm Thk

SHIM, , Nozzle 1.40mm Thk

5шт.

5

1806246C1

SHIM,1.44mm Thk

SHIM, , Nozzle 1.44mm Thk

5шт.

5

1806247C1

SHIM,1.48mm Thk

SHIM, , Nozzle 1.48mm Thk

5шт.

5

1806248C1

SHIM,1.50mm Thk

SHIM, , Nozzle 1.50mm Thk

5шт.

5

1806249C1

SHIM,1.54mm Thk

SHIM, , Nozzle 1.54mm Thk

5шт.

5

1806250C1

SHIM,1.58mm Thk

SHIM, , Nozzle 1.58mm Thk

5шт.

5

1806251C1

SHIM,1.60mm Thk

SHIM, , Nozzle 1.60mm Thk

5шт.

5

1806252C1

SHIM,1.64mm Thk

SHIM, , Nozzle 1.64mm Thk

5шт.

5

1806253C1

SHIM,1.68mm Thk

SHIM, , Nozzle 1.68mm Thk

5шт.

5

1806254C1

SHIM,1.70mm Thk

SHIM, , Nozzle 1.70mm Thk

5шт.

5

1806255C1

SHIM,1.74mm Thk

SHIM, , Nozzle 1.74mm Thk

5шт.

5

1806256C1

SHIM,1.78mm Thk

SHIM, , Nozzle 1.78mm Thk

5шт.

5

1806257C1

SHIM,1.80mm Thk

SHIM, , Nozzle 1.80mm Thk

5шт.

5

1806258C1

SHIM,1.84mm Thk

SHIM, , Nozzle 1.84mm Thk

5шт.

5

1806259C1

SHIM,1.88mm Thk

SHIM, , Nozzle 1.88mm Thk

5шт.

5

1806260C1

SHIM,1.90mm Thk

SHIM, , Nozzle 1.90mm Thk

5шт.

5

1806261C1

SHIM,1.94mm Thk

SHIM, , Nozzle 1.94mm Thk

5шт.

5

1806262C1

SHIM,1.98mm Thk

SHIM, , Nozzle 1.98mm Thk

5шт.

6

NSS

NOT SOLD SEPARAT

SEAT - nozzle pressure spring

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - nozzle pressure

1шт.

8

NSS

NOT SOLD SEPARAT

STOP - nozzle valve

1шт.

9

NSS

NOT SOLD SEPARAT

NUT - cap, nozzle tip

1шт.

10

NSS

NOT SOLD SEPARAT

TIP - injector nozzle

1шт.

11

J906659

SEAL

SEAL - injector nozzle, 7 mm injector tip

6шт.

Whenever a nozzle is removed from cylinder head, J906659 seal must be replaced before the nozzle is installed.

1шт.

Выбрано товаров: 49
