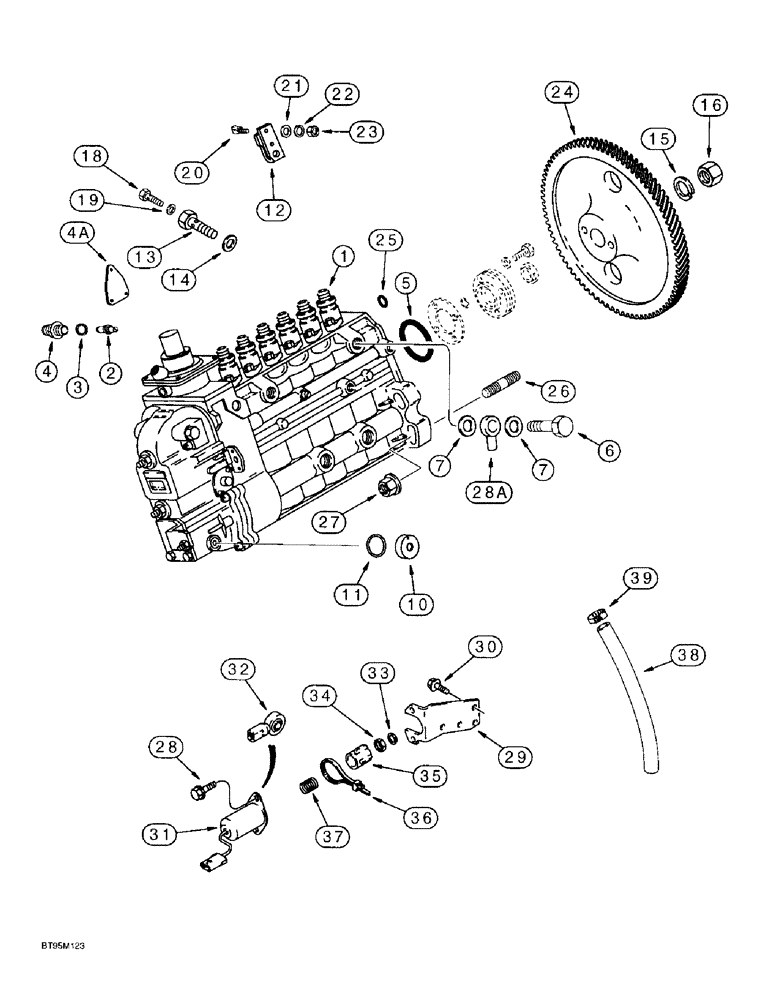

Запчасти Case IH 9310 (3-024) - FUEL INJECTION PUMP AND DRIVE, 6T-830 EMISSIONS CERTIFIED ENGINE, 9310 ONLY, S/N JEE0036501 & AFTER (03) - FUEL SYSTEM

1

J926880

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, Includes: Ref. 2 - 23

1шт.

1

JR926880

REMAN-INJECTION PUMP

PUMP ASSEMBLY - injection, remanufactured, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 23

1шт.

1

JC926880

CORE-INJECTION PUMP

Return No, INJECTION PUMP

1шт.

1

JC923235

CORE-INJECTION PUMP

Return Number - use this part number to return pump core for credit when using a remanufactured assembly, Includes: Ref. 2 - 23

1шт.

2

A77720

PIN

- timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

Plug M18 x 24 x 1.5

1шт.

4

J912888

PLUG

- timing

1шт.

4a

A71110

GASKET

- mounting

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

- sealing

1шт.

6

J912886

VALVE

- overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

1шт.

8

J929322

LEVER

- pump shutoff, not shown

1шт.

9

J930291

NUT

- hex, 5 mm - 0.8, not shown

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

11

680187C1

O-RING,2.5mm Thk x 9mm ID

- sealing, special

1шт.

12

1808728C1

LEVER

- throttle control

1шт.

13

J913320

SCREW

- vent

1шт.

14

691273C1

GASKET,14.2mm ID x 19.9mm OD x 1.5mm Thk

- vent screw

1шт.

15

J912897

LOCK WASHER

- lock

1шт.

16

J912896

LOCK NUT

- hex, self-locking, special

1шт.

18

B41211

SCREW

- vent

1шт.

19

933696R1

SEALING RING,M6 x 10 x 1

RING - 6 x 10 mm, vent screw

1шт.

20

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

21

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

22

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

23

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1.0, class 10

1шт.

24

J912615

GEAR

- fuel pump

1шт.

25

J916284

O-RING

- sealing, fuel injection pump

1шт.

26

J915036

STUD

- pump mounting, gear housing to injection pump, 55 mm (2-5/32 in)

4шт.

27

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

- hex flange, 10 mm - 1.5

4шт.

28

97006C1

BOLT,Hex, M6 x 20mm, Cl 8.8

- hex flange, special, 6 - 1 x 20 mm

2шт.

28a

J911447

CONNECTOR, ELEC

CONNECTOR - banjo, fuel return

1шт.

29

J923255

SUPPORT

BRACKET - solenoid mounting

1шт.

30

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

- heavy hex flange, 10 - 1.5 x 20 mm

2шт.

31

J930233

SOLENOID

- fuel shutoff, 12 volt, Includes: Ref. 32 - 37

1шт.

32

L53928

BALL JOINT

JOINT - ball, replaces A146456 joint

1шт.

33

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

34

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

1шт.

35

J925171

BOOT

- protective, plunger

1шт.

36

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, .098" x 8"

1шт.

37

J923887

SPRING

- return, plunger

1шт.

38

J918176

HOSE,7.90 mm ID x 330.00 mm

- 330 mm (13 inch) long, fuel drain

1шт.

39

A171099

HOSE CLAMP,13.2mm - 15.4mm

CLAMP - spring-type, hose

1шт.
