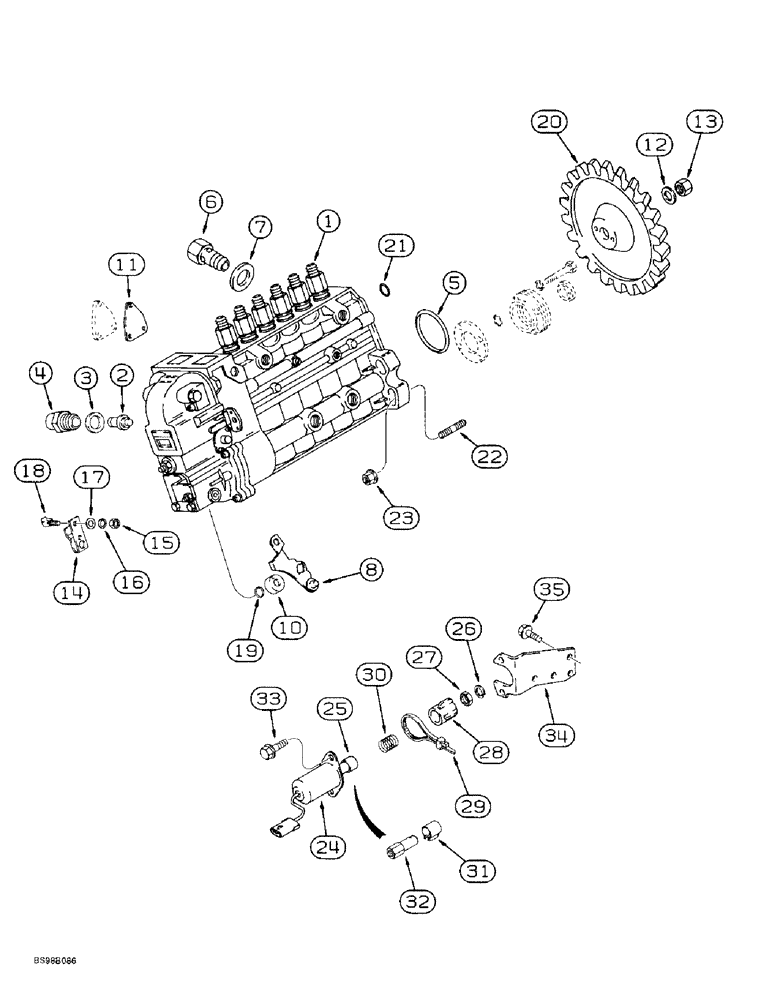

Запчасти Case IH 9310 (3-022) - FUEL INJECTION PUMP AND DRIVE, 6T-830 ENGINE, 9310 TRACTOR ONLY, PRIOR TO S/N JEE0036501 (03) - FUEL SYSTEM

JC913339

CORE

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly, Includes: Ref. 2 - 19

1шт.

1

J921108

PUMP

ASSEMBLY - fuel injection, new, Includes: Ref. 2 -19

1шт.

JR921108

REMAN-INJECTION PUMP

PUMP ASSEMBLY - injection, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, order Ref. 1, J921108 pump, Includes: Ref. 2 - 19

1шт.

JC921108

CORE-INJECTION PUMP

Return No, INJECTION PUMP - N.A. Only

1шт.

2

A77720

PIN

- timing

1шт.

3

3051337R1

SEALING RING,M18 x 24mm OD x 1.5mm Thk

1шт.

4

J912888

PLUG

- timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

- sealing

1шт.

6

J912886

VALVE

- overflow, bolt, replaced by J932096 valve

1шт.

6

J932096

VALVE

- overflow, replaces J912886 valve

1шт.

7

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

1шт.

8

J923230

LEVER

- pump shutoff

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

11

A71110

GASKET

- mounting

1шт.

12

A77775

LOCK WASHER

- lock

1шт.

13

A41852

LOCK NUT

- hex, self-locking

1шт.

14

1808728C1

LEVER

- throttle control

1шт.

15

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1.0, class 10

1шт.

16

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

18

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

19

680187C1

O-RING,2.5mm Thk x 9mm ID

- sealing, special

1шт.

20

J931378

GEAR

- fuel pump, replaces J912614 gear

1шт.

21

J916284

O-RING

- sealing, fuel injection pump, fuel pump to gear housing

1шт.

22

J915036

STUD

- pump mounting, 55 mm (2-5/32 in)

4шт.

23

J902662

FLANGE NUT

- hex flange, 10 mm

4шт.

24

J928160

SOLENOID VALVE

SOLENOID - fuel shutoff, 12 volt, Includes: Ref. 25 - 30

1шт.

25

A77807

SET

KIT - plunger, ball socket and clip, no longer available, order one each of Ref. 34 and 35

1шт.

26

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

27

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF, jam

1шт.

28

J925171

BOOT

- protective, plunger

1шт.

29

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, .098" x 8"

1шт.

30

J923887

SPRING

- return, plunger

1шт.

31

J923885

SPRING

CLIP - spring

1шт.

32

J928173

BALL JOINT

SOCKET - ball joint

1шт.

33

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

2шт.

34

J923254

SUPPORT

BRACKET - solenoid mounting

1шт.

35

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 20 mm, class 10.9

2шт.
