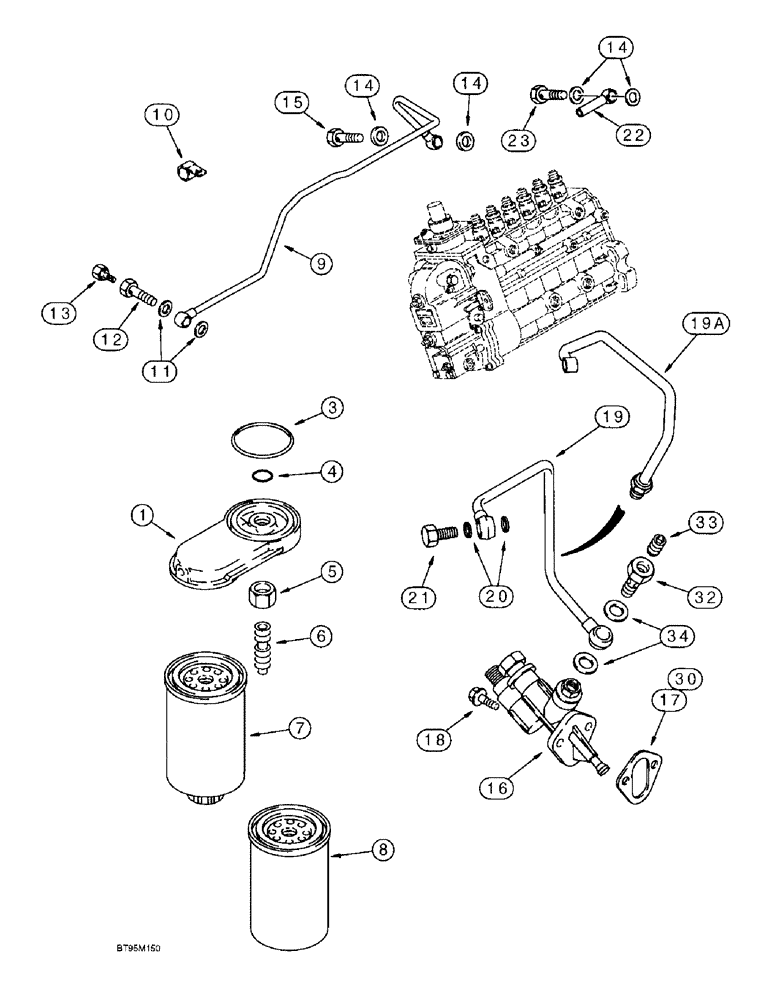

Запчасти Case IH 9310 (3-016) - FUEL FILTER AND TRANSFER PUMP, 6T-830/6TA-830 EMISSIONS CERTIFED ENGINE, S/N JEE0036501 & AFTER (03) - FUEL SYSTEM

1

J897331

SUPPORT

HEAD - fuel filter

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID, filter head

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID, adapter

1шт.

5

J903293

JAM NUT

- hex, special, 16 mm - 2.0

1шт.

6

J925955

ADAPTER,M16 x 1.5 x M16 x 1.5

- fuel filter

1шт.

7

J925274

FILTER, FUEL

FILTER - fuel, primary

1шт.

8

J903640

FILTER, FUEL

FILTER - fuel, secondary

1шт.

9

J918873

FUEL TUBE,8 mm OD x 531.9, 92.9 mm L

TUBE - supply, fuel

1шт.

10

J914711

CLIP

CLAMP - P-type

1шт.

11

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

12

J911446

BANJO BOLT,M12 x 1.5 x 24mm

BOLT, BANJO, M12 x 1.5 x 24

1шт.

13

J905860

BANJO BOLT

BOLT ASSEMBLY - banjo hex, special

1шт.

14

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm

4шт.

15

J924725

BANJO BOLT,M14 x 1.5 x 26mm

BOLT - banjo connector

1шт.

16

J925709

PUMP

- fuel transfer, see J926764 repair kit below

1шт.

17

J931348

GASKET

- mounting, fuel transfer pump, replaces J923054 gasket

1шт.

18

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

19

J918537

FUEL TUBE,8 mm OD x 278.9 mm L

TUBE - supply, used with Ref. 32, 33 and 34, if used

1шт.

19a

J918539

FUEL TUBE,8 mm OD x 320.7 mm L

TUBE - supply, if used

1шт.

20

J918191

PACKING RING

WASHER - sealing, special, 12 x 18 x 1 mm

2шт.

21

J916361

BANJO BOLT

BOLT - banjo connector, 12 - 1.5 x 24 mm

1шт.

22

J911447

CONNECTOR, ELEC

CONNECTOR - banjo, fuel return

1шт.

23

J912886

VALVE

- overflow, see Ref. 6 Figure 3-20, or Ref. 6 Figure 3-24

1шт.

J926764

GASKET KIT

KIT - transfer pump repair, Includes: Ref. 25 - 31

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

2шт.

26

NSS

NOT SOLD SEPARAT

GASKET - check valve, not shown

2шт.

27

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

28

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

2шт.

29

NSS

NOT SOLD SEPARAT

O-RING - seal, not shown

1шт.

30

J931348

GASKET

- mounting, fuel transfer pump, replaces J923054 gasket

2шт.

31

NSS

NOT SOLD SEPARAT

VALVE - check, not shown

2шт.

32

J914037

BANJO BOLT

SCREW - banjo connector, if used

1шт.

33

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

Headless, if used Hex Soc, 1/4"-18

1шт.

34

J918192

PACKING RING,14mm ID x 20mm OD x 1mm Thk

WASHER - sealing, special, 14 x 20 x 1 mm, if used

2шт.
