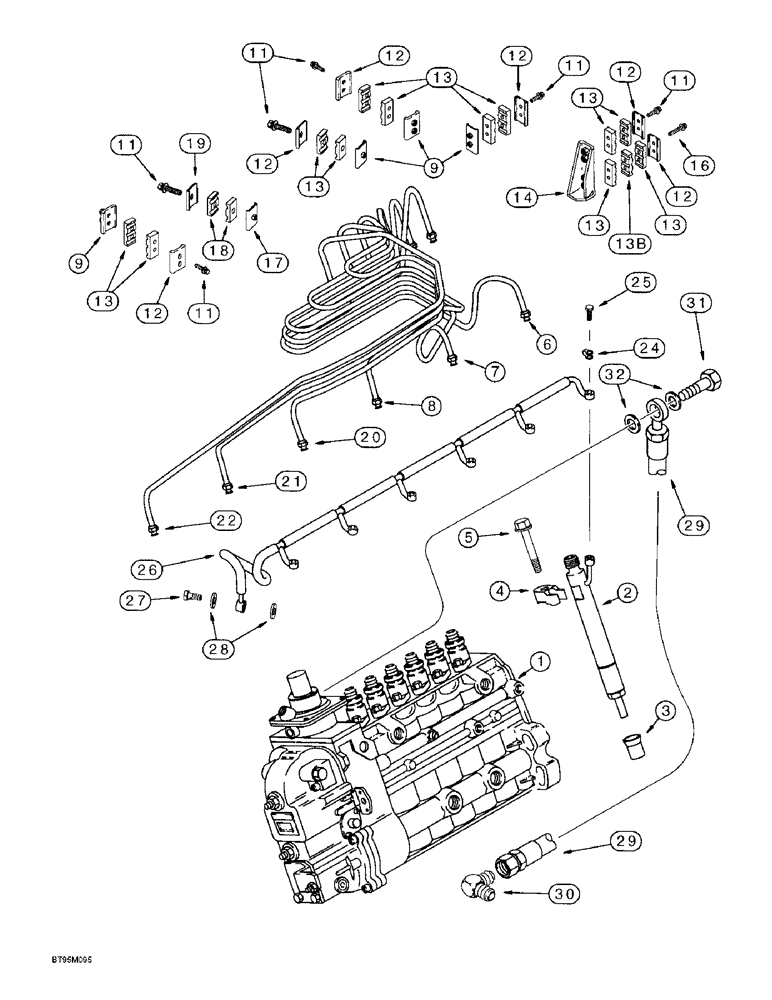

Запчасти Case IH 9310 (3-008) - FUEL INJECTION SYSTEM, 6T-830 EMISSIONS CERTIFIED ENGINE, 9310 TRACTOR ONLY, S/N JEE0036501 & AFTER (03) - FUEL SYSTEM

1

J926880

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, parts list Figure 3-24

1шт.

1

JR926880

REMAN-INJECTION PUMP

Remanufactured Injection Pump

1шт.

1

JC926880

CORE-INJECTION PUMP

Return Part Number, Injection Pump

1шт.

2

J930525

INJECTOR ASSY.

INJECTOR ASSEMBLY - fuel, parts list Figure 3-28

6шт.

2

JR930525

REMAN-FUEL INJECTOR

Remanufactured Injection Nozzle

6шт.

2

JC930525

CORE-FUEL INJECTOR

Return Part Number, Injection Nozzle

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

SLEEVE - injector, sealing

6шт.

4

J910279

CLAMP

- fuel injector

6шт.

5

J922018

FLANGE BOLT

BOLT - heavy hex flange, 8 - 1.25 x 80 mm, class 12.9

6шт.

6

J930442

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

7

J930443

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

8

J930444

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

TUBE - fuel injector, No. 3 cylinder

1шт.

9

J917716

BRACE

BRACKET - fuel tube, supply

1шт.

11

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

5шт.

12

J904519

SUPPORT

BRACE - tube retaining

3шт.

13

J917747

CLAMP

- fuel tube

6шт.

13b

J917748

CLAMP

- fuel tube

1шт.

14

J917777

BRACE

- fuel tube

2шт.

16

J920855

CAPTIVE WASHER SCREW

BOLT - hex, captive washer, special, 5 - 0.8 x 35 mm

2шт.

17

J917717

BRACE

BRACKET - fuel tube

1шт.

18

J917746

CLAMP

- fuel tube

2шт.

19

J904711

SUPPORT

BRACKET - fuel tube

1шт.

20

J931356

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

This Injection Line is for a Non After Cooled Engine.

1шт.

20

J930358

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 927.5 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

This Injection Line is for a 6TA-830 After Cooled Engine.

1шт.

21

J930446

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

TUBE - fuel injector, No. 5 cylinder

1шт.

22

J930447

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 740 mm L

TUBE - fuel injector, No. 6 cylinder

1шт.

24

J903380

SEAL

- connector

6шт.

25

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

6шт.

26

J920595

TUBE ASSY.

MANIFOLD - fuel drain

1шт.

27

J924726

BANJO BOLT

VALVE - check

1шт.

28

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

- sealing, banjo fitting

2шт.

29

J916779

FUEL HOSE,508.00 mm

Cylinder Block To Injection Pump 508.00 mm

1шт.

30

222-762

ELBOW,90 Degree, 7/16"-20, 45 Degree Fl x 1/8" NPT

90º, 7/16-20 45 degree flare x 1/8 inch PT

1шт.

31

J918002

BANJO BOLT

SCREW - banjo, hose to injection pump

1шт.

32

J918190

SEALING WASHER,10mm ID x 15.5mm OD x 1mm Thk

WASHER - sealing, special, 10 x 15.5 x 1 mm

2шт.
