Запчасти Case IH 9310 (2-110) - EXHAUST SYSTEM (02) - ENGINE

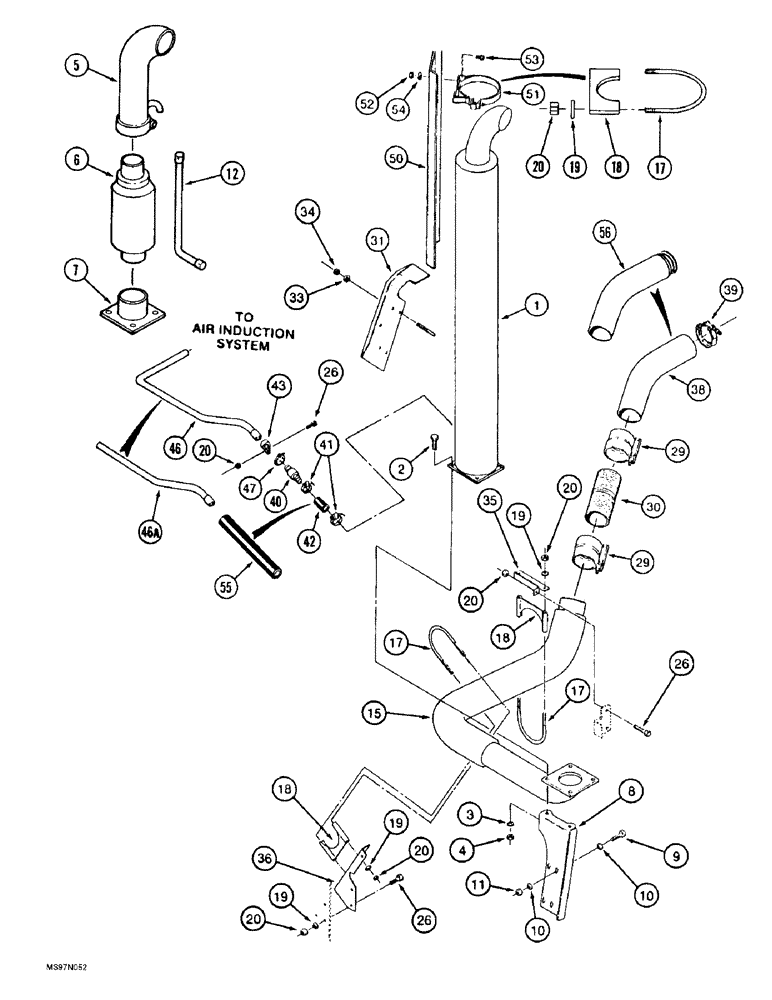

Схема запчастей Case IH 9310 - (2-110) - EXHAUST SYSTEM (02) - ENGINE
3
20
18
50
17
33
20
53
8
56
4
5
19
17
47
10
17
42
10
19
20
40
29
36
35
26
20
18
7
11
30
46
1
15
54
41
34
6
20
39
43
12
29
26
2
20
19
9
31
19
52
38
26
46a
51
55
18

Артикул

Название

Примечание

Количество

1

90-7469T1

MUFFLER

- exhaust, Serial Range: -JEE0036501

1шт.

1

90-8297T1

MUFFLER

- exhaust, Start Serial: JEE0036501

1шт.

2

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

4шт.

3

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

5

90-8346T1

INJECTION PIPE

EJECTOR - muffler, spark arrestor option

1шт.

6

90-8347T1

MUFFLER

- exhaust, spark arrestor option

1шт.

7

90-8348T1

PIPE, EXHAUST SYSTEM

STACK - exhaust, spark arrestor option

1шт.

8

90-7756T1

ANCHOR

BRACKET - muffler mounting

1шт.

9

426-716

BOLT,Hex, 7/16" - 14 x 1", Gr 8

- hex, 7/16 NC x 1 inch, grade 8

4шт.

10

495-21050

WASHER,7/16"

- flat, 1/2 x 1-1/4 x 5/64 inch

8шт.

11

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex, self-locking, 7/16 inch NC

4шт.

12

90-8359T2

TUBE,1.5" OD x 24.78", 6.94" L

- aspirator, spark arrestor option

1шт.

15

90-7874T1

EXHAUST SYSTEM PIPE,4 mm ID x 5 mm OD x 31.88, 30.59 mm L

TUBE - exhaust, at muffler, insulated

1шт.

17

32-322T1

U-BOLT,3/8" - 16 x 6.62"

- 3/8 inch NC

2шт.

18

32-323T1

STIRRUP

SADDLE - clamp, U-bolt

2шт.

19

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch) 3/8"

8шт.

20

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

7шт.

26

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3шт.

29

90-8319T1

CLAMP

- sleeve-type, includes hardware, exhaust tube to flex tubing

2шт.

30

90-7875T1

EXHAUST SYSTEM PIPE,4" ID x 4.25" OD x 7.3" L

TUBE - flex, exhaust

1шт.

31

90-6746T3

SHIELD

- heat

1шт.

32

L105791

U-BOLT

- special

2шт.

33

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

34

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

35

90-7876T1

BRACKET

- clamp mounting, at flywheel

1шт.

36

90-7773T1

BRACKET

- clamp mounting

1шт.

38

90-6227T1

TUBE,13.6 mm L

- exhaust, turbocharger to flex tube, Serial Range: -JEE0036501

1шт.

39

A170807

CLAMP,102mm ID

retaining, special, at turbocharger

1шт.

40

90-7640T1

VALVE

- check, aspirator tube, replaces A190699 valve, Serial Range: -JEE0036501

1шт.

41

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

2шт.

42

1-4571

HOSE

- 114 mm (4-1/2 inch) long, cut from 1-4482 bulk hose, see below, Serial Range: -JEE0036501

1шт.

43

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

P-type 1 1/2", Insul, 3/8" Bolt

1шт.

46

90-7800T1

TUBE,1.5" OD

- aspirator, Serial Range: -JEE0036501

1шт.

46a

90-8360T1

TUBE,1.5" OD

- aspirator, Start Serial: JEE0036501

1шт.

47

31-2434T1

CLAMP

- adjustable, tube

1шт.

50

90-8393T1

GUARD

SHIELD - heat, exhaust pipe

1шт.

Used with ROPS units only.

1шт.

51

A64803

CLAMP

- shield, no longer used, order 32-322T1 U-Bolt, Ref. 17 and 32-323T1 Saddle, Ref. 18, Serial Range: -JEE0036501

2шт.

Used with ROPS units only.

1шт.

52

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

Used with ROPS units only.

1шт.

53

426-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 8

- hex, 5/16 NC x 1/2 inch, grade 8

4шт.

Used with ROPS units only.

1шт.

54

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

Used with ROPS units only.

1шт.

55

31-1149

HOSE - 254 mm (10 inch) long, cut from 1-4482 bulk hose, see below, Start Serial: JEE0036501

1шт.

56

90-8317T1

EXHAUST SYSTEM PIPE,13.58 mm L

TUBE - exhaust, replaced by 90-8374T1 tube, Start Serial: JEE0036501

1шт.

56

90-8374T1

EXHAUST SYSTEM PIPE,4" OD

TUBE - exhaust, replaces 90-8317T1 tube

1шт.

1-4482

LARGE HOSE

HOSE - bulk, 3048 mm (120 inch) long, sold by the foot

1шт.
