Запчасти Case IH 9310 (2-104) - AIR INDUCTION SYSTEM, P.I.N. JEE0036501 AND AFTER (02) - ENGINE

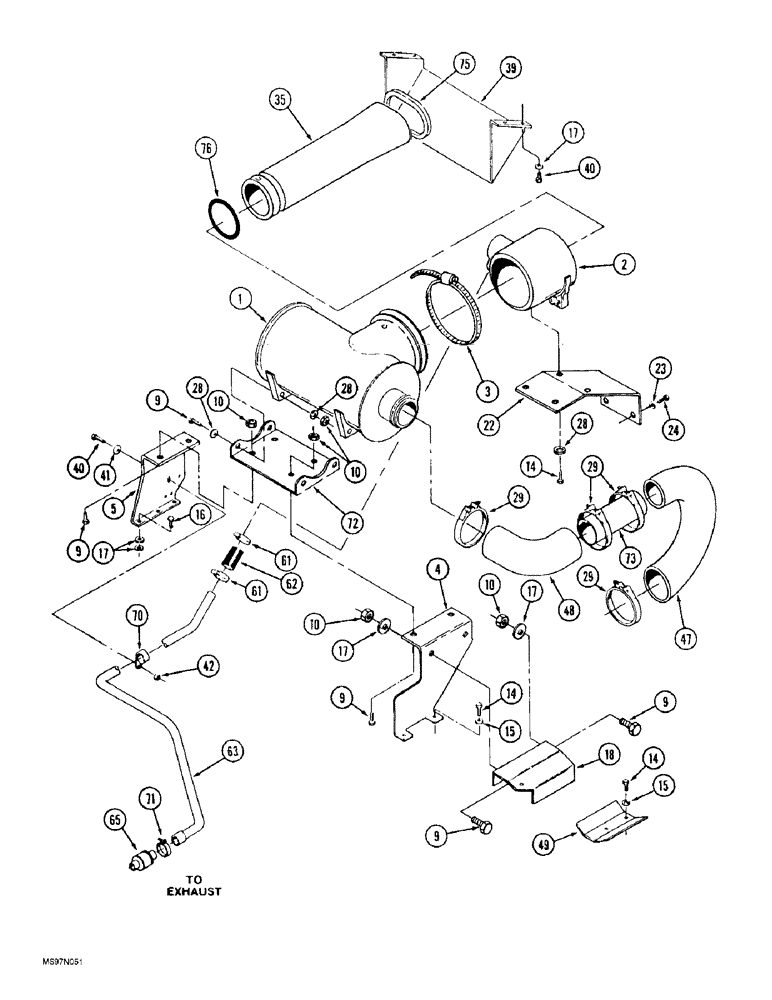

Схема запчастей Case IH 9310 - (2-104) - AIR INDUCTION SYSTEM, P.I.N. JEE0036501 AND AFTER (02) - ENGINE
14
40
4
63
71
40
61
29
8
9
18
17
10
24
10
17
72
14
14
2
61
29
65
17
41
9
75
16
3
17
1
10
22
15
9
23
42
35
28
29
47
48
28
76
39
73
15
9
70
10
62
5
49

Артикул

Название

Примечание

Количество

1

90-8336T1

AIR CLEANER

CLEANER ASSEMBLY - air, parts list Figure 2-106

1шт.

2

90-8337T1

PRECLEANER

ASSEMBLY - air cleaner, see Figure 2-106 for assembly

1шт.

3

214-14136

HOSE CLAMP,#136, 8.12" - 9", Type F Worm

CLAMP - adj, 8-1/8 - 9 inch dia

1шт.

4

90-8044T1

BRACKET

- mounting, air cleaner

1шт.

5

90-8043T1

BRACKET

- mounting, air cleaner

1шт.

9

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, grade 8

10шт.

10

425-106

NUT,3/8"-16, Cl 5

11шт.

14

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.

15

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

16

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

3шт.

17

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

10шт.

18

90-8049T1

SHIELD

- heat

1шт.

22

90-8046T1

BRACKET

- mounting, air cleaner

1шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

24

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

4шт.

28

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

10шт.

29

214-3288

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm, W/ Liner

CLAMP - adj, 4-3/4 - 5-5/8 inch dia

3шт.

35

90-8265T1

AIR INTAKE TUBE,25.72 mm L

TUBE - intake

1шт.

39

90-7445T2

BAFFLE

- air

1шт.

40

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

5шт.

41

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

3шт.

42

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

47

90-7740T1

DUCT

Air induction

1шт.

48

L74362

ELBOW

- hose

1шт.

49

90-6119T3

SHIELD

- heat

1шт.

61

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

2шт.

62

1-4571

HOSE

- 114 mm (4-1/2 inch) long, cut from 1-4482 bulk hose, see below

1шт.

63

90-8327T2

TUBE,1.5" OD

- aspirator

1шт.

70

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

P-type 1 1/4", Insul, 3/8" Bolt

1шт.

71

31-2434T1

CLAMP

- adjustable

1шт.

72

90-8045T1

CHANNEL

- mount

1шт.

73

90-7816T1

TUBE

- weld

1шт.

75

90-8344T1

SEAL - 800 mm (31-1/2 inch) long, cut from F43117X bulk seal

1шт.

76

90-8332T1

SEAL

O-RING - tube intake

1шт.

1-4482

LARGE HOSE

HOSE - bulk, 3048 mm (120 inch) long, sold by the foot

1шт.

F43117X

SEAL

- formed rubber, adhesive-backed, bulk, 15 (9/16) x 31 (1-3/16) x 30480 mm (1200 inch) long

1шт.

Выбрано товаров: 36
