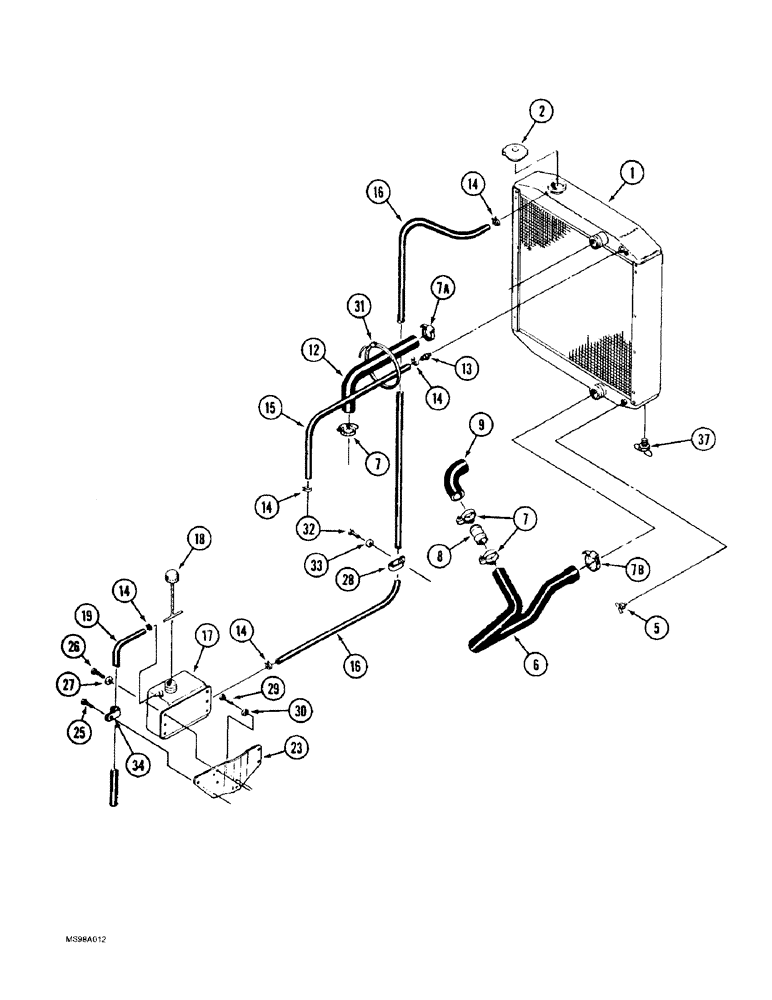

Запчасти Case IH 9310 (2-100) - RADIATOR AND ATTACHING PARTS (02) - ENGINE

1

A190762

RADIATOR

ASSEMBLY - cooling system, Includes: Ref. 2, Serial Range: -JEE0036501

1шт.

1

131751A2

RADIATOR

ASSEMBLY - cooling system, Includes: Ref. 2, Start Serial: JEE0036501

1шт.

2

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi

1шт.

5

217-92

COCK

VALVE - drain, 1/4 inch PT, radiator, Serial Range: -JEE0036501

1шт.

6

90-7345T2

RADIATOR HOSE,2.00" ID, 2.50" ID x 18.58", SAE J20, SAE 20R4

2.00" ID, 2.50" ID x 18.58", SAE J20, SAE 20R4, Serial Range: -JEE0036501

1шт.

6

90-8053T1

RADIATOR HOSE,2.00" ID, 2.63" ID x 18.82", SAE J20, SAE 20R4

2.00" ID, 2.63" ID x 18.82", SAE J20, SAE 20R4, Start Serial: JEE0036501

1шт.

7

70-5521T1

COLLAR CLAMP

CLAMP - adj, 2 - 3 inch dia

5шт.

7a

L115548

CLAMP,57.15mm - 79.38mm

- bottom

1шт.

7b

L115549

CLAMP,69.85mm - 92.08mm

- top

1шт.

8

L117015

TUBE,50.8 mm OD x 77 mm L

- coolant

1шт.

9

J920762

ELBOW

HOSE - 79 mm (3-1/8 inch), water

1шт.

12

90-7344T1

RADIATOR HOSE,2.25" ID x 15.64", SAE J20, SAE 20R4

2.25" ID x 15.64", SAE J20, SAE 20R4, Serial Range: -JEE0036501

1шт.

12

90-8054T1

RADIATOR HOSE,2.25" ID x 15.81", SAE J20, SAE 20R4

2.25" ID x 15.81", SAE J20, SAE 20R4, Start Serial: JEE0036501

1шт.

13

220-3

FITTING

ADAPTER - straight, 3/8 barb end x 1/4 inch PT

1шт.

14

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adj, 1/4 - 5/8 inch dia

5шт.

15

32-203

HOSE

- 584 mm (23 inch) long, cut from 32-12X bulk hose, see below

1шт.

16

A172261

HOSE,7.92mm ID x 1820mm L, SAE 30R6

- Cut from L126767 bulk hose, See below, Coolant recovery 7.50 mm ID, 8.30 mm ID x 1820.00 mm, SAE 30R6 per J30, Serial Range: -JEE0036501

1шт.

16

31-3123

HOSE, BULK

HOSE - 1854 mm (73 inch) long, cut from L126767 bulk hose, see below, Start Serial: JEE0036501

1шт.

17

A184395

RESERVOIR

BOTTLE - coolant recovery

1шт.

18

1547924C1

CAP

- recovery bottle

1шт.

19

31-2943

HOSE

- 305 mm (12 inch) long, see below

1шт.

23

90-7333T2

BRACKET

- mounting, overflow tank

1шт.

25

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

- hex, full threads, 10 - 1.5 x 35 mm

1шт.

26

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

4шт.

27

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

28

31-1070

CLAMP,5/8", 3/8" Bolt, Double

- extended P-type

2шт.

29

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

2шт.

30

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

31

19-135

CABLE TIE

STRAP - tie, nylon

2шт.

32

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

2шт.

33

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

2шт.

34

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

1шт.

37

217-92

COCK

VALVE - drain, 1/4 inch PT, replaces H434809 valve, Start Serial: JEE0036501

1шт.

32-12X

LARGE HOSE

HOSE - bulk, 10 (3/8) ID x 6096 mm (240 inch) long

1шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

1шт.
